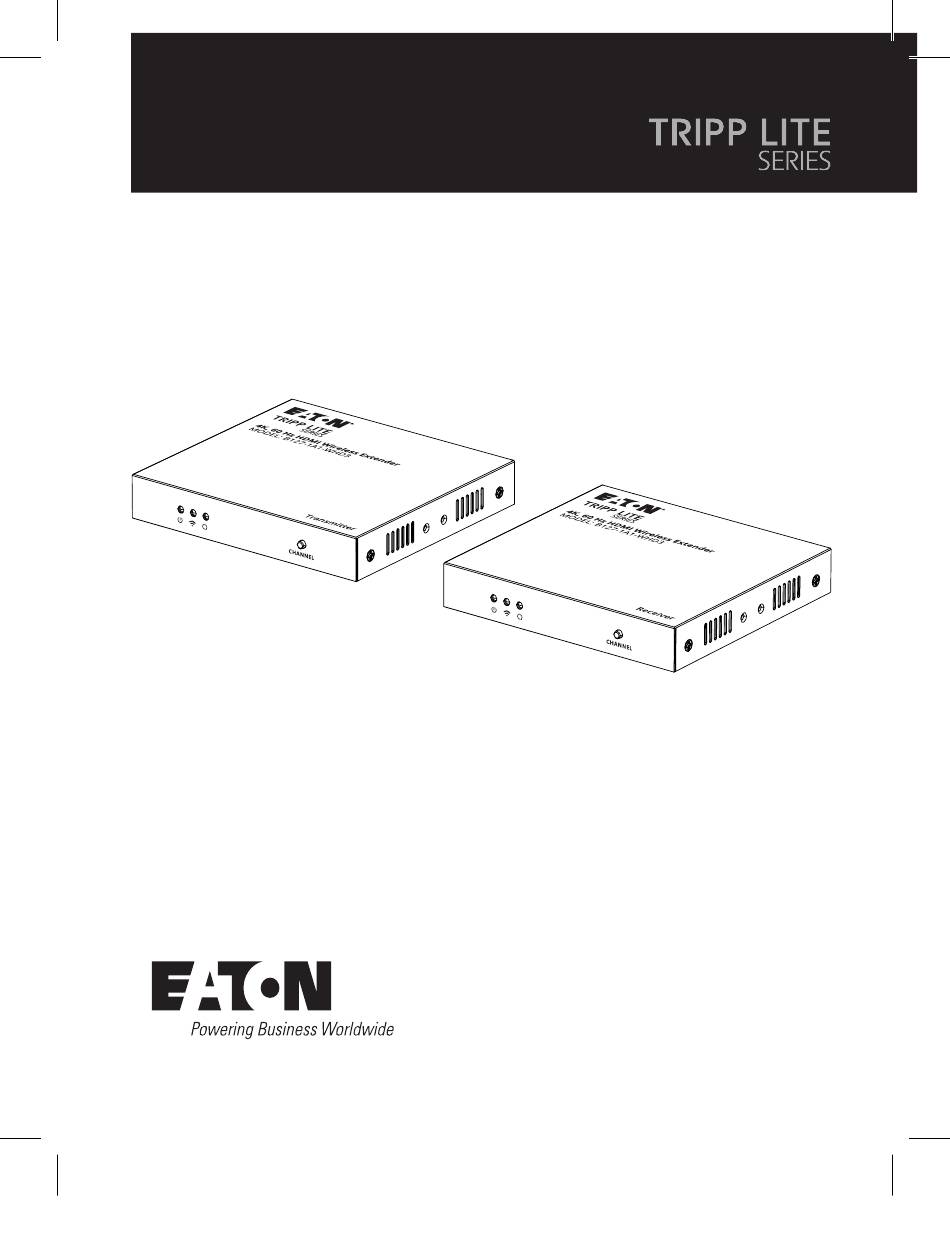

Owner's Manual
4K 60 Hz HDMI over Wireless
Extender Kit with IR
Este manual está disponible en español en la
página de Eaton: Tripplite.Eaton.com/support
Ce manuel est disponible en français sur le site
Web de Eaton : Tripplite.Eaton.com/support
Dieses Handbuch ist in deutscher Sprache auf der
Eaton-Website verfügbar: Tripplite.Eaton.com/support
Questo manuale è disponibile in italiano sul sito
web di Eaton: Tripplite.Eaton.com/support
10-176-93-4991_revA.indd 1
10-176-93-4991_revA.indd 1
B127-1A1-WHD3
Purchased product
may differ from image.
12/12/2023 2:26:17 PM
12/12/2023 2:26:17 PM
1
Advertisement
Table of Contents
Related Manuals for Eaton TRIPP LITE B127-1A1-WHD3
Summary of Contents for Eaton TRIPP LITE B127-1A1-WHD3
- Page 1 Este manual está disponible en español en la página de Eaton: Tripplite.Eaton.com/support Ce manuel est disponible en français sur le site Purchased product Web de Eaton : Tripplite.Eaton.com/support may differ from image. Dieses Handbuch ist in deutscher Sprache auf der Eaton-Website verfügbar: Tripplite.Eaton.com/support Questo manuale è...
-
Page 2: Important Safety Instructions
Important Safety Instructions • Do not expose this device to rain or place it near water. Any liquid that goes into the device may cause a failure, fire, or electric shock. • Never insert anything metallic into the open parts of this device. This may cause a danger of electric shock. -
Page 3: Package Contents
Package Contents 5V 2A power Transmitter x1 Receiver x1 adapter x2 IR receiver extension IR blaster extension cable x1 cable x1 Antenna x4 Mounting ear x4 Screw x10 Grounding screw x2 User Documentation x1 Installation Requirements • HDMI source device (DVD, game console, PC, etc.) •... -
Page 4: Product Description
Product Description Transmitter (TX) 1 1 2 2 3 3 10-176-93-4991_revA.indd 4 10-176-93-4991_revA.indd 4 12/12/2023 2:26:18 PM 12/12/2023 2:26:18 PM... - Page 5 Product Description Power indicator Turns blue when the power is turned on WiFi indicator Slow flash: waiting for connection Steady on: connection successful Quick flash: SSID Pairing mode Signal indicator Light off: no HDMI signal Steady on: HDMI signal is transmitting Quick flash: restore factory settings Channel switch button Press to switch channels...
- Page 6 Product Description Receiver (RX) 1 1 2 2 3 3 10-176-93-4991_revA.indd 6 10-176-93-4991_revA.indd 6 12/12/2023 2:26:18 PM 12/12/2023 2:26:18 PM...
- Page 7 Product Description Power indicator Turns blue when the power is turned on WiFi indicator Slow flash: waiting for connection Steady on: connection successful Quick flash: SSID Pairing mode Signal indicator Light off: no HDMI signal Steady on: HDMI signal is transmitting Quick flash: restore factory settings Channel switch button After connecting with TX, press to switch channels...
-
Page 8: Installation
Installation 1. Connection Diagram One to one connection Video Source HDMI IN HDMI OUT HDMI Display HDMI Display 2. Connection Instructions 1. Connect the source device to the HDMI IN port of the transmitter with an HDMI cable, and connect the HDMI OUT port of the receiver to the display device with another HDMI cable. - Page 9 Installation 3. SSID Pairing 1. Enter the SSID pairing mode by holding the transmitter and receiver's channel switch buttons for five seconds. Both WiFi connection indicators will flash quickly in yellow. 2. When the SSID pairing is successful, the WiFi indicators on the transmitter and receiver will change from quick flashing to slow flashing or steady on.
- Page 10 Q: Why the receiver and transmitter cannot be connected, showing "Search ipcolor Tx..." on the screen? A: 1) Move transmitter and receiver closer. 2) Re-power the transmitter or receiver. 3) Re-pair the transmitter and receiver. Q: Why is the Wi-Fi indicator steady on. but showing "Please check the TX input signal"? A: 1) Make sure the TX has HDMI input and that the resolution is within the specified range.
-
Page 11: Specifications
Specifications Power Supply Voltage/Current DC 5V/2A Power consumption TX ≤ 6W, RX ≤ 4W HDMI Performance HDMI version HDMI 2.0 and Interface HDCP version HDCP 1.4/HDCP 2.2 Maximum transfer rate 18 Gbps Resolution supported 3840x2160@24/30/50/60 Hz, 1080p@50/60 Hz, 720P@50/60 Hz, 1920x1200, 2560x1440, 2560x1600 Input and output 0.7~1.2Vp-p(TMDS) - Page 12 Specifications Operating Operating temperature -4~140°F (-20~60°C) Environment Storage temperature -22~158°F (-30~70°C) Humidity (non-condensing) 0~90% RH Physical Properties Dimensions [W x L x H] TX / RX: 4.5 x 5 x 0.8 in. (115 x 125 x 20.6 mm) Color Black Material Iron Net weight...
-
Page 13: Warranty And Product Registration
Product Registration Visit Tripplite.Eaton.com/warranty today to register your new product. You’ll be automatically entered into a drawing for a chance to win a FREE Eaton Tripp Lite series product!* * No purchase necessary. Void where prohibited. Some restrictions apply. - Page 14 • Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country) • Send the new equipment back for recycling when this ultimately becomes waste Eaton has a policy of continuous improvement. Specifications are subject to change without notice. 10-176-93-4991_revA.indd 14 10-176-93-4991_revA.indd 14...
- Page 15 10-176-93-4991_revA.indd 15 10-176-93-4991_revA.indd 15 12/12/2023 2:26:18 PM 12/12/2023 2:26:18 PM...
- Page 16 Eaton 1000 Eaton Boulevard Cleveland, OH 44122 United States Eaton.com © 2023 Eaton Eaton is a registered All Rights Reserved trademark. Publication No. 23-10-176 / 93-4991_revA All trademarks are property December 2023 of their respective owners. 10-176-93-4991_revA.indd 16 10-176-93-4991_revA.indd 16...
