FEATURES
•
Total start-stop feature allows flow to activate
electric motor
•
Built-in unloader and injector
•
High-resistance coated manifold
•
New generation seal package
•
New dust protection chamber
•
Solid ceramic plungers
•
New oversized plunger guide
•
New optimized inlet and outlet valves
•
New oil seal
•
Flanged for direct couple to Gasoline engines
(SAE J609)
•
Available in left-handed (L) version
SPECIFICATIONS
Pump Model
Maximum Volume
Maximum Discharge Pressure
Horsepower
Maximum Pump Speed
Maximum Inlet Pressure
Max. Inlet Vacuum
Plunger Bore (in / mm)
Plunger Stroke (in / mm)
Oil Capacity
Maximum Fluid Temperature
Inlet Port Thread
Discharge Port Thread
Shaft Diameter
Weight
Dimensions - Nominal
General Pump
is a member of
the Interpump Group

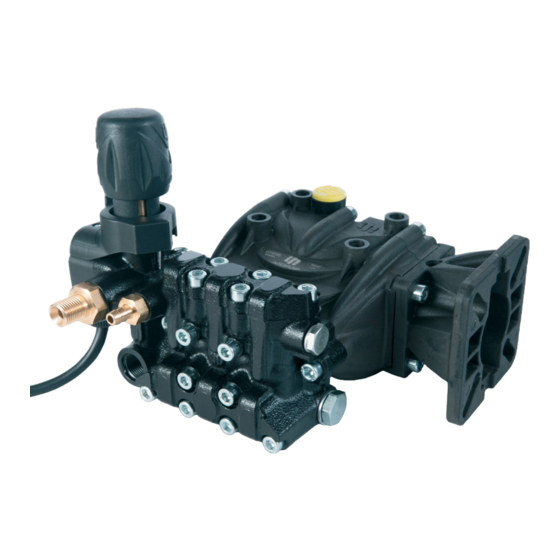

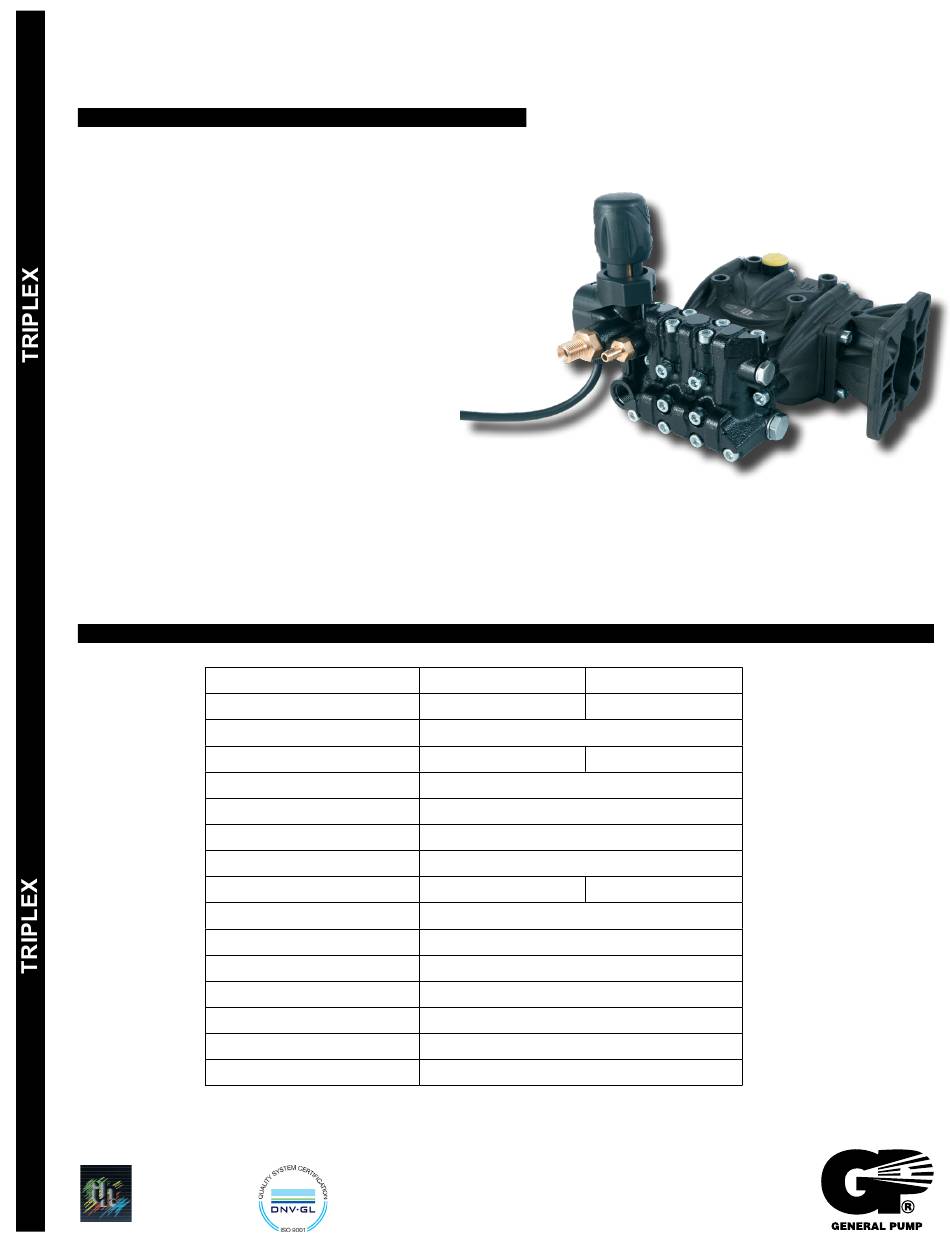

Triplex Plunger Pump, Gas Flange, Total Start-Stop Feature
EM12100G6UITS(L)
*140°F permissible for short periods, Maximum seal life obtained at 104°F Max. Exceeding the
maximum rating may be allowable under certain conditions; contact your GP Representative.
Page 1 of 9
EM Series 83
EM12115G6UITS(L)
2.91 GPM
3,000 PSI
8.97 GHP
3400 RPM
125 PSI
Flooded
.472 in. / 12 mm
.394 in./10.0 mm
.453 in./11.5 mm
4.7 oz.
140° F*
1/4" BSPP-F
1/8" BSPP-M
3/4" Hollow
7.7 lbs.
6.2"W x 5.5"H x 6.4"L
3.17 GPM
9.77 GHP
Ref 310215 Rev. C
06-23
