- Page 1 Controller DMX SDC-6 DMX Controller...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 18.03.2024, ID: 390953 (V2)
-
Page 3: Table Of Contents
Table of contents Table of contents General information..........................5 1.1 Symbols and signal words....................... 5 Safety instructions............................. 7 Features............................... 10 Starting up..............................11 Connections and controls........................15 Technical specifications........................17 Plug and connection assignments....................19 Protecting the environment......................20 Controller DMX SDC-6 DMX Controller... - Page 4 Controller DMX SDC-6 DMX Controller...
-
Page 5: General Information
Our products and documentation are subject to a process of continuous development. They are therefore subject to change. Please refer to the latest version of the documentation, which is ready for download under www.thomann.de. 1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document. - Page 6 General information Warning signs Type of danger Warning – danger zone. Controller DMX SDC-6 DMX Controller...
-
Page 7: Safety Instructions
Safety instructions Safety instructions Intended use This device is used to control spotlights, dimmers, lighting effects equipment or other DMX- controlled devices. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. - Page 8 Safety instructions NOTICE! Damage to the device if operated in unsuitable ambient conditions! The device can be damaged if it is operated in unsuitable ambient conditions. Only operate the device indoors within the ambient conditions specified in the “Technical specifications” chapter of this user manual. Avoid operating it in environments with direct sun‐ light, heavy dirt and strong vibrations.
- Page 9 Safety instructions NOTICE! Possible staining due to plasticiser in rubber feet! The plasticiser contained in the rubber feet of this product may react with the coating of the floor and cause permanent dark stains after some time. If necessary, use a suitable mat or felt slide to prevent direct contact between the device’s rubber feet and the floor. Controller DMX SDC-6 DMX Controller...
-
Page 10: Features

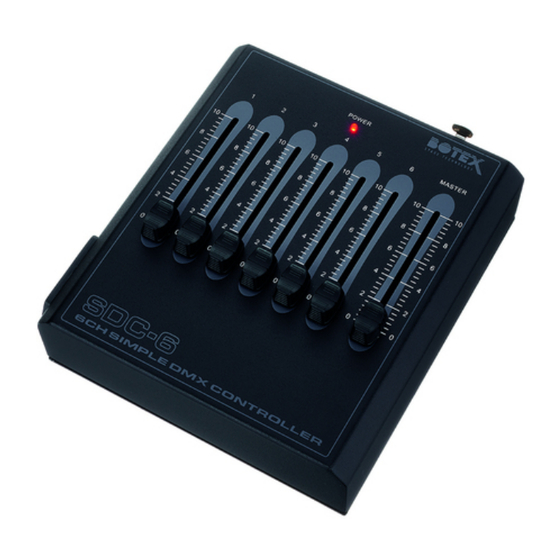

Features Features Special features of this DMX controller: 6 channel faders Master fader Compact design Simple operation Power supply by 9 V battery (not included) or the supplied 9 V external power supply Controller DMX SDC-6 DMX Controller... -
Page 11: Starting Up
Starting up Starting up Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 12 Starting up Changing the battery NOTICE! Risk of fire due to incorrect polarity! Incorrectly inserted batteries may cause fires and destroy the device and the bat‐ teries. Observe the markings on the batteries and on the device. Ensure that proper polarity is observed when inserting batteries. NOTICE! Possible damage due to leaking batteries! Batteries can leak and cause permanent damage to the device.
- Page 13 Starting up NOTICE! Data transfer errors due to improper wiring! If the DMX connections are wired incorrectly, this can cause errors during the data transfer. Do not connect the DMX input and output to audio devices, e.g. mixers or ampli‐ fiers.
- Page 14 Starting up Connections in DMX mode Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device. Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain.
-
Page 15: Connections And Controls
Connections and controls Connections and controls ö & PUSH Controller DMX SDC-6 DMX Controller... - Page 16 Connections and controls 1 [1]…[6] | Channel faders 1 to 6. The channel faders are used to control DMX channels 1…6 individually. 2 [POWER] | Power indicator 3 [MASTER] | Master fader. The master fader serves as the sum controller for the six individual channels. 4 [DMX OUT] | DMX output, designed as XLR panel socket, 3-pin 5 [ON/OFF] | Main switch.
-
Page 17: Technical Specifications
Technical specifications Technical specifications Control protocols DMX 512 Number of DMX channels Input connections Power supply Socket for power adapter Output connections DMX control XLR panel socket, 3-pin Power supply External power adapter, 100 - 240 V 50/60 Hz Operating voltage / 100 mA, centre positive Battery 9-V block battery 6LR61 or 6LF22... - Page 18 Technical specifications Further information External storage option Type Compact control unit Preset function DMX universes Ethernet Controller DMX SDC-6 DMX Controller...
-
Page 19: Plug And Connection Assignments
Plug and connection assignments Plug and connection assignments Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment so that a perfect light experience is guaranteed. Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or ‘just’... -
Page 20: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packing material Environmentally friendly materials have been chosen for the packaging. These materials can be sent for normal recycling. Ensure that plastic bags, packaging, etc. are disposed of in the proper manner. Do not dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 21 When disposing of the device, comply with the rules and regulations that apply in your country. You can also return your old device to Thomann GmbH at no charge. Check the current conditions on www.thomann.de.
- Page 22 Notes Controller DMX SDC-6 DMX Controller...
- Page 24 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
