Summary of Contents for KAICO OSSC 1.7

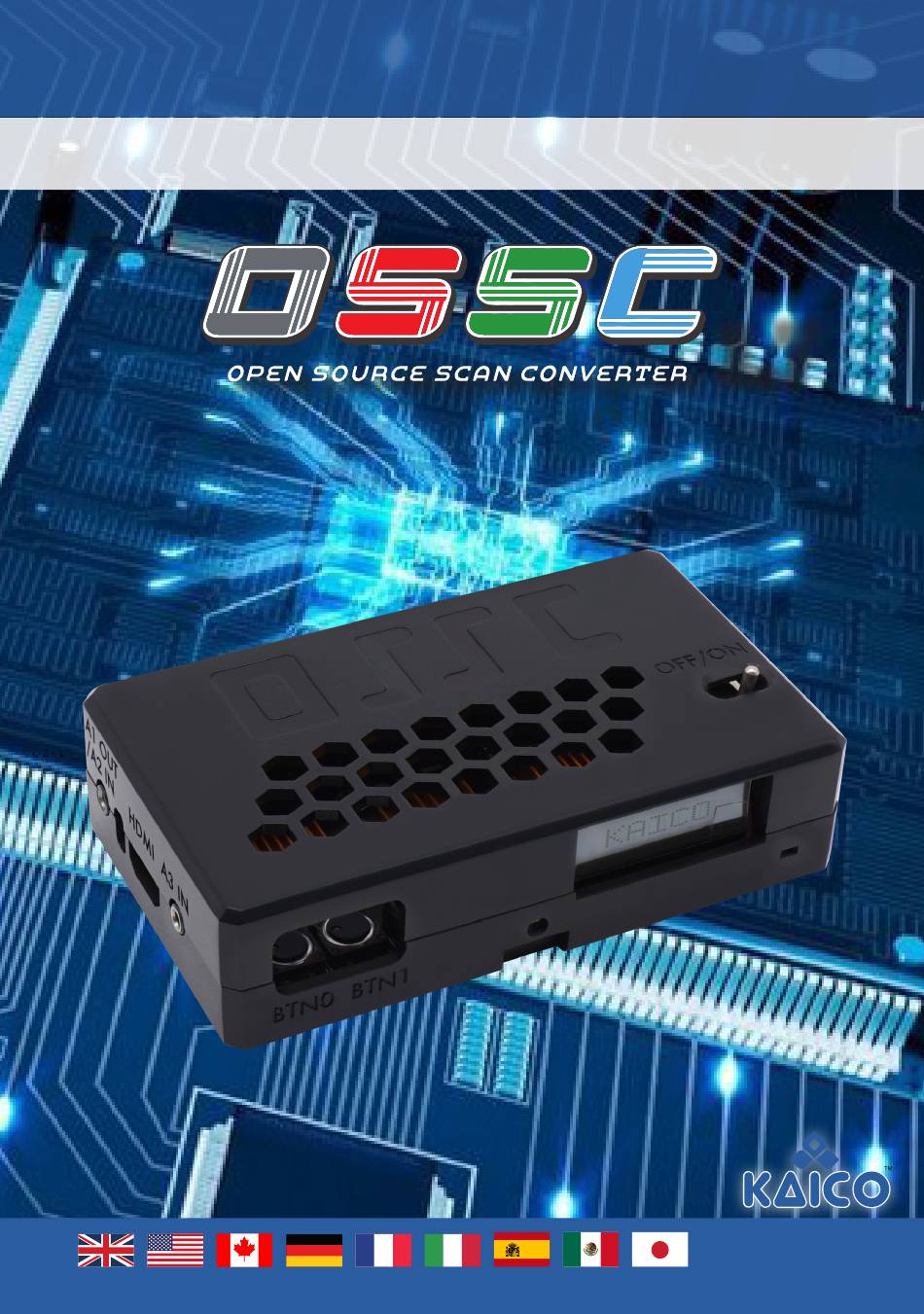

- Page 1 MULTI-LANGUAGE USER GUIDE http://junkerhq.net/xrgb/index.php?title=OSSC Official Wiki: Please refer to this Wiki for more information on specific console settings E D I T I O N...
-
Page 2: Table Of Contents
Audio Input and Output Firmware Updates Troubleshooting More Information Thank you for purchasing the Open Source Scan Converter (OSSC) from Kaico. Please take time to read through this short document before you start using the unit. OTHER LANGUAGES English German... -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION Please observe the following safety precautions when using your OSSC. Use the correct power supply: Keep away from fire or high heat sources: OSSC is designed to run with a 5 volt, 2.1 OSSC is not flammable but high temperatures, such x 5.5mm positive tip power supply unit as those from a fire or electric heater may melt the (PSU) supplying at least 1 amp of current. -
Page 4: Ossc Overview
OSSC OVERVIEW (REVISION UNITS) FRONT AND REAR VIEWS Power Switch BTN0 and BTN1 Status IR Sensor JTAG Connector Component Video SCART Input (AV1) Input (AV2) - Page 5 OSSC OVERVIEW (REVISION UNITS) LEFT AND RIGHT SIDE VIEWS Power Input VGA/D-Sub15(AV3) Audio In Video Out Via HDMI AV2 Audio In/ Audio Toggle AV1 Audio Out...
-
Page 6: Remote Control Layout
REMOTE CONTROL LAYOUT Select OSSC mode LCD Backlight Off/On Samp. Phase -/+ Scanline Type Linemault. Mode Scanline Mode Scanline Int. Menu On/Off Value -/+ Prev/next option Select Back Source Info AV2 - YPbPr AV2 - RGsB AV1 - RGBS AV3 - RGBHV AV1 - RGsB AV3 - RGBs AV1 - YPbPr... -
Page 7: Remote Control Features
INFO: REMOTE Displays extra information on video source processing. Top row shows current profile and current video mode preset. CONTROL Bottom row shows accurate timing data from FPGA: lines FEATURES per frame, p/i status, special processing (indicated by *) and cycles per frame (divide 27000000 to convert to Hz). 0-9: Selects AV source and input format. -
Page 8: Buttons, Connectors And External Controls
BUTTONS, CONNECTORS, AND EXTERNAL CONTROLS Please refer to pages 4 and 5 for the location Audio toggle Toggle between outputting audio of the following features on the OSSC. from AV1 or inputting and digitizing audio on AV2. Status LED’s AV3 audio in Standard 3.5mm stereo headphone plug type connector. -
Page 9: Connecting Your Ossc
CONNECTING OPTIONS YOUR OSSC Ensure the PSU is turned on at the wall, then power To access the OSSC options menu, press the Menu on your OSSC using the power switch. The LCD on on/off button on the remote. The LCD on the front the front of the unit should light up and display the of the unit will then change to menu mode, as current firmware version, as shown in the picture... -
Page 10: Scanlines And Line Multiplication Modes
SCANLINES LINE TRIPLE, QUADRUPLE AND Vintage games consoles such as the Sega MegaDrive QUINTUPLE and Nintendo NES used a special screen mode which resulted in alternating lines on a CRT display being left blank. Typically, when people in the retro- By default the OSSC takes in one Scanline and outputs gaming communities refer to ‘Scanlines’, they two, resulting in a lag free conversion of 240p to... -
Page 11: Interlace Video And Fine Tuning An Image
INTERLACE AUDIO INPUT VIDEO AND OUTPUT AND THE OSSC Digital audio output is standard on OSSC versions and can be added to earlier model OSSC’s by Certain retro consoles and computers (e.g. Sony installing an audio expansion board. PS2 and Nintendo Gamecube) output in interlace modes. -
Page 12: Troubleshooting
RGB and your SCART cable is wired for RGB MORE INFORMATION For more information on the OSSC, please refer to the Official Wiki at: http://junkerhq.net/xrgb/index.php?title=OSSC You can also contact Kaico directly using the information below: ® Web: www.kaicolabs.com Email: info@kaicolabs.com... - Page 13 KAICO LABS Unit 14 Elgar Business Centre | Moseley Road | Hallow Worcester | WR2 6NJ | United Kingdom E: info@kaicolabs.com | T: 44 (0)115 871 2427 | W: www.kaicolabs.com...
