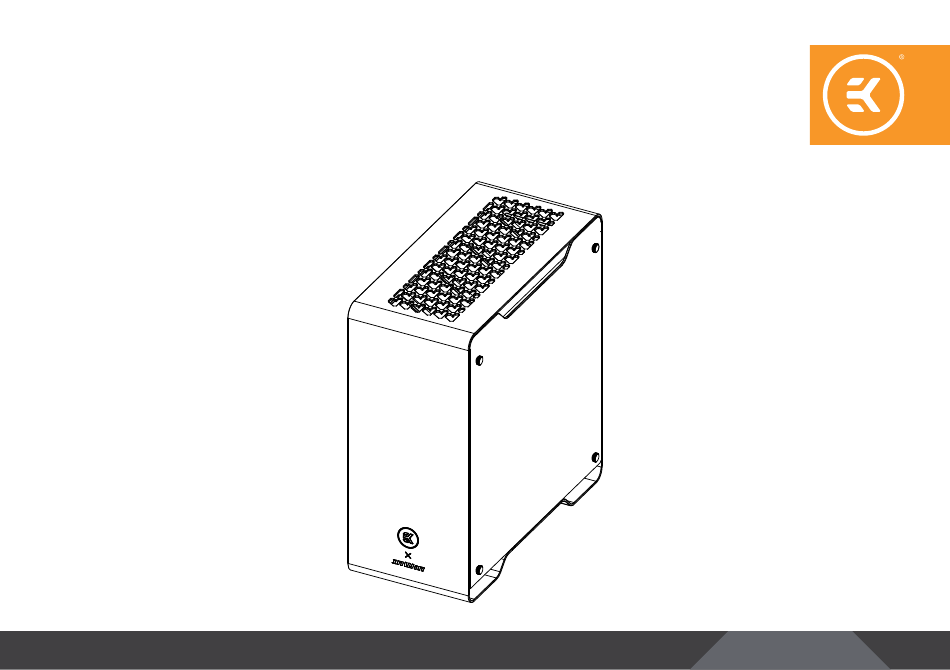

- Page 1 EK-Quantum InWin 977EK USER GUIDE...
- Page 2 Before you start using this product, please follow these basic guidelines: Carefully read the manual before beginning with the installation process.
-
Page 3: Table Of Contents
TABLE OF CONTENTS MAIN PARTS – EXPLODED VIEW DIMENSIONS MODELS TECHNICAL SPECIFICATIONS UNPACKING THE BOX BUTTONS TEMPERED GLASS SIDE PANELS REMOVAL REAR COVER REMOVAL MOTHERBOARD TRAY AND PSU BRACKET REMOVAL DUST FILTERS AND RADIATOR BRACKET REMOVAL MOTHERBOARD INSTALLATION POWER SUPPLY INSTALLATION GPU INSTALLATION HDD and SSD INSTALLATION RADIATORS SUPPORT... -
Page 4: Main Parts - Exploded View
MAIN PARTS – EXPLODED VIEW Position Part Name Front panel with Capacitive On/Off Button Tempered Glass Panel Dust Filter Radiator Bracket Motherboard Tray Rear Cover Drive Mount PSU Bracket - 4 -... -
Page 5: Dimensions
DIMENSIONS 250 mm 525 mm - 5 -... -
Page 6: Models
Visually inspect the components before further steps. If you notice MODELS any errors, please contact the customer support: http://support.ekwb.com EK-Quantum InWin 977EK – Silver EK-Quantum InWin 977EK – Black The packing materials can be recycled. Please dispose of packaging in accordance with the environmental regulations. -
Page 7: Tempered Glass Side Panels Removal
TEMPERED GLASS SIDE PANELS REMOVAL REAR COVER REMOVAL STEP 1 STEP 1 STEP 2 STEP 2 - 7 -... -
Page 8: Motherboard Tray And Psu Bracket Removal
MOTHERBOARD INSTALLATION MOTHERBOARD TRAY AND PSU BRACKET REMOVAL DUST FILTERS AND RADI- POWER SUPPLY INSTALLATION ATOR BRACKET REMOVAL - 8 -... -
Page 9: Gpu Installation
To remove the PCIe expansion cover, unscrew the thumb screw and insert the GPU into the motherboard. If you are using the EK-Loop Vertical GPU Holder EVO, please follow the instructions provided at the following URL: https://www.ekwb.com/shop/EK-IM/EK-IM-3831109892077.pdf THUMB SCREW PCIe EXPANSION... -
Page 10: Radiators Support
RADIATORS SUPPORT STEP 1 The top side has a clearance of 75mm until hitting the motherboard tray, while the bottom has 89mm. This means there is room for a MAX TOP 58mm thick X series Surface radiator and 29mm fans in the bottom. CLEARANCE EK recommends the maximum thickness of radiators to be 45mm, which translates to a P series 420mm radiator as the recommended... -
Page 11: Configurations
CONFIGURATIONS Default setup STEP 1 STEP 3 STEP 2 - 11 -... -
Page 12: Reverse Atx Setup
Reverse ATX setup STEP 1 STEP 3 STEP 2 - 12 -... -
Page 13: Support And Service
SUPPORT AND SERVICE In case you need assistance or wish to order spare parts or a new mounting mechanism, please contact: https://www.ekwb.com/customer-support/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
