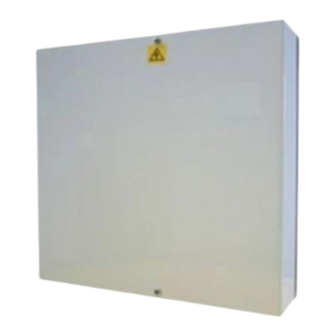

GEN3-34-R 13.8Vdc 3.0A with 2 x 17Ah Batteries
F
EATURES
Suitable for use in systems designed to comply with PD6662:2017 to Grade 3 and Environmental Class II. Rated to provide
continuous current to load for systems requiring 34Ah standby from two batteries. Each battery has its own independent
charger and monitoring circuits. Three independent output signals are provided for loss of mains fault (EPS), battery fault
(APS), and power supply fault (PSU). Comprehensive self-diagnostics can detect blown output and battery fuses, battery fail,
low battery voltage and low output voltage. The PSU incorporates intelligent battery management comprising active full
load battery testing, low battery voltage detection and deep discharge protection to ensure that the batteries are not
permanently damaged through excessive discharge. A brownout filter ensures that short mains voltage dips do not create a
false loss of mains alarm. Diagnostic LEDs assist with quick and easy installation by showing presence of mains, correct
individual battery charging or a fault condition. Comprehensive protection is built-in as standard including mains transient
filtering, transformer thermal fuse, electronic output overload protection and fuses on the load and battery outputs.
•
EN50131-6:2017 Grade 3 Type A PSU
•
EN50131-1 Environmental Class II
•
Independent Intelligent Active Battery Monitoring on each battery
•
Low quiescent battery monitoring current during standby operation
•
Fault signals for loss of mains, battery fail and power supply fault
•
Battery Deep Discharge Protection.
•
Protection against reverse battery connection.
•
Electronic overload protection shuts down output until overload or short circuit is removed (while on mains power).
•
Transformer thermal fuse
•
Mains transient suppression and brown-out filter
C
OMPLIANCE
This power supply unit complies with the following European Directives:
Low Voltage: 2014/35/EU
S
PECIFICATION
Input
Rated Voltage/Operational Voltage
Max Mains Input Current(at 90Vac)
Mains input fuse
Output
Voltage
Load Current (Continuous)
Load output fuse
Battery fuses (1 & 2)
Technical Support: +44(0)23 9269 6638 (option 3)
EN50131-6 Grade 3 PSU
EMC: 2014/35/EU WEEE: 2012/19/EU
100-240Vac /90-265Vac (both at 50-60Hz)
2A
T3.15A 20mm, 250Vac HRC
12.80-14.2 Vdc (13.8Vdc nominal) on Mains power)
9.8 – 13.0 Vdc on Battery Standby
3A (Mains power)
*
2.8A (with 2 x 17Ah batteries) (12 hours)
1.4A * (with 2 x 17Ah batteries) (24 hours)
F3.15A 20mm, 250Vac glass
2 x F3.15A 20mm, 250Vac glass
PAK200949_01A May 2021
