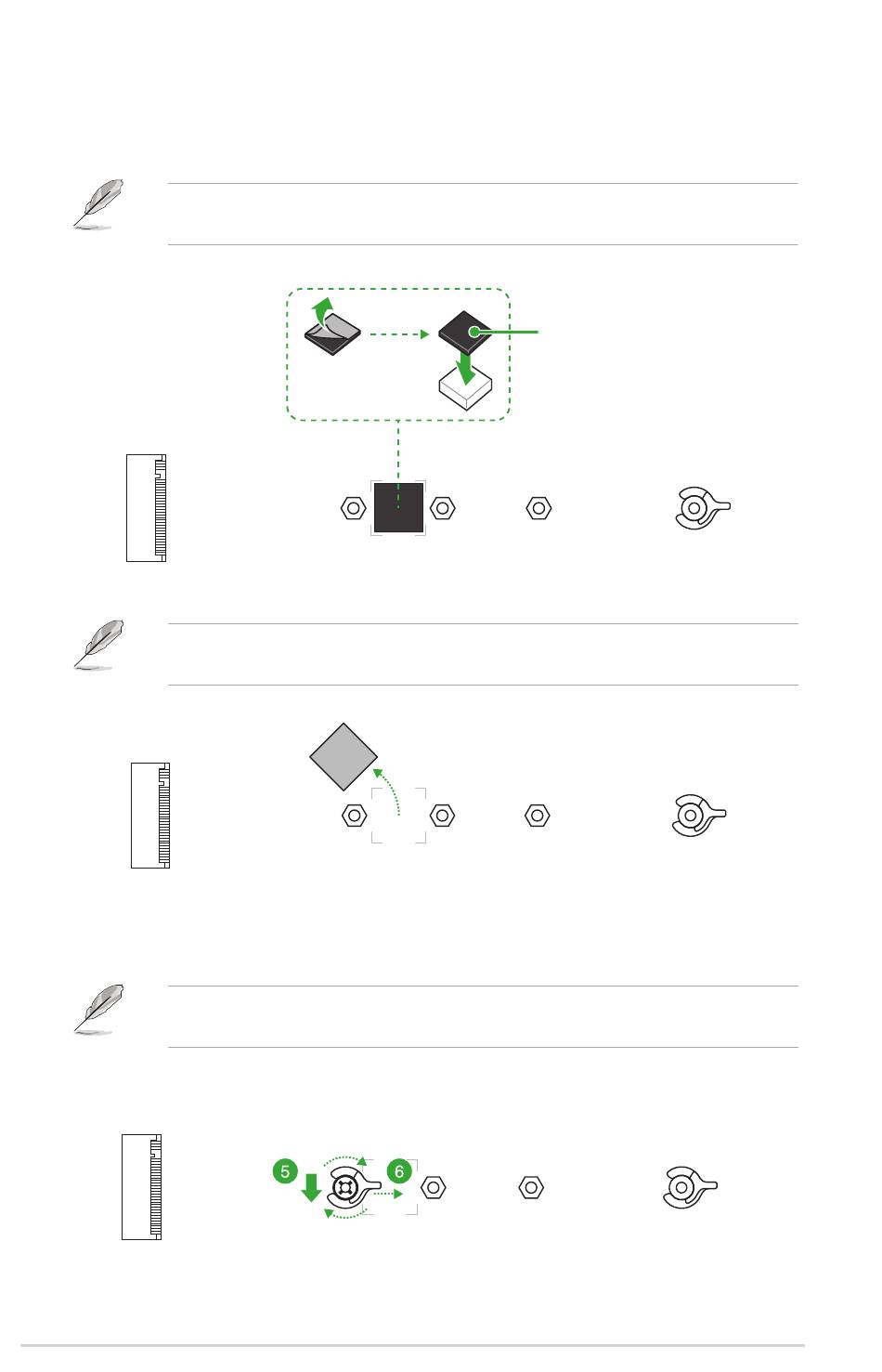

4. (optional) Install the bundled rubber for M.2 if you are installing a single sided M.2
module. DO NOT install the bundled rubber for M.2 when installing a double-sided
M.2 module. The rubber installed by default is compatible with double sided M.2
modules.
Only follow this step if installing a 22110 or 2280 length M.2 module and when the rubber
for M.2 comes bundled with your motherboard package.
OR remove the M.2 rubber.
Only follow this step if installing a 2242 length M.2 module and the M.2 slot has an M.2
rubber pre-installed.
5. (optional) Install the M.2 Q-Latch to the M.2 length screw hole you wish to install your
M.2 module to.
You can use a bundled M.2 Q-Latch screw or a pre-installed removable M.2 Q-Latch
screw.
6. Rotate and adjust the M.2 Q-Latch so that the handle points away from the M.2 slot.
1-12 Chapter 1: Product Introduction
OPTIONAL
Bundled rubber for M.2
