M.2 module installation
•
The illustrations only show the installation steps for a 22110 M.2 slot, the steps are the
same for the other M.2 slots.
•
Use a Phillips screwdriver when removing or installing the screws or screw stands
mentioned in this section.
•
If the thermal pad on the M.2 heatsink becomes damaged, we recommend replacing it
with the bundled thermal pad or a thermal pad with a thickness of 1.25mm.
•
Supported M.2 type varies per motherboard.

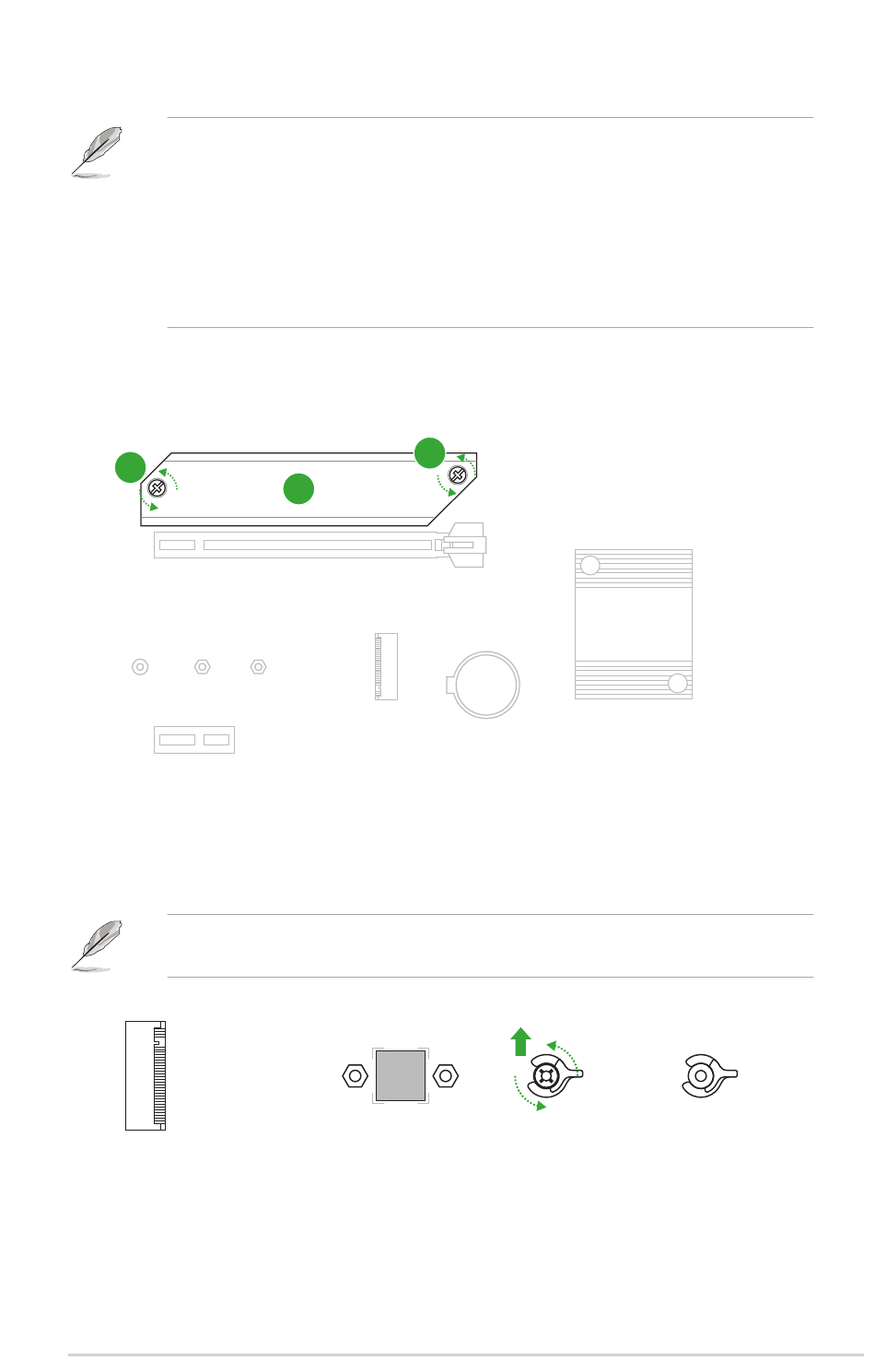

1.
Loosen the screws from the M.2 heatsink.
2.
Lift and remove the heatsink.
1
3.
(optional) If required, remove the pre-installed removable M.2 Q-Latch screw at the
2280 length screw hole.
Only follow this step if a removable M.2 Q-Latch screw is pre-installed at the 2280 length
screw hole and can be removed.
Motherboard User Manual
1
2
1-11
