1.2.2

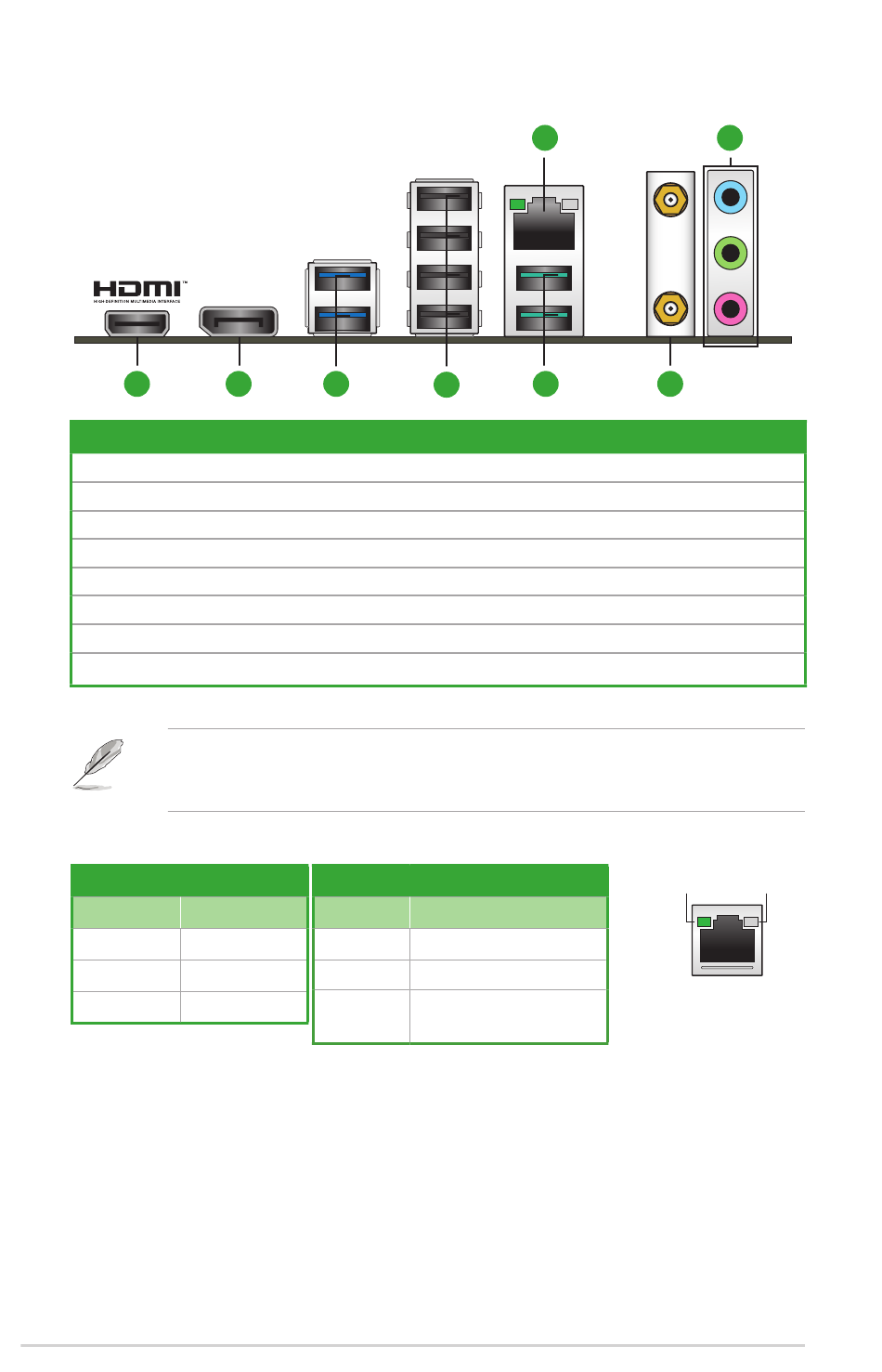

Rear panel connectors
3
Rear panel connectors
1.
Realtek 2.5Gb Ethernet port*
2.
Audio jacks**
3.
HDMI™ port
4.
DisplayPort
5.
USB 3.2 Gen 1 (up to 5Gbps) Type-A ports 3, 4
6.
USB 2.0 ports 1, 13, 14, 15
7.
USB 3.2 Gen 2 (up to 10Gbps) (Teal blue) Type-A ports 2, 6
8.
Wi-Fi module
* and **: Refer to the tables below for LAN port LEDs, and audio port definitions.
We strongly recommend that you connect your devices to ports with matching data transfer
rate. For example connecting your USB 5Gbps devices to USB 5Gbps ports for faster and
better performance for your devices.
* Realtek 2.5Gb Ethernet port LED indications
Activity Link LED
Status
OFF
GREEN
BLINKING
1-6
Chapter 1: Product Introduction
4
5
Speed LED
Description
Status
No link
OFF
GREEN
Linked
Data activity
ORANGE
1
7
6
Description
No link
2.5 Gbps connection
1 Gbps / 100 Mbps /
10 Mbps connection
2
8
ACT/LINK
SPEED
LED
LED
LAN port
