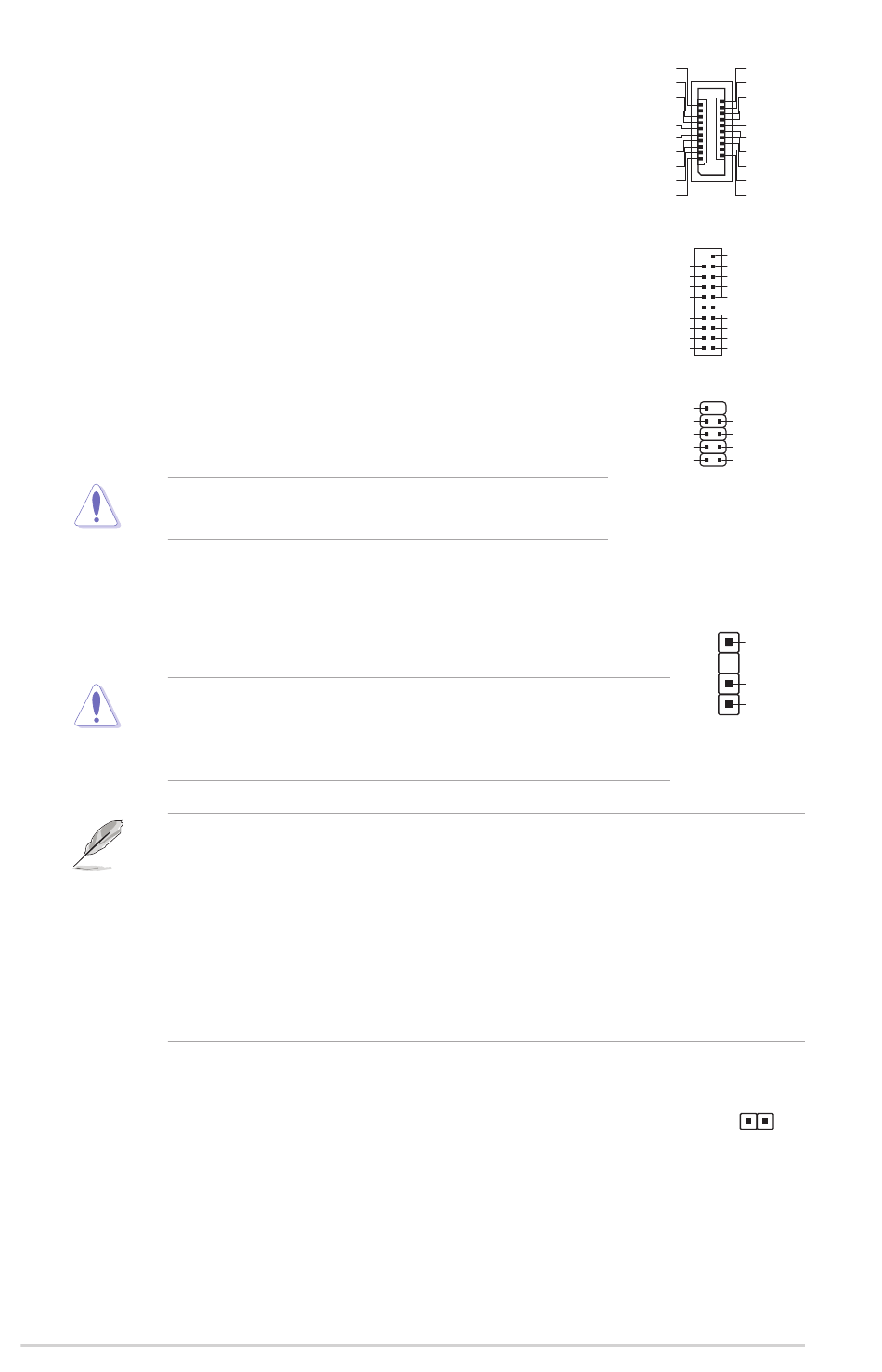

8. USB 3.2 Gen 1 Type-C
The USB 3.2 Gen 1 Type-C
3.2 Gen 1 Type-C
port on the front panel. The connector provides data transfer speeds
of up to 5 Gb/s.
9. USB 3.2 Gen 1 header
The USB 3.2 Gen 1 header allows you to connect a USB 3.2 Gen
1 module for additional USB 3.2 Gen 1 ports. The USB 3.2 Gen 1
header provides data transfer speeds of up to 5 Gb/s.
10. USB 2.0 header
The USB 2.0 header allows you to connect USB modules for
additional USB 2.0 ports. The USB 2.0 header provides data
transfer speeds of up to 480 Mb/s.
DO NOT connect a 1394 cable to the USB connectors. Doing
so will damage the motherboard!
11. Addressable Gen 2 headers
The Addressable Gen 2 headers allow you to connect individually
addressable RGB WS2812B LED strips or WS2812B based LED strips.
Before you install or remove any component, ensure that the power
supply is switched off or the power cord is detached from the power
supply. Failure to do so may cause severe damage to the motherboard,
peripherals, or components.
•
•
•
•
12. Clear CMOS header
The Clear CMOS header allows you to clear the Real Time Clock (RTC) RAM
in the CMOS, which contains the date, time, system passwords, and system
setup parameters.
To erase the RTC RAM:
1. Turn OFF the computer and unplug the power cord.
2. Short-circuit pin 1-2 with a metal object or jumper cap for about 5-10 seconds.
3. Plug the power cord and turn ON the computer.
1-4 Chapter 1: Product Introduction
Front Panel connector
®
connector allows you to connect a USB
®
module for an additional USB 3.2 Gen 1 Type-C
®
The Addressable Gen 2 headers support WS2812B addressable RGB LED strips (5V/
Data/Ground), with a maximum power rating of 3A (5V), and the addressable headers
on this board can handle a combined maximum of 500 LEDs.
Actual lighting and color will vary with LED strip.
If your LED strip does not light up, check if the addressable RGB LED strip is
connected in the correct orientation, and the 5V connector is aligned with the 5V
header on the motherboard.
The addressable RGB LED strip will only light up when the system is powered on.
NC VBUS
NC
TX2+
CC1 TX2-
VBUS
GND
RX1-
RX2+
®
RX1+
RX2-
GND
GND
TX1- D-
TX1+
D+
VBUS CC2
PIN 1
USB3+5V
USB3+5V IntA_P1_SSRX-
IntA_P2_SSRX- IntA_P1_SSRX+
IntA_P2_SSRX+ GND
GND IntA_P1_SSTX-
IntA_P2_SSTX- IntA_P1_SSTX+
IntA_P2_SSTX+ GND
GND IntA_P1_D-
IntA_P2_D- IntA_P1_D+
IntA_P2_D+ GND
USB_12
NC
GND GND
USB_P2+
USB_P1+
USB_P2-
USB_P1-
USB+5V USB+5V
PIN 1
ADD_GEN 2
Ground
Data
+5V
PIN 1
CLRTC
PIN 1
