Summary of Contents for Speco O8P32X

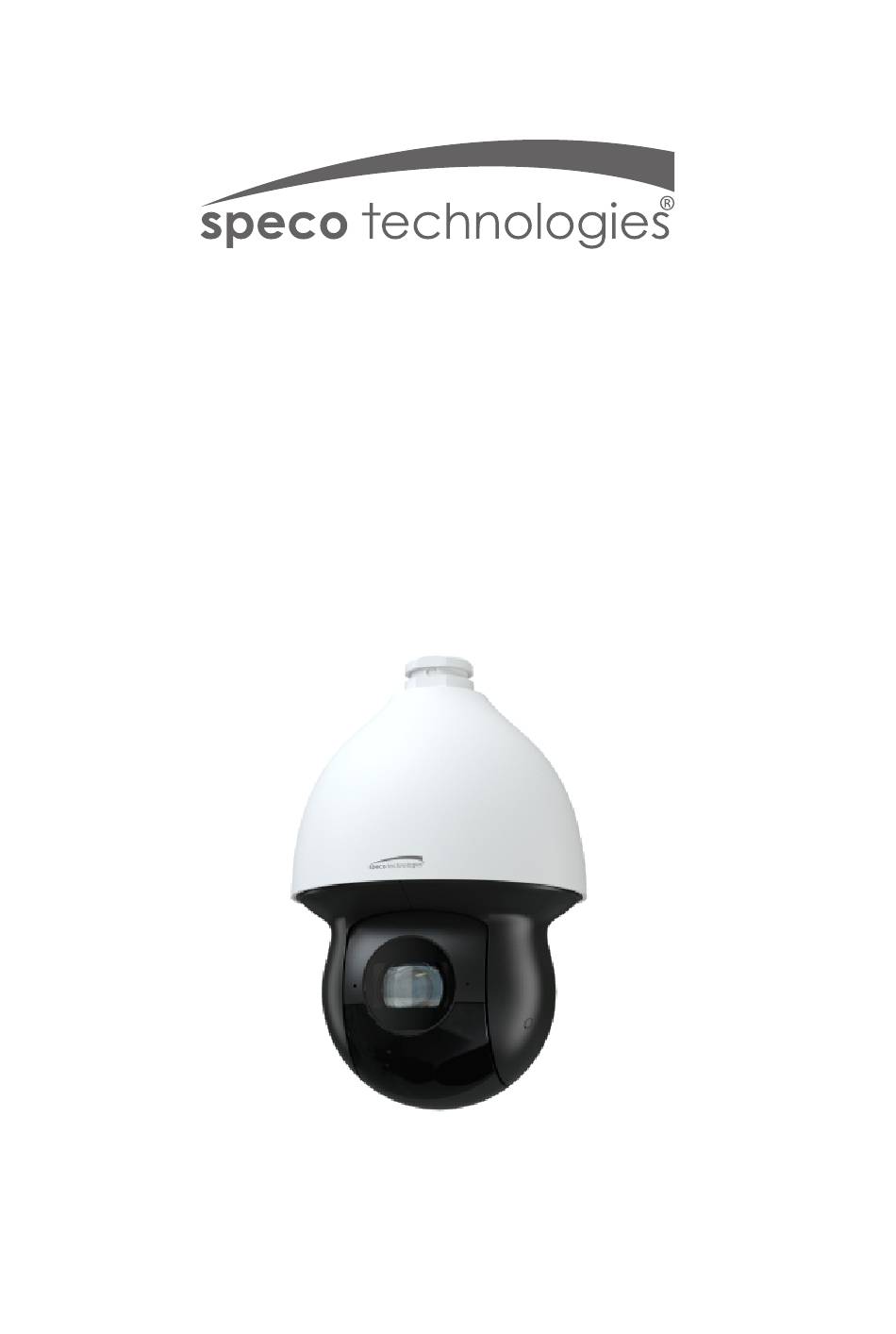

- Page 1 Quick Start Guide O8P32X...
- Page 2 This owner's manual is designed to be a reference tool for your system. Please read this manual carefully before operating the unit and retain it for future reference. Should you require any technical assistance, contact Speco Technologies Tech Support at 1-800-645-5516 Important Safeguards and Warning 1.
- Page 3 Technologies reserves the right to modify these without notice and without incurring any obligation. Speco Technologies is not liable for any loss caused by improper operation. Note: Before installation, check the package and make sure that all components are included.
-
Page 4: Installation
Overview Overview 1 Ethernet connector 2 MIC-Audioinput (3.5mm) 3 HP-Audiooutput (3.5mm) 4 Alarminput/output 5 DC24V power jack 6 Ground 7 Memory card slot 8Reset Installation Please make sure the wall is strong enough to bear the dome camera’s weight. Please make sure the camera is powered off during installation. - Page 5 Insert an SD card Screw ① Loosen the two screws of the dome. ② Open the cover and insert an SD card. ◆ Wall Mounting ① Pull the cables through the bracket. Mount the ② Secure the speed dome to the bracket with speed dome to the bracket.
- Page 6 ③ Drill the screw holes on the wall according ④ Drive the two screws to the holes indicated to the drill template. Then insert the plastic by the arrows (left) and leave 12mm screw anchors into the holes. clearance. ⑤ ⑥...
-
Page 7: Cable Connection
Cable Connection 1--ALM-OPEN 2--ALM-COM 3--ALM-GND 4--ALM-IN1 DC24V Connect to earth ground Connecting Network Cable ① Loosen the nut from the main element. ② Run the network cable (without RJ 45 connector) through the both elements. Then crimp the cable with RJ 45 connector. ③... - Page 8 ② Install IP Scanner from the CD and run it after installation.Or download from https://www.specotech.com/ip-scanner/ 5C:F2:07:34:68:9A O8P32X ③ In the device list, you can view the IP address, model number, and MAC address of each device. Select the applicable device and double click to open up the web viewer.
- Page 9 The login interface is shown above. Default user name is admin and password is 1234. After logging in, follow directions to install applicable plugins if prompted.
