Summary of Contents for OsmoFresh Quella Pro

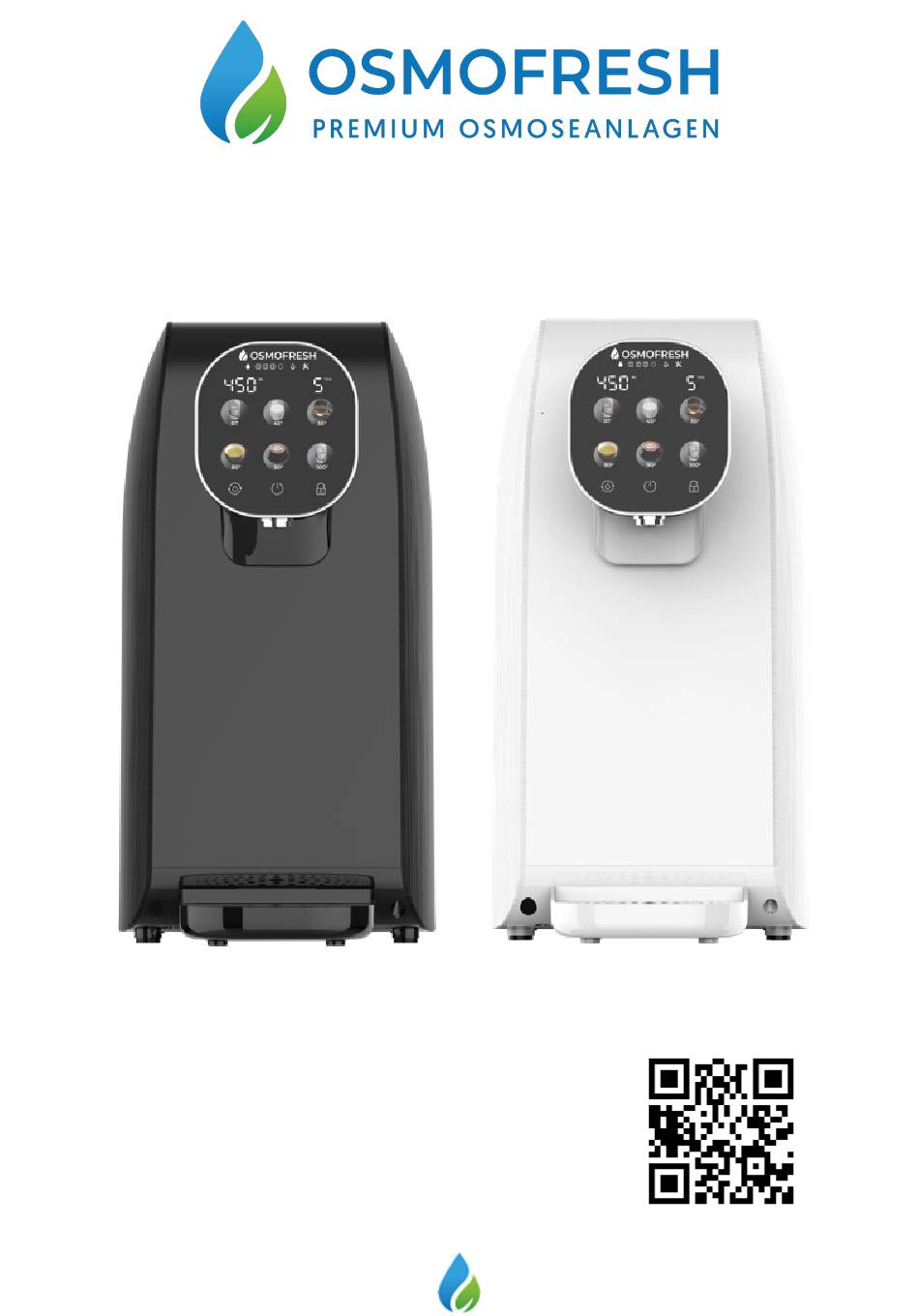

- Page 1 Quella Pro operating instructions Not in the mood for long texts? Click here for the installation video...
-
Page 2: Table Of Contents
1. table of contents 1. table of contents 2. scope of delivery 3. introduction 4. commissioning 5. daily use 6. maintenance, tips & tricks 7. twinFlow® technology 8 UltraPore® Coating 9. declarations 10. filter change 11. warnings and safety instructions 12. -
Page 3: Scope Of Delivery
2. scope of delivery Quella Pro (White or Black Edition) with drip tray and tank. Filter pre-installed. Did you already know...? A matching OsmoFresh glass carafe is now also available for the Quella Pro. Order now directly at osmofresh.de... -
Page 4: Introduction
3. introduction 3.1 Congratulations Congratulations on your new OsmoFresh Quella Pro osmosis system. The Quella Pro has been improved on the basis of the Quella Life thanks to your customer feedback: Brighter and sharper display • Higher outlet and stainless steel water outlet •... -
Page 5: Commissioning
4. commissioning • Place the Quella Pro in the designated location. As the tank needs to be filled regularly, a place near a tap is ideal. • Make sure that all blue transportation strips are removed. • Remove the lid from the tank. - Page 6 • As soon as the display has gone out again, press the on/off button on the display. • The white drop starts to flash on the display. This means that the Quella Pro is starting the filter process. • After about 1-2 minutes, the waste water tank begins to fill.
- Page 7 Remark The Quella Pro pre-filters your water in an internal ultrapure water tank. This has a capacity of around 1.7 liters. When the water is removed, it is filtered again in the secondary filter and then flows through the water outlet.
- Page 8 • To do this, press the "RT" button (for room temperature) on the display and hold a glass under the water outlet. • That's it. The Quella Pro is now ready for use and you can enjoy freshly filtered water. Remark The "rinsing"...
-
Page 9: Daily Use
"Lock" button. Then simply press the desired temperature level. Attention! Boiling hot water comes out of the water outlet immediately. The Quella Pro works with an integrated instantaneous water heater, which heats the water up to 100°C within 3 seconds. In contrast to a kettle, only as much water is heated as is actually needed. -
Page 10: Maintenance, Tips & Tricks
Fill the tank with tap water and place it back on the system. Extension of service life with high lime content: The appliance has OsmoFresh ScaleShield® technology installed in the pre-filter (no. 2). This technology reduces limescale deposits in the outer tank, the membranes and other components in the appliance. - Page 11 6. maintenance, tips and tricks My TDS value was very low at the beginning and rises sharply after a few weeks. What can I do? In this case, we recommend decalcifying the outdoor tank regularly, no longer filling the waste water side completely or even not filling it at all and filling the outdoor tank with approx.
-
Page 12: Twinflow® Technology
7. twinFlow® technology How does TwinFlow® technology work? With TwinFlow® technology, we achieve a longer service life for the device and the membrane without compromising the filter service life. A question that we have been asked frequently: Waste water mixes with tap water in the waste water tank due to the overflow. -
Page 13: Ultrapore® Coating
Coating technology work? UltraPore® Coating Technology is a coating technology that we use for all OsmoFresh membranes. This leads to even higher filter performance and better TDS values. We have developed this technology in recent years and have now established it in all OsmoFresh systems. - Page 14 8 UltraPore® Coating Technology As a rule, each membrane consists of three layers. We have incorporated a fourth layer using a special manufacturing process. (see also graphic) Polyester base : serves as a foundation and structure for the upper layers. Is not involved in the filtering process. Extremely important here is the highest possible purity in the manufacturing and processing process, which we regularly check and ensure personally with our suppliers.
-
Page 15: Declarations
9. declarations Red drop: please Display: refill the tap water and waste water tanks. Filter change: Change the filters when the filter change indicator lights up red Error - Consult the operating • If the drop flashes, the instructions or system is filtering and no contact our water can be drawn off. -
Page 16: Filter Change
10. filter change Sleep mode: If the Quella Pro is not used for 1 hour, it automatically goes into sleep mode. The display is still visible but darkens. By pressing one of the six temperature buttons, the system wakes up and switches to standby mode. - Page 17 10. filter change Insert the new filter into the opening and turn it clockwise to tighten. Reset Press and hold the "Reset" button for about 3 seconds until the system beeps once and the first filter element on the display flashes red. By pressing the "Reset"...
-
Page 18: Warnings And Safety Instructions
Please understand that we cannot accept any warranty for this. 10. To avoid danger, please place the Quella Pro on a flat table top. (The inclination of the table top should not be greater than 10°). -
Page 19: Troubleshooting
Then follow the tips for regular maintenance and error E1 on the descaling in the 'Maintenance, tips and tricks' display section. The device shows an error on the display Contact OsmoFresh customer service at with a number other info@osmofresh.de than E1. E.g. E2, E4 etc. -
Page 20: Product Parameters
Water outlet Housing Drip tray Model: Quella Protection against electric shock: Pro Black Protection class I Edition OsmoFresh Power consumption*: A brand of the Standby: 4.1 W Sleep (automatically after 1 purecom GmbH Voltage: 220- hour): approx. 1.5 W Platanenstr. 1A 240V~ 45°C Draw-off: approx. -
Page 21: Vacation/Absence
14. vacation/absence In the case of longer absences or vacations, we recommend the following procedure depending on the duration of the vacation: Duration Procedure Empty the tap water tank and the waste water tank Remove all the water from the inner tank using the "RT" button Unplug the system Up to 1... -
Page 22: General Description Of The Function
15. general description of the function 1. how the Quella Pro reverse osmosis system works The water is drawn in from the outside tank on the larger side at the bottom and passed through a pre-filter. This reliably filters out sediments and inorganic substances such as chlorine. -
Page 23: Water Analysis
Total hardness calculated 1,54 °dH Note: Quella Pro water is mineralized like average tap water and many bottled waters from the supermarket. If you want highly mineralized water, you can additionally mineralize it. Our in-house water sommelier will be happy to advise you on this. - Page 24 Recommended filter change interval: every 6 months Art. No. Filter: FIQL Recommended diaphragm every 12 - 24 months change interval: or if the TDS value rises permanently to Art. No. Diaphragm: MBQL 30 or higher - whichever comes first If you require pure osmosis water (without post-filtration), we offer an empty post-filter under Art.
