Hella 2XT 959 630 Series Quick Start Manual

Hella-New Zealand Ltd.
LED COURTESY LAMP, SURFACE MOUNT
Lamp Mounting Instructions
4mm Ø bolts (not included) are recommended to mount the lamp with a maximum head height of 4.5mm.
Ensure the lamp is mounted on a flat surface. The housing may be used as a template for the mounting holes. Drill
two mounting holes up to 4.5mm Ø 28.5mm apart, and mount the housing. Drill cable entry hole in the centre of the
mounting holes at a recommended size of 4.5mm to 8mm Ø, and ensure the hole has no sharp edges to chafe the
cable. Push the cable through the hole and connect the wiring (see wiring instructions). Push the LED module firmly
into the housing until it snaps into position.
LED Module Instructions
To remove the LED module before installation hold the housing near the base and push firmly on the back of the module.
Note: The LED module is fully sealed and has no serviceable components.
The LED module is securely fastened to prevent dislodging in service, and removal would not normally be required. If it
becomes necessary to remove the module after installation, insert a small blade on both sides of the LED module and

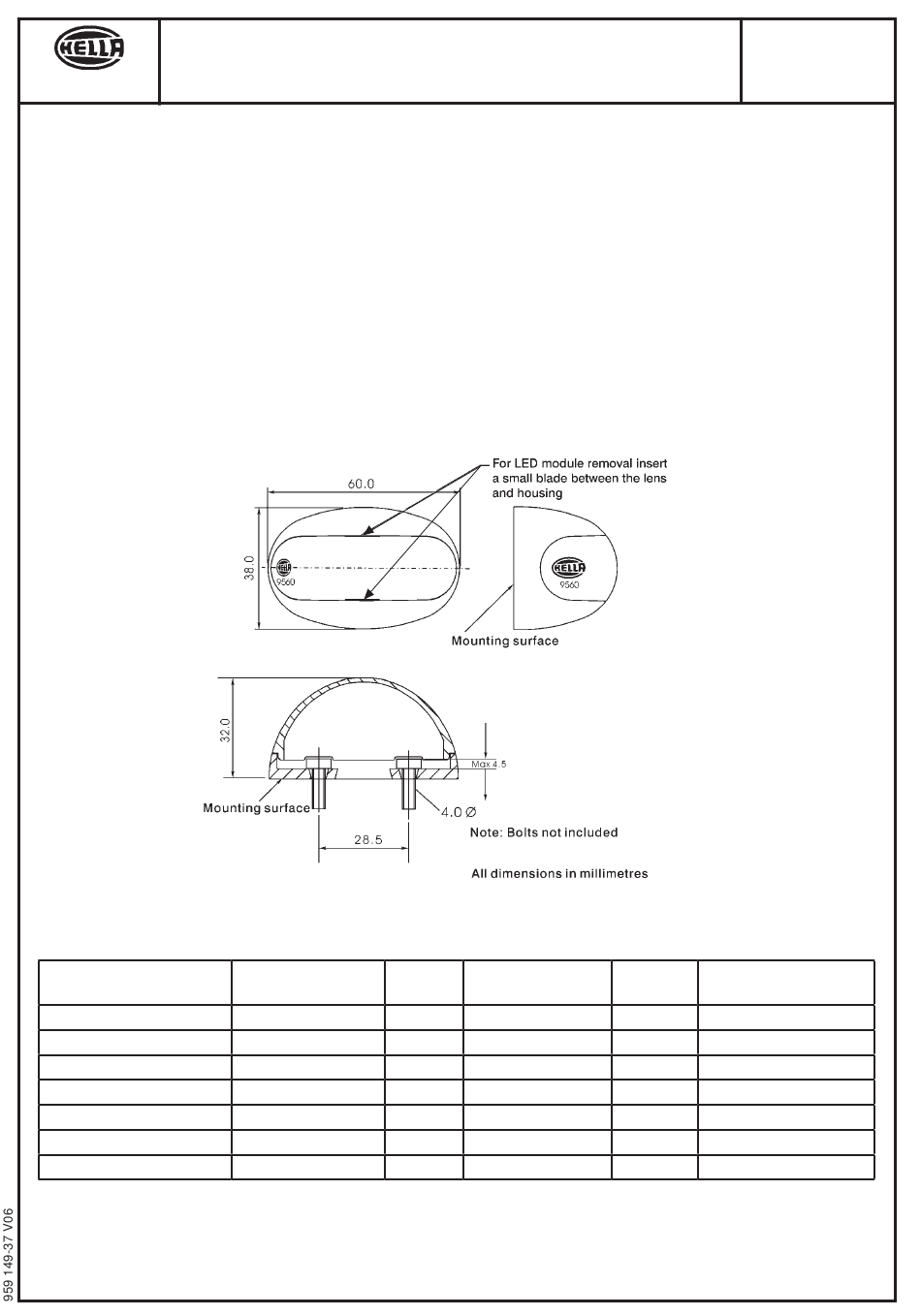

the housing at the correct position and prise the module free from the housing. (See diagram below)
Wiring Colour Coding
Lamp is polarity conscious. The reversal of the polarity will not damage this product but will inhibit its function.
Hella recommends wire connections be soldered, and heat shrink tubing applied to seal the joint.
Part Number
2XT 959 630-10x
2XT 959 630-15x
2XT 959 630-25x
2XT 959 630-30x
2XT 959 630-35x
2XT 959 630-45x
2XT 959 630-55x
NB: Lamp must be protected by a fuse rated at 2 amperes maximum.
Warranty: Hella branded products are covered by a warranty against manufacturing or material defects.
Lamp is sealed and does not have any serviceable parts inside, opening the lamp will invalidate warranty.
For general comments about Hella's product please contact us on E-mail at techfeedback@hella.co.nz
Part Number: 2XT 959 630-xxx
Lamp Colour Cable
Earth (-)
Black
Amber Lamp
Black
Amber Lamp
Black
Blue Lamp
Black
Red Lamp
Black
Red Lamp
Black
White Lamp
Black
Green Lamp
Cable Voltage
Positive (+)
Amber 12V
Amber 8-28V
White/Red Trace
10-33V
Red 12V
Red 8-28V
White/Red Trace
10-33V
White/Red Trace
10-33V
Power Consumption
0.5 watt
0.5 watt
0.5 watt
0.5 watt
0.5 watt
0.5 watt
0.5 watt
