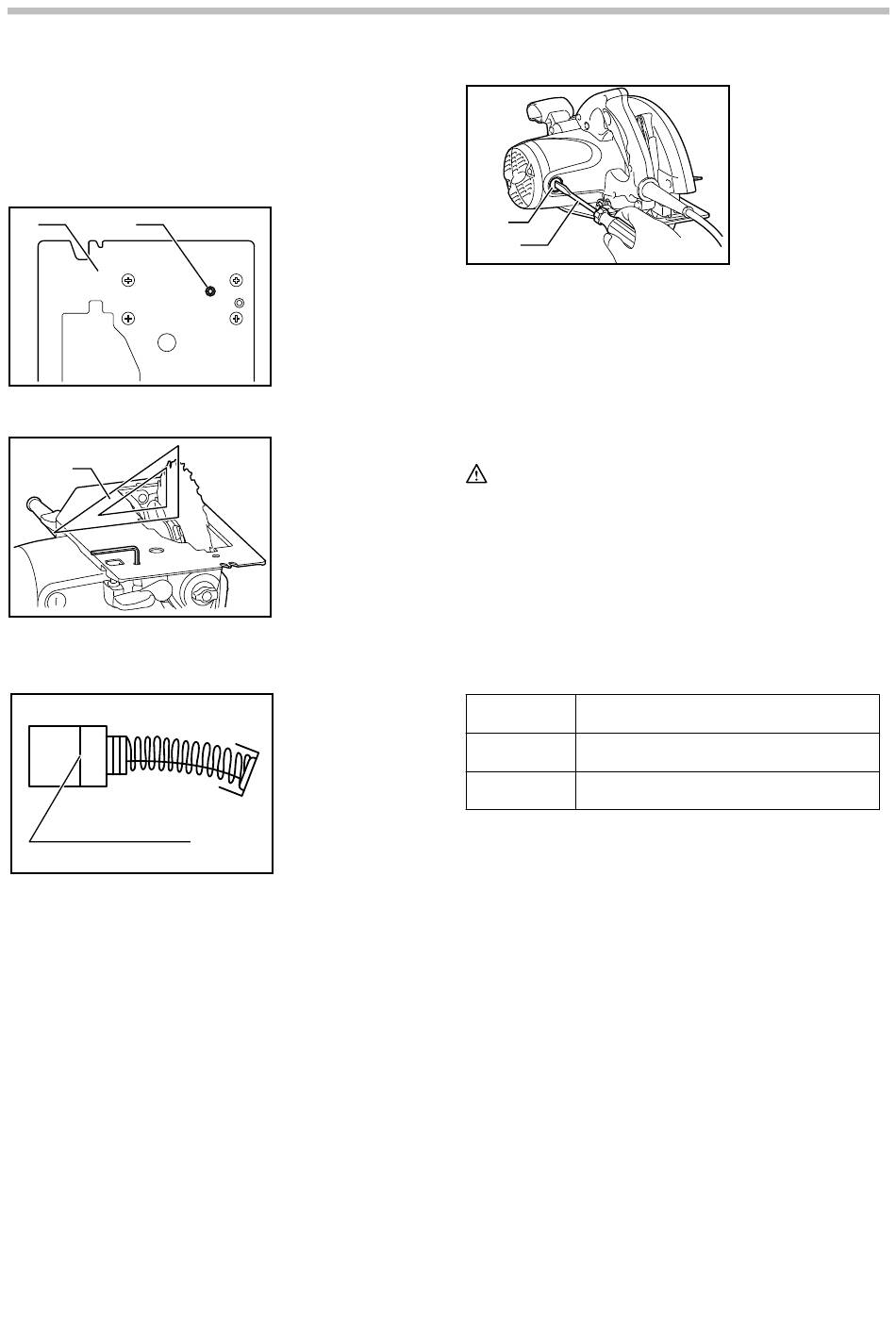

Adjusting for accuracy of 90° cut (vertical cut)
This adjustment has been made at the factory. But if it is
off, adjust the adjusting screw with a hex wrench while
squaring the blade with the base using a triangular rule,
try square, etc.
1
2
008682
1
008683

Replacing carbon brushes

001145
Remove and check the carbon brushes regularly.
Replace when they wear down to the limit mark. Keep
the carbon brushes clean and free to slip in the holders.
Both carbon brushes should be replaced at the same
time. Use only identical carbon brushes.
Use a screwdriver to remove the brush holder caps.
Take out the worn carbon brushes, insert the new ones
and secure the brush holder caps.
1. Base
2. Adjusting screw
1. Triangular rule
1. Limit mark
1
1
2
008684
To maintain product SAFETY and RELIABILITY, repairs,
any other maintenance or adjustment should be
performed by Makita Authorized Service Centers,
always using Makita replacement parts.
ACCESSORIES
CAUTION:
These accessories
•
recommended for use with your Makita tool
specified in this manual. The use of any other
accessories or attachments might present a risk of
injury to persons.
attachment for its stated purpose.
If you need any assistance for more details regarding
these accessories, ask your local Makita Service Center.
Steel & Carbide-tipped saw blades
•
General purpose blade for fast and smooth rip,
Combination
crosscuts and miters.
Pressure treated/ Designed for fast cutting of pressure treated and
Wet lumber wet lumber.
Fine cross cuts For sand-free cuts cleanly against the grain.
006549
Rip fence (Guide rule)
•
Hex wrench
•
9
1. Brush holder
cap
2. Screwdriver
or attachments
Only use accessory or
are
