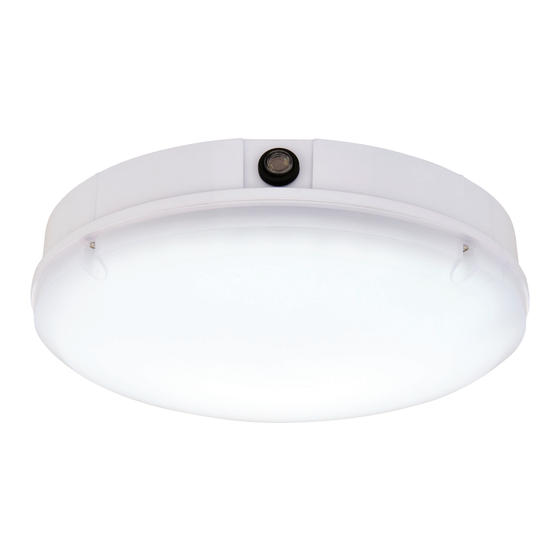

Saxby Lighting Forca 5CCT Photocell Instruction Manual

Photocell Sensor
• This product is fitted with a photocell. The specification is as follows:
- Rated load: 500W~850VA
- Operating Level: 10~20 Lux On, 30~60 Lux Off
- Operating Temperature: -40 ºC - +70 ºC
• It is normal for the sensor to take several minutes to turn off when the product is first installed. To test "turn on" during
daylight hours - cover the sensor with opaque material. The test will take approximately 2 minutes.
Technical data
Supply
220-240 V~, 50 Hz
Voltage:
Bulb
8/12/15W LED module (SMD) CCT, 2700/3000/4000/5000/6000K
Type:
This product contains a light source of energy efficiency class D.
Replaceable (LED only) light
source by a professional
Conformity with all relevant UKCA Directive requirements.
Conformity with all relevant EC Directive requirements.
The power supply is Double Insulated and does not require connection to an Earth circuit.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or local store for recycling advice.
This product is not suitable for dimming.
This product is rated at IP65.
65
IP
This product is rated at IK08.
08
IK
Care and Safety
We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish.
For your safety, always switch off the power supply before cleaning.
This light source is protected by a shade. This part must be replaced immediately should the shade
become cracked or damaged. This fitting must not be used without the shade in place.
Replace Cracked Shade
For further information, please visit https://www.lighting-info.co.uk/77899
V7 11/01/2024
UK Manufacturer: BH17 7BY
EU Manufacturer: Brilliant AG,
Brilliantstrasse 1, D-27442 Gnarrenburg
Replaceable control gear by a
professional
Instruction manual
Forca 5CCT Photocell
77899
www.saxbylighting.com
