Summary of Contents for jcm-tech ML8NF

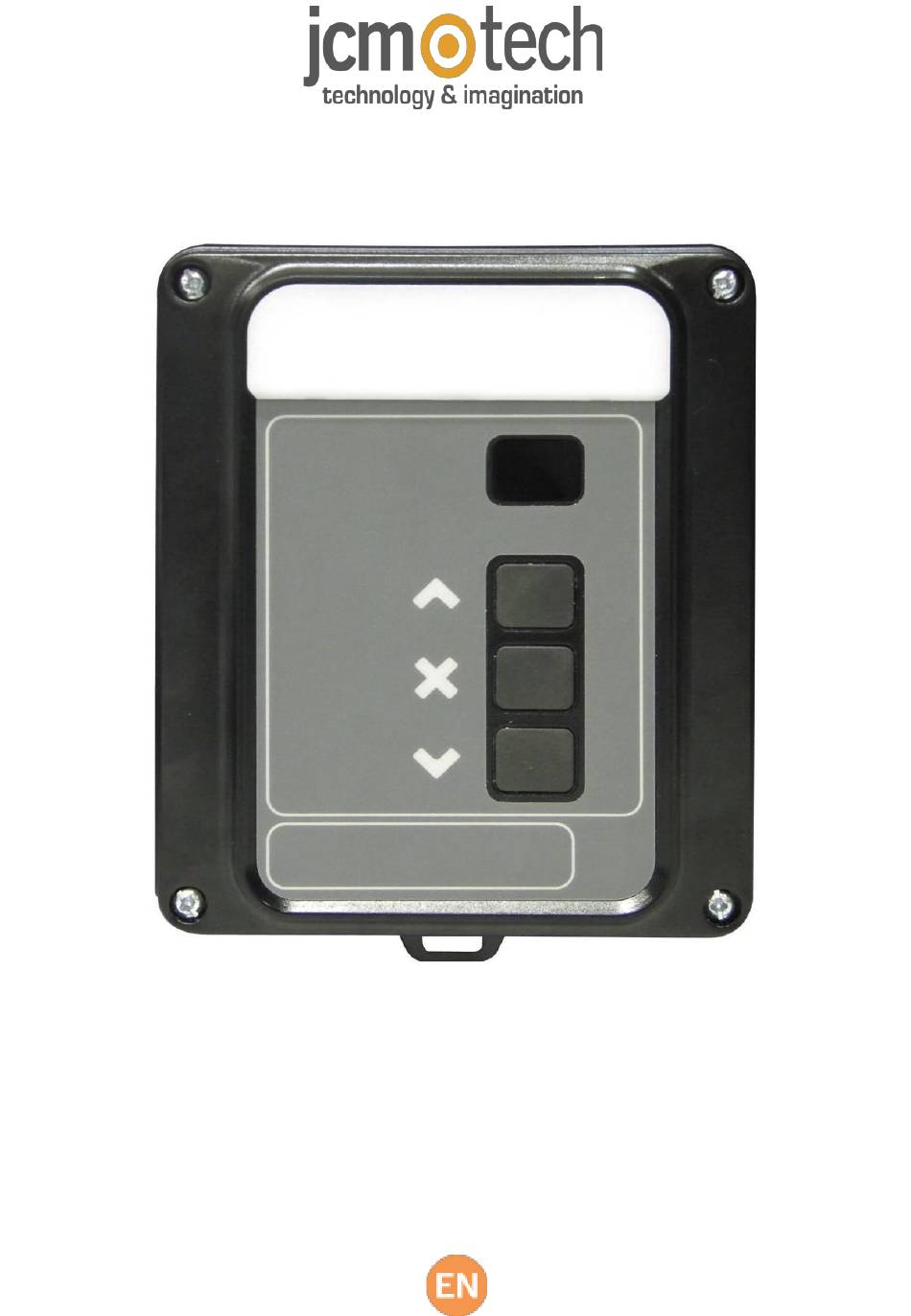

- Page 1 User's Manual ML8NF...
-
Page 2: Table Of Contents
Table of contents Maintenance Important safety instructions for installation Important safety instructions for use Use of the equipment Technical Data Connection Installation Installation with support Installation without support Door Positioning Programming Radio Manual Programming Total Reset Safety devices programming RadioSens3 Transmitter Programming in RSEC3 Receiver Adjust the sensitivity and inhibition point Maneuver programming Programming the door maneuver with RadioSens3 system... -
Page 3: Maintenance
Maintenance Important safety instructions for installation Disconnect the power supply whenever you proceed to the installation or repair of the control panel. The panel must be installed while the power is disconnected. • Before installing the panel, remove all unnecessary ropes or chains and disable any equipment such as •... -
Page 4: Technical Data
Technical Data Parameter Value Frequency 868,35 MHz Codification High security rolling code 27 codes (expandable to 500 codes with memory Memory card) Power supply 230Vac ±10% Maximum motor power 750W / 1200W (intensive use / residential use) Standby / operating consumption 23mA / 43mA Motor fuses Optional cards... -
Page 5: Connection
Connection Motor connections: U=OPEN (Brown) V=CLOSE (Black) W(c)=COMMON (Blue) If motor runs in wrong direction, de-power and swap brown and black cables. jcmtechnologies... -
Page 6: Installation
Installation Installation with support UNSCREW EXTRACT SUPPORT DRILL WALL HANG CONTROL PANEL SCREW Installation without support UNSCREW OPEN TOP DRILL WALL Door Positioning PRESS WHITE PROG PRESS & HOLD CLOSE DOOR CLOSES DOOR CLOSED BUTTON 2 SECS jcmtechnologies... -
Page 7: Programming
Programming Radio Manual Programming (Remote controls, wireless buttons, etc) PRESS RPROG OPEN COVER PUSHBUTTON LED TURNS ON PRESS TRANSMITTER PRESS RPROG PUSHBUTTON LED TURNS OFF We recommend programming: The top button of your MUV2-HP to C1 (START) for primary operation of the door. The bottom button to C2 (DEADMAN CLOSE) to enable the door to be closed in deadman in an emergency such if there is a safety device issue. -
Page 8: Safety Devices Programming
Safety devices programming RadioBand3 Transmitter Programming in RSEC3 Receiver Wire in the safety edge and set the dipswitches according to the RB3 TGL868 manual before programming. BLUE PRESS PROG BUTTON OF THE PRESS PROG ONE BEEP AND PLUGABLE CARD RSEC3 TRANSMITTER PROGRAMMED LED TURNS ON... -
Page 9: Maneuver Programming
Maneuver programming Programming the door maneuver PRESS WHITE PROG PRESS START PUSHBUTTON 2 SECS PUSHBUTTON LED TURNS ON DOOR CLOSED DOOR OPENS 2 SECONDS DOOR CLOSES DOOR STOPS AUTO DOOR OPENS AUTO PRESS START PUSHBUTTON DOOR STOPS AUTO AUTOCLOSE TIME DOOR CLOSES DOOR STOPS AUTO LED TURNS OFF... -
Page 10: Inputs, Outputs, Dip-Switches & Radio Inputs
JCM Technologies hereby declares that the product M8NF complies with the relevant fundamental requirements of the RED Directive 2014/53/EU, as well as with the Machine Directive 2006/42/EC whenever its usage is foreseen; and with the 2011/65/EU RoHS Directive. See website www.jcm-tech.com/declarations/ JCM TECHNOLOGIES, SA C/COSTA D'EN PARATGE, 6B 08500 VIC (BARCELONA)
