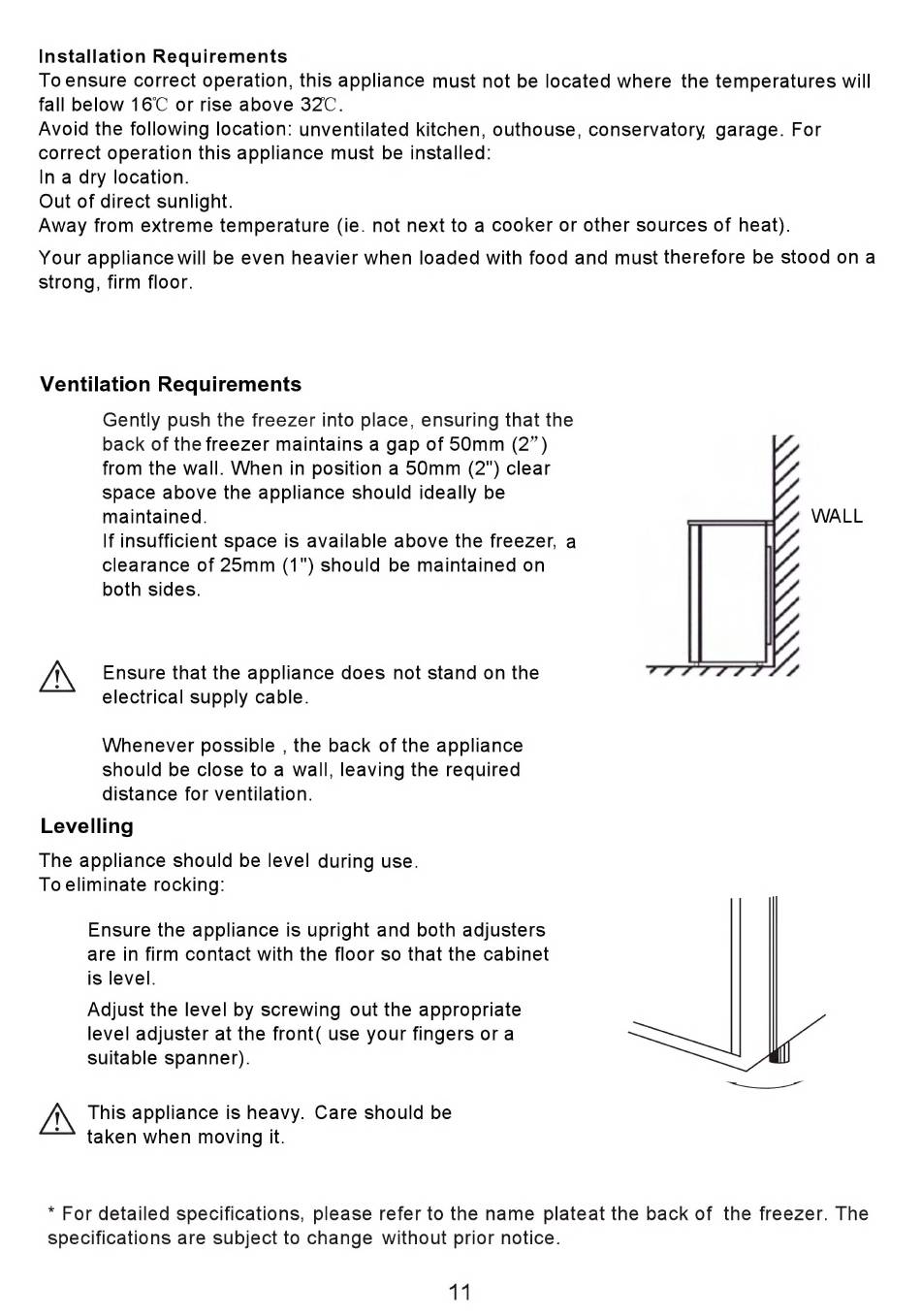

Installation Requirements; Ventilation Requirements; Levelling - Haier Hfz-85 User Instructions

Installation Requirements
To ensure correct operation, this appliance must not be located where the temperatures will
fall below 16C or rise above 32C.
Avoid the following location: unventilated kitchen, outhouse, conservatory garage. For
correct operation this appliance must be installed:
In a dry location.
Out of direct sunlight.
Away from extreme temperature (ie. not next to a cooker or other sources of heat).
Your appliance will be even heavier when loaded with food and must therefore be stood ona
strong, firm floor.
Ventilation Requirements
Gently push the freezer into place, ensuring that the
back of the freezer maintains a gap of 50mm (2")
from the wall. When in position a 50mm (2") clear
space above the appliance should ideally be
maintained. WALL
If insufficient space is available above the freezer, a
clearance of 25mm (1") should be maintained on
both sides.
/N Ensure that the appliance does not stand on the VY,
electrical supply cable.
Whenever possible , the back of the appliance
should be close to a wall, leaving the required
distance for ventilation.
Levelling
The appliance should be level during use.
To eliminate rocking:
Ensure the appliance is upright and both adjusters
are in firm contact with the floor so that the cabinet
is level.
Adjust the level by screwing out the appropriate
level adjuster at the front( use your fingers ora
suitable spanner).
This appliance is heavy. Care should be
taken when moving it.
* For detailed specifications, please refer to the name plateat the back of the freezer. The
specifications are subject to change without prior notice.
11
