Door Reversal
This refrigerator has been built with the door hinges on the right. If you wish to change the
opening direction, follow the instructions below:
1. Remove the upper hinge cover (6) first.
2. Remove the two screws (1) that hold the upper hinge (5) (right side) to the frame. Take
away the upper hinge (5).
3. Lift the door and place it on a padded surface to prevent scratching it.
4. Remove the two screws ( 8 ) that hold the lower hinge ( 2 ) and then remove the lower
hinge ( 2).
5. Remove the left front leg ( 4 ) and transfer it to the right side.
6. Move the hole cover plate ( 7 ) to the right side.
/.Before placing this lower hinge ( 2 ), remove the bolt-pin ( 9 ) and reverse the direction of the
lower hinge ( 2 ). Then install the lower hinge ( 2 ) onto the left side of the lower frame with two
screws ( 8 ).
8. Insert the bolt-pin( 9 ) into the lower hinge ( 2 ).
9. Set the door in place, making sure the door seat at the lower hinge( 2 ).
10. While holding the door in the closed position, attach the upper hinge (5 ) left side of the
top frame with two screws ( 1 ), do not tighten the two screws ( 1 ) until the top of the door is
parallel to the counter top.
11. Install the upper hinge cover ( 6 ) on the upper hinge.
a
"ee
FIGURE 1 FIGURE 2

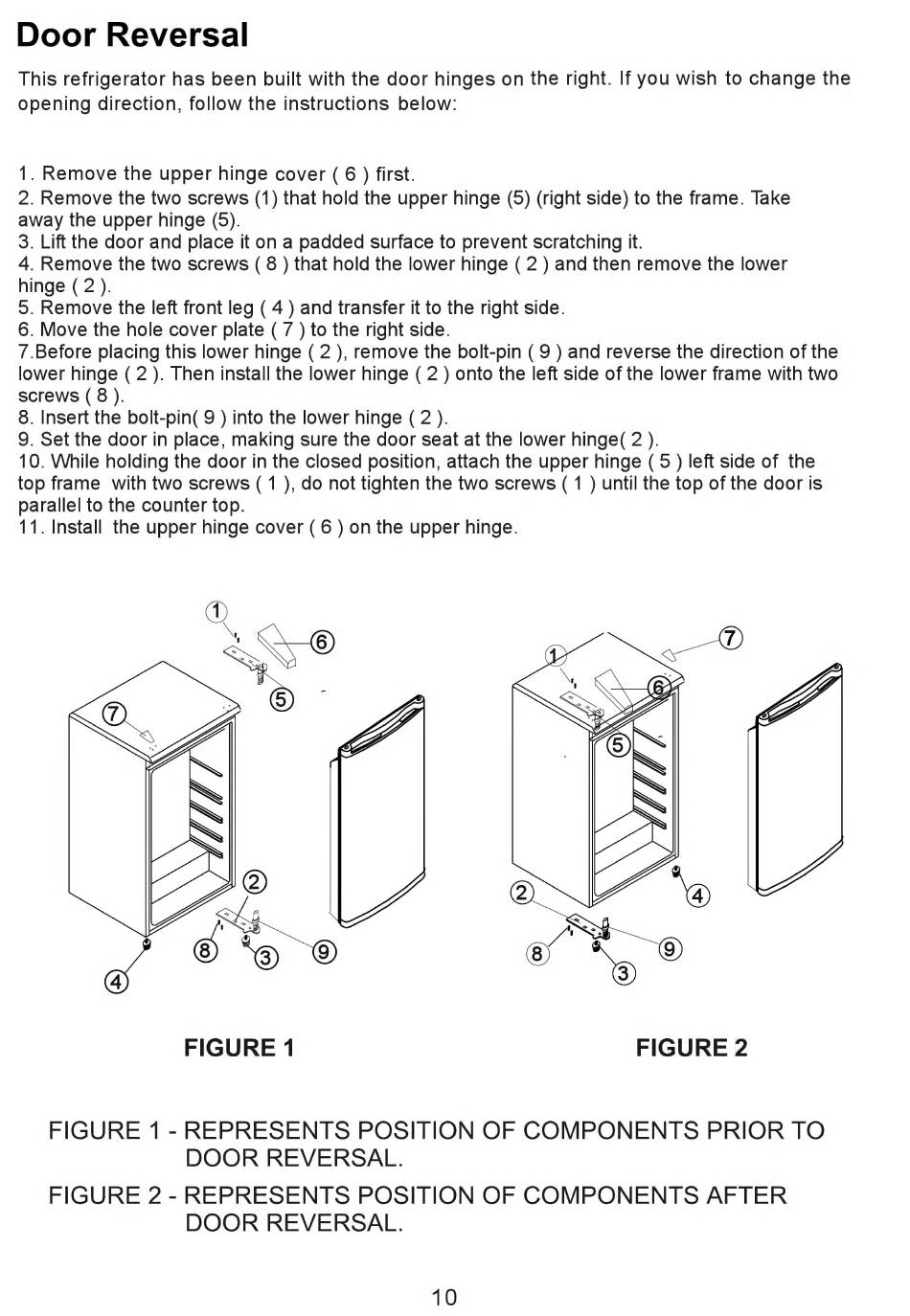

FIGURE 1 - REPRESENTS POSITION OF COMPONENTS PRIOR TO
DOOR REVERSAL.
FIGURE 2 - REPRESENTS POSITION OF COMPONENTS AFTER
DOOR REVERSAL.
