C&T Solution ECO-1000 User Manual

Energy pack
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ECO-1000
ENERGY PACK
Industrial Supercapacitor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECO-1000 and is the answer not in the manual?

Questions and answers

Summary of Contents for C&T Solution ECO-1000

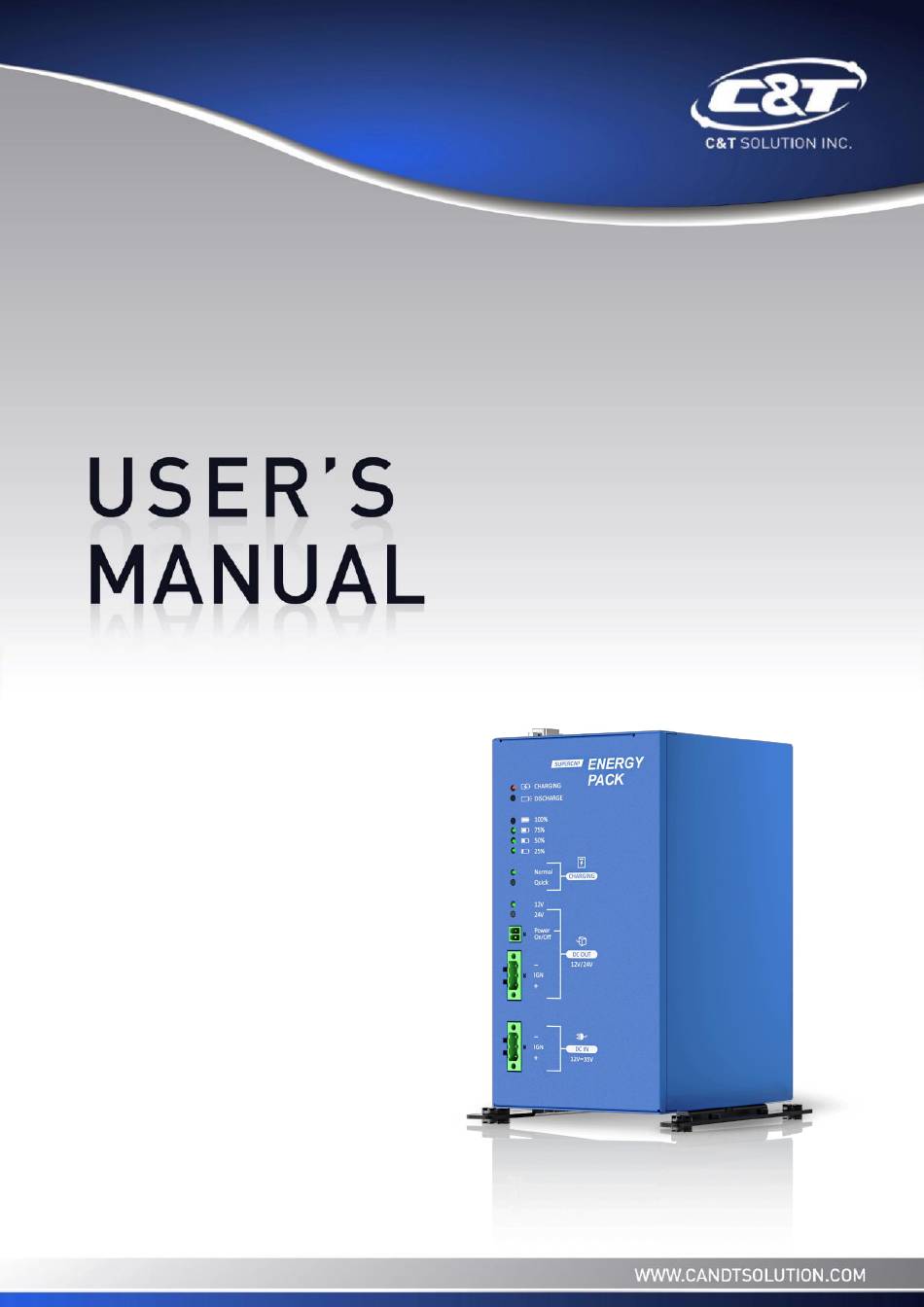

  • Page 1 ECO-1000 ENERGY PACK Industrial Supercapacitor...

  • Page 2: Table Of Contents

    ECO-1000 l User’s Manual Table of Contents Prefaces …………………………………………………….……………………………………………. 04 Revision …………………………………………………………………………………………..……………….……….. 04 Disclaimer ………………………………………………………..…….…….………………………….……………….. 04 Copyright Notice …………………………………….…………………….…………………………………………… 04 Trademarks Acknowledgment …………..………………………………………………………....04 Environmental Protection Announcement …………………………….………………….……………….. 04 Safety Precautions ………………………………………….……………………………….…………….………….. 05 Technical Support and Assistance …………………………………….…………….…………….…………….06 Conventions Used in this Manual ………………………………………………………………….….………..06 Package Contents …………………………………………………………………………………………….…………...
  • Page 3 ECO-1000 l User’s Manual Chapter 3 System Setup …………………………..…………………………………………… 88 Set torque force to 3.5 kgf-cm to execute all the screwing and unscrewing .…………………………………………………………………………………..…..…... 89 Disconnecting expansion module from computing module …………..……... 89 Removing chassis top cover ……….…………….…………………………………………….. 91 Install HDD/SSD on the internal SATA bay ……….…....………………… 92 Installing HDD on removable SATA HDD/SSD bay ..…….………….….…………..

  • Page 4: Prefaces

    Preface ECO-1000 l User’s Manual Prefaces Revision Revision Description Date Manual Released 2022/09/30 Disclaimer All specifications and information in this User’s Manual are believed to be accurate and up to date. C&T Solution Inc. does not guarantee that the contents herein are complete, true, accurate or non-misleading.

  • Page 5: Safety Precautions

    Preface ECO-1000 l User’s Manual Safety Precautions Before installing and using the equipment, please read the following precautions:  Put this equipment on a reliable surface during installation. Dropping it or letting it fall could cause damage.  The power outlet shall be installed near the equipment and shall be easily accessible.

  • Page 6: Technical Support And Assistance

    Preface ECO-1000 l User’s Manual Technical Support and Assistance 1. Visit the C&T Solution Inc website at https://www.candtsolution.com where you can find the latest information about the product. 2. Contact your distributor, our technical support team or sales representative for technical support if you need additional assistance.

  • Page 7: Package Contents

    Preface ECO-1000 l User’s Manual Package Contents Before installation, please ensure all the items listed in the following table are included in the package. Item Description Q’ty ECO-1000 Industrial energy pack system Wall Mount Kit Accessory Kit Ordering Information Model No.

  • Page 8: Chapter 1 Product Introductions

    Chapter 1 Product Introductions...

  • Page 9: Overview

    ECO-1000 right on the hardware itself using its display module to set the ECO-1000 to backup power to the computer for an extended period of time. This provides the computer enough time to safely stop running applications and execute a proper shutdown to avoid data corruption.

  • Page 10: Hardware Specification

    ECO-1000 l User’s Manual Chapter 1: Product Introductions 1.2 Hardware Specification Model ECO-1000-8S ECO-1000-16S Capacity 8x 370 Farads 16x 370 Farads Power Specification Input Voltage 12 ~ 35 VDC Input Coonector 3-pin Terminal Block (V+, GND, IGN IN) Charge mode: DC IN Voltage bypass (DC OUT = DC IN)

  • Page 11: System I/O

    ECO-1000 l User’s Manual Chapter 1: Product Introductions 1.3 System I/O 1.3.1 External I/O Mechanical Layout Front View Charging State LED Discharging State LED Power LED (100%, 75%, 50%, 25%) Normal and Quick Charging LED 12V or 24V State LED...
  • Page 12 ECO-1000 l User’s Manual Chapter 1: Product Introductions External I/O Mechanical Layout Top View LCM Status Display Screen LCM Setting button (Optional) NORMAL Mode BATTERY Mode Mode State LED State LED Reset IGN Mode Mode Switch Setting State LED...
  • Page 13 ECO-1000 l User’s Manual Chapter 1: Product Introductions 1.3.2 Charging/Discharging LED Status Supercapacitor Energy Level Front View ECO-1000 Status LED Color LED Behavior Status Description Solid DC In Charging Orange ● Flash DC In Charging + DC OUT discharging Charging...
  • Page 14 ECO-1000 l User’s Manual Chapter 1: Product Introductions 1.3.3 Charging Mode Front View Charging Mode LED Color Status Description Normal Green Normal Charge ● Quick Green Quick Charge ● Here are the recommended power adapters based on each charging mode and wattage...
  • Page 15 ECO-1000 l User’s Manual Chapter 1: Product Introductions 1.3.4 DC Output and Input Front View DC OUT LED Color LED Behavior Status Description Green 12V Output ● Green 24V Output ● Power ON/Off Yellow Blink Once Send a power on/off signal ●...
  • Page 16 • DC OUT will not discharge any power during MODE RESET Mode Switching (press the MODE RESET button) • Before changing the Operation Mode, all cables connected to the back-end system must be detached. Failure to do so might cause damage to the ECO-1000 and back-end system.
  • Page 17 DC power input (9V ~ 24V) DIN1 DIN2 DOUT1 DOUT2 The ECO-1000 remote management via its USB and COM ports can be connected with an external Laptop/Terminal Computer 8, 9 USB/COM and controlled through its GUI tool. *There can only be one remote device connected through a USB or COM port...
  • Page 18 ECO-1000 l User’s Manual Chapter 1: Product Introductions 1.3.7 LCM Description (Optional) Top View item Description LCM Display Screen ENTER button (Select or Show Next Page) LCM Setting button ESC button (Show Previous Page) ↑ Up button → Right button ↓...

  • Page 19: Mechanical Dimension

    ECO-1000 l User’s Manual Chapter 1: Product Introductions 1.4 Mechanical Dimensions Unit: mm Front View Back View...

  • Page 20: Bottom View

    ECO-1000 l User’s Manual Chapter 1: Product Introductions Mechanical Dimensions Unit: mm Top View (Optional) Bottom View...
  • Page 21 ECO-1000 l User’s Manual Chapter 1: Product Introductions Mechanical Dimensions ECO-1000-8/16S Unit: mm...
  • Page 22 ECO-1000 l User’s Manual Chapter 1: Product Introductions Mechanical Dimensions ECO-1000-8/16S-LCM (Optional) Unit: mm...
  • Page 23 Chapter 2 LCM / GUI Description...
  • Page 24 ECO-1000 l User’s Manual Chapter 1: Product Introductions 2.1 ECO-1000 Functions Guide Standard Optional Operating Category Item Note Level System Status Overview, Hardware Function HMI Function Monitor, Management Normal Backup Mode Switch Mode/Ignition Control Setting Mode/Battery Mode Mode Reset Setting...
  • Page 25 ECO-1000 l User’s Manual Chapter 1: Product Introductions 2.2 LCM Display Description 2.2.1 LCM Home Page 24N Backup Mode VI: 24.46 V PO: 23 W VO: 24.21V CE: 100% MB: PW OFF CS: Good The LCM Home Page will display the selected mode listed below.
  • Page 26 ECO-1000 l User’s Manual Chapter 1: Product Introductions • Battery Mode LCM Home Page Item Description Display 24N Battery Mode ECO-1000 Working Mode Battery Mode 24Q Battery Mode DC Out Voltage VI / Discharge Voltage In 12~35V VO / Vout Off...
  • Page 27 Chapter 1: Product Introductions ECO-1000 l User’s Manual 2.2.2 LCM Page 1 L1: Menu Display Data Edit Parameter • LCM Page 1 - Menu L1: Menu Item Description Display L1: Menu Page Menu Display Data ECO-1000 Status Edit Parameter Configure Setting L2: Display Data →...
  • Page 28 If the value is 9999(s), ECO-1000 will NOT send a shutdown signal. Set a delay time before the ECO-1000 forces to cut off the DC-OUT power Vo_Off_Dly after sending a power-off signal to the back-end system.
  • Page 29 All Set Default Load default configuration Note: Set the delay time value to 9999(s) for the ECO-1000 to not execute the delay countdown of the selected mode. • LCM Page 2 - Edit Parameter for IGN Mode L2: Edit Parameter...
  • Page 30 All Set Default Load default configuration Note: Set the delay time value to 9999(s) for the ECO-1000 to not execute the delay countdown of the selected mode. • LCM Page 2 - Edit Parameter for BATTERY Mode L2: Edit Parameter...
  • Page 31 ECO-1000 l User’s Manual Chapter 1: Product Introductions 2.3 GUI Setup 2.3.1 GUI Window SuperCAP Power Backup Status Select Connected COM Port Current Model State Common Settings Operation Mode...
  • Page 32 ECO-1000 l User’s Manual Chapter 1: Product Introductions 2.3.2 GUI Status setting • Select Connected COM Port COM1 COM2 COM3 COM4 Port Description COM X Select Connected COM Port (COM1, COM2, COM3, etc…) • Current Model State Model ID Indicator Color...
  • Page 33 LCM Version LCM's MCU Version SCP Health Note: 1. Every 24 hours, the ECO-1000's MCU updates the daily supercapacitor health. 2. Accurate supercapacitor health monitoring is supported within -25°C to 40°C temperature environments. 3. SCP Health Status provides an estimation guide for supercapacitors replacements.
  • Page 34 Battery Mode Note: Before changing the Operation Mode, all cables connected to the back-end system must be detached. Failure to do so might cause damage to the ECO-1000 and back-end system. • For Setting (Click Update button for config setting)
  • Page 35 DC-OUT Cut-off DC Out power after sending a power-off signal to the back-end system. Note: Set the delay time value to 9999(s) for the ECO-1000 to not execute the delay countdown. Ignition Control Setting Description Set a delay time before...
  • Page 36 Set the wattage (W) level that defines the ON status of the back-end PC Active Status system. Determined by (The ECO-1000 will define the back-end system as alive/ON if the wattage (W) level is above the adjusted level. Set the charging mode based on the adapter's specifications. Charging Mode Please refer to the Adapter Configurations below.
  • Page 37 DC-OUT device. Continue? switching the DC-OUT voltage selection. Setting Description Export Config Export file with ECO-1000's pre-selected settings and parameters. Load Config Import file with ECO-1000's pre-selected settings and parameters. Firmware Update Update ECO-1000's MCU/LCM Firmware. Load Default...
  • Page 38 Chapter 1: Product Introductions 2.4 GUI/LCM Comparison table 2.4.1 Computer GUI Settings Note: ECO-1000's GUI Settings software is downloadable on C&T's product page. Visit the ECO-1000 product page at www.candtsolution.com and download the GUI driver to install on your computer.
  • Page 39 ECO-1000 l User’s Manual Chapter 1: Product Introductions 2.4.2 LCM Settings Name Attached below is how the Computer GUI settings are represented on the ECO-1000's LCM Display Setting. Computer GUI Settings LCM Display Settings vo_on_dly Vio_mb_off vo_off_dly ign_on_dly ign_mb_off Vo_off_dly...
  • Page 40 Chapter 3 System Setup...
  • Page 41 3.1.1 Normal Backup Mode Normal Backup Mode • ECO-1000's DC IN port receives power from a power adapter connected to an AC power plug. • ECO-1000's DC OUT port sends power to the connected system. ECO-1000 connects to PWR BTN (power button) to send power ON/OFF signal.
  • Page 42 ECO-1000 connects to PWR BTN (power button) to send power ON/OFF signal. • ECO-1000 automatically detects power outages/ignition signal and provides power backup.​ ECO-1000 has a programmable delay time setting for power backup and a power button/ignition control (ON/OFF) of the connected system.
  • Page 43 ECO-1000 l User’s Manual Chapter 2: System Setup 3.2 Compatible List ECO-1000 Support Model List Model Series Note Fanless Mini Rugged 1000 1000-EHL Computers Compact High-Performance 3400 3600 3000-CFL 3000-CML Fanless Computers AI Edge Inference Computers 6000 6100 6000-CML BCO-2000 w/ Customized...
  • Page 44 ECO-1000 l User’s Manual Chapter 2: System Setup * Related Models Must Have Following Functions/Settings: 1. DC In 12/24 Voltage Input 2. With Remote Power SW 3. With AT Mode 4. Windows Power Button Setting (Under Windows) Power button settings...
  • Page 45 ECO-1000 l User’s Manual Chapter 1: Product Introductions 3.3 Installing wall mount kit 3.3.1 Wall Mounting (Bottom View) Lock the wall kit with 8 screws...
  • Page 46 ECO-1000 l User’s Manual Chapter 1: Product Introductions 3.3.2 DIN Rail Mounting (Optional) (Back View) Lock the wall din rail mount kit with 8 screws...
  • Page 47 Chapter 4 Cable Routing Guide...
  • Page 48 2.3 Normal Backup Mode 2.3.1 ECO-1000 → VIO-W224R/PC400 item item Power Adapter Cable DC OUT Power Cable Power Switch Cable 2.3.2 ECO-1000 → RCO-1000-EHL → Display item item Power Adapter Cable DC OUT Power Cable Power Switch Cable DP Cable...
  • Page 49 2.4.1 ECO-1000 → VIO-W215R/PC400 item item Power with IGN signal Y Cable DC OUT Power Cable Power Switch Cable 2.4.2 ECO-1000 → WCO-3400 → Display item item Power with IGN signal Y Cable M12 Power Cable M12 Power Switch Cable (Optional)
  • Page 50 2.5.1 ECO-1000 → SIO-W215R item item Power Cable M12 Power with IGN signal Y Cable Power Switch Cable 2.5.2 ECO-1000 → RCO-3400 → Display item item Power Cable DC OUT with IGN signal Y Cable Power Switch Cable DP Cable or VGA Cable...
  • Page 51 Copyright © C&T Solution Inc. All Rights Reserved www.candtsolution.com...

This manual is also suitable for:

Eco-1000-8sEco-1000-16s
