Toshiba XM-6702B CD-ROM
Setup
The following steps must be performed to properly install your CD-ROM:
Set CD-ROM Drive Jumper Settings
Connect Audio Cable
Attach IDE BUS Cable
Attach Power Cable
Mount CD-ROM
Jumper Settings
The mode select jumpers are 6 straight angle pins located on the rear of the CD-ROM.
By placing a jumper on the pins, you can select the following functions:

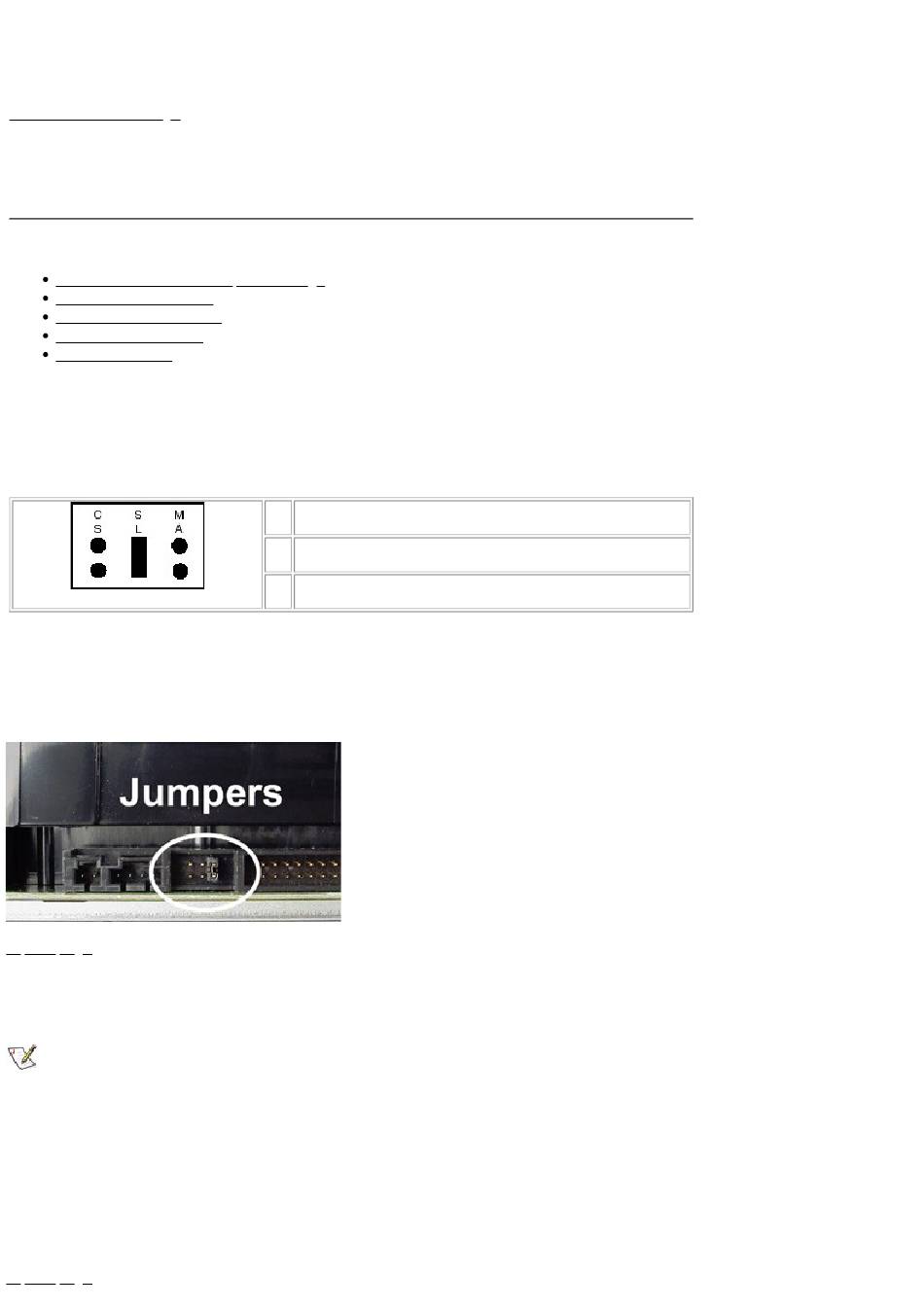

Figure 1.Mode Select Jumper
In most installations, jumper should remain in the MA position (factory default). It is recommended that
you install your CD-ROM only on the secondary IDE BUS. If you are installing on primary IDE BUS, your
hard drive would then be the Master, and you should set your CD-ROM to the Slave position (SL).
Figure 2.Jumper Locations
top of page
Placing CD-ROM inside your Computer
Now that you have set the jumpers, you are ready to install your CD-ROM inside your computer.
Important Note: Disconnect power from your computer system before beginning
installation.
Remove computer cover and faceplate if required. Refer to your computer system's manual for removal
information.
Your Toshiba CD-ROM can be placed in any free half-height drive slot at the front of your computer. (It can
be mounted horizontally or vertically.)
Carefully start sliding the CD-ROM into the opening with the disc tray facing the front of the computer.
Before you push the drive all the way in you will need to connect the IDE BUS cable, Audio cable and the
Power cable on the back of the drive.
top of page
CS Drive is configured using host interface signal CSEL
SL Configures drive as Slave (default mode)
MA Configures drive as Master
