Installation Instructions
JB005
Junction Box
PRODUCT FEATURES

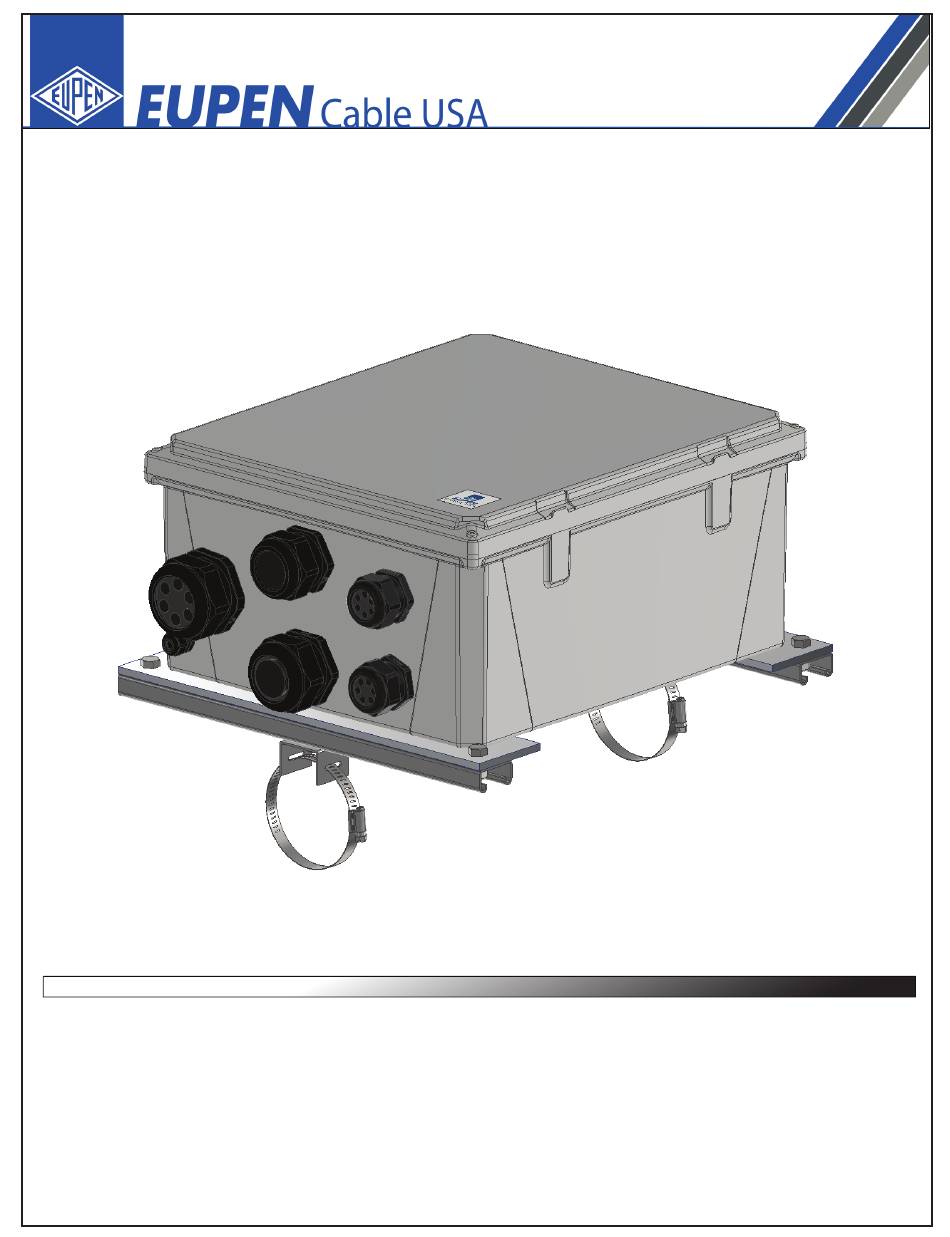

● Provides (6) Discrete circuits for (1) 1-1/4" or (1) 7/8" hybrid feeder cable
● Supports up to (6) individual 11 mm DC power jumpers
● Supports up to (12) individual 6.5 mm fiber jumpers
● Junction box can be wall mounted, pole or leg mounted, tower face mounted, monopole mounted
130-00017-00 REV A
Advertisement
Chapters
Table of Contents
Related Manuals for Eupen JB005
Summary of Contents for Eupen JB005
- Page 1 Installation Instructions JB005 Junction Box PRODUCT FEATURES ● Provides (6) Discrete circuits for (1) 1-1/4" or (1) 7/8" hybrid feeder cable ● Supports up to (6) individual 11 mm DC power jumpers ● Supports up to (12) individual 6.5 mm fiber jumpers ●...
-
Page 2: Table Of Contents
Table of Contents Disclaimer ..............2 Warnings ..............2 Package Contents ............3 Required Tools ............. 3 Prerequisites ..............4 Wall/Surface Mounting Procedure ....... 4 Pole or Leg Mounting ..........5 Tower Face Mounting ..........6 - 7 Monopole Mounting ............ 8 - 10 Port Identification ............ -
Page 3: Disclaimer
ATTENTION – Installation of the hybrid cable requires an approved hanger to be used no more than 3 feet from the entrance of the junction box. Refer to Eupen Cable USA, Inc. installation guidelines for proper hardware use and placement. -
Page 4: Package Contents
Contents Mounting Bracket Assembly JB005 Junction Box Assembly (4) 3/8-16 x 1” Hex Bolts (4) 3/8 x 1” OD Washers (2) Mounting Brackets (4) 3/8-16 Locknuts Wall Mount Drill Template (2) 2” - 4” (51-102mm) Dia Pipe Clamps Required Tools... -
Page 5: Prerequisites
Prerequisites This document describes how to install the JB005 junction box on-site and how to mount, and connect it to external interfaces. Installers of junction box must be industry professionals who have attended training on the proper installation of the equipment by Eupen Cable USA, Inc. and/or the mobile operator. Installers are required to read this installation guide thoroughly prior to installation of the product. -
Page 6: Pole Or Leg Mounting
Pole or Leg Mounting • Attach Mounting Bracket Assembly to top and bottom junction box mounting plates using (4) supplied 3/8-16 Hex Bolts, Flat Washers and Locknuts. (Figure A) 3/8-16 Hex Bolt, Flat Washer Mounting Bracket & Locknut Assembly Figure A •... -
Page 7: Tower Face Mounting
Tower Face Mounting JB005 is designed to allow the assembly to be mounted to either a tower face cross member using supplied Mounting Bracket Assembly, or across a large tower face using supplied Mounting Brackets and longer length unistrut channel (Not Supplied) Horizontal Tower Cross Member: •... - Page 8 Attach longer length 1-5/8” unistrut channels to junction box as noted in Figure A and install Mounting Brackets into channels at required spacing. Rotate Mounting Brackets to tighten into place. JB005 is supplied with two pipe clamps. Two additional pipe clamps (not supplied) will be required for this method of installation.
-
Page 9: Monopole Mounting
Monopole Mounting • Attach Mounting Bracket Assembly to top and bottom junction box mounting plates using (4) supplied 3/8-16 hex bolts, flat washers and locknuts. (Figure J) 3/8-16 Hex Bolt, Flat Washer Mounting Bracket & Locknut Assembly Figure J • Loosen attached Mounting Bracket and slide bracket to left to line up bracket bolt center with Locator Holes in mounting plate. - Page 10 Monopole Mounting (Continued) • Take supplied Mounting Bracket and insert into unistrut channel. Rotate the channel nut 90° to the right to lock channel nut into channel but don’t tighten. Repeat process for bottom Mounting Bracket (Figure L) NOTE: When installing channel nuts, ensure nut is fully rotated to the right and grooves in nuts are...
-
Page 11: Port Identification
Monopole Clip P/N: MT-641 (100 pk) Tool P/N: MT-644 For more information please contact Figure N Eupen Cable USA Customer Service 1 (800) 419-5100 Port Identification See Figure P to identify junction box port locations. • NOTE: Ports are positioned on bottom of junction box, and must always be mounted facing down. -
Page 12: Installing Ground Cable
Installing Ground Cable • Remove port gland nut and slide onto cable before inserting through port gland. • Feed main ground wire through GND (OUT) port. Strip jacket and secure to second terminal of ground bar. (Figure R) • Once ground wire is secured, thread gland nut back onto port gland hand tight. BASE NOTE: Do not use a wrench to tighten gland nut. -
Page 13: Installing Hybrid Cable Dc Power (In)
Installing Hybrid Cable DC Power (IN) • Remove appropriate port gland nut and slide onto cable before inserting through port gland. • Feed hybrid cable through either the 7/8” or 1-1/4” Hybrid Trunk (IN) port starting with fibers. (Figure S) •... -
Page 14: Installing Dc Power Jumpers (Out)
Installing DC Power Jumpers (OUT) • Remove port gland nut and slide over all power jumpers before inserting into gland insert and port gland. • Remove gland insert and insert power jumpers through each of (6) insert holes. (Figure T) •... -
Page 15: Installing Hybrid Cable Fiber (In)
Installing Hybrid Cable Fiber (IN) • Loosely loop all fibers around the top corner of the junction box as shown, Connect each fiber into fiber panel starting with the bottom (Base) row, left side and working to the right, then start on second (Top) row. Fiber position and fiber color label provided for reference (Figure U) •... -
Page 16: Installing Fiber Jumpers (Out)
Installing Fiber Jumpers (OUT) • Remove each port gland nut and slide over (6) fiber jumpers before inserting into gland insert and port gland. • Remove gland insert and insert fiber jumpers through each of (6) insert holes in either top or bottom Fiber Jumper (OUT) Trunk port. -
Page 17: Finalizing Installation
Finalizing Installation • To finalize installation, ensure all ground and power terminal screws are securely tighened to prevent wires from coming loose. Ensure all port gland nuts are hand tighened to secure cables and wires from slipping out. • Junction Box cover is supplied with factory installed captivation washers to prevent cover screws from falling out. - Page 18 Cable experience you can trust...
