5. OPERATION
5.1. Before using the truck you must read and understand the safety instructions in Section 1. The truck
should only be operated by those persons who have been trained in its use.
WARNING! Always transport a load with the pallet raised from the ground by only 20 to
‰
30mm.
WARNING! Pallets with an enclosed entry should not be used for lifting a load as the scissor
‰
action of the jack will force the woodwork apart. Only Euro type pallets can be used to raise
a load.
5.2. The operator must be physically capable of pushing or pulling the load and must also be capable of
stopping a rolling load.
5.3. Before lifting any load the operator should check that the pallet is the correct width and length for
the truck and that the pallet itself is not damaged.
5.4. DAILY INSPECTION
5.4.1. This section describes pre-shift checks before putting the truck into operation.
5.4.2. Daily inspection is effective to find the malfunction or fault on the truck and can maximize the
lifetime.
5.4.3. Check the truck on the following points before operation.
- Remove load from truck and lower the forks to the lowest position.
DO NOT USE THE TRUCK IF ANY MALFUNCTION OR FAULT IS FOUND.
8
- Visually check for structural deformation or cracks of arms, forks, or any other component, an unusual noise or binding of the lifting
mechanism.
- Check if there is any oil leakage.
- Check the vertical creep of the lifting mechanism.
- Check the smooth movement of the wheels.
- Check if there are any particles or damages on the wheels.
- Check if all the bolts and nuts are tightened firmly.
- If equipped, check the brake.
- Verify that all labels are in place.
5.5. OPERATION
5.5.1. The operator should ensure that the load on the pallet is safe to move. If the load appears to be loosely stacked, unevenly distributed, too
high or too wide it should be repacked safely before moving. Also check that the weight of the load is within the capacity of the truck.
5.5.2. Lowering the truck. Before inserting the truck into the pallet ensure that the truck forks are in their lowest position by pulling the operating
lever into the upper position and holding it there until the truck has settled down to the lowest level.
5.5.3. Slow lift position. The lever can now be released and will return to the middle position. Push the truck into the pallet ensuring that it is fully
inserted. If the pallet is shorter than the forks the load should be placed at the centre point of the length of the forks.
5.5.4. Pump the handle to raise the load slightly in preparation for transporting the load. When the handle is pumped in this position the load only
rises slowly. Always transport a load with the truck in the lowest position.
5.5.5. Due care should be taken when manoeuvring a load to ensure that no collision takes place with any objects or people.
5.5.6. The faster the truck is moved the more difficult it will be to stop. Therefore proceed at a slow and even pace.
5.5.7. Bring the truck to a stop where required and lower the load to the floor by pulling the operating lever to its highest position and holding it

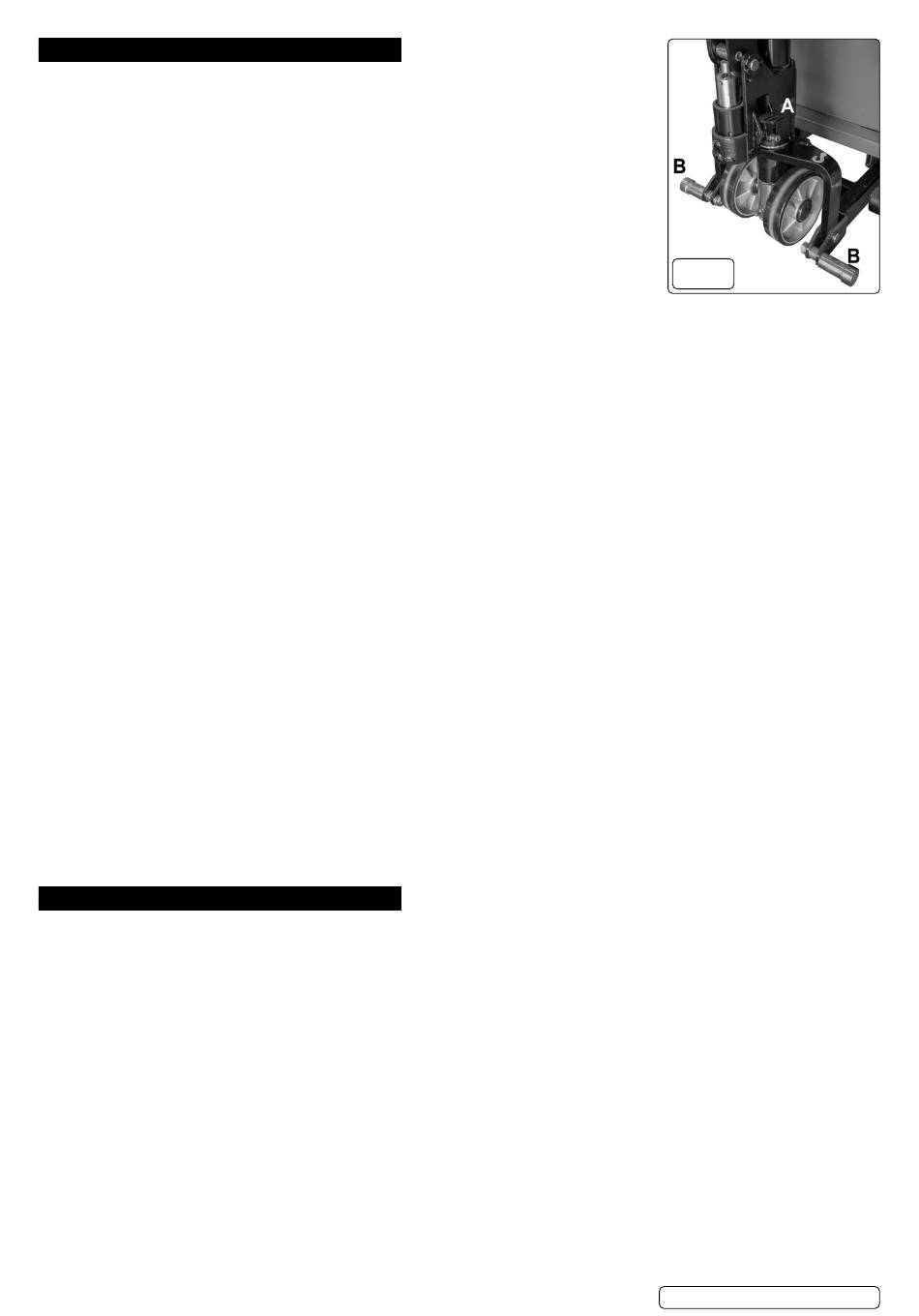

there until the load has settled to the floor. Alternatively the load can be lowered by pressing the foot pedal (fig.3.A).
5.5.8. It is not recommended that the load is lowered whilst the truck is still moving as a sudden stop may dislodge the load causing damage to
property and/or people.
5.5.9. Quick lift position (fig.2.3). To lift a pallet quickly push the operating lever to its lowest position where it will latch.
5.5.10. Pump the handle up and down to lift the load. When the forks reach their maximum height the lifting action will stop even if you continue
to pump the handle. As the load rises the stabilising pins attached to the legs either side of the wheels (fig.3.B) will begin to make contact
with the ground. Above the height of 300mm the rear wheels are no longer in contact with the ground. This is a safety feature designed to
prevent the moving of the load when the forks are raised to a high level.
5.5.11. When the truck is not in use, lower the forks and park the truck where it will not be a hazard.
6. MAINTENANCE
6.1. Only qualified and trained personnel are allowed to maintain this truck.
6.2. If anything goes wrong with the pallet truck it must be removed from service immediately.
WARNING! Before servicing the truck, remove the load and lower the forks to the lowest position. Completely immobilize the truck
‰
before working on components that might pinch fingers or hands if movement were allowed.
6.3. Use approved and original spare parts.
6.4. Be aware that oil leakage of hydraulic fluid can cause failures and accidents.
6.5. Adjustments to the pressure valve only from trained service technicians.
6.6. All bushings and bearings have been lubricated at the factory. To increase their life, regular maintenance is recommended. Using the
appropriate grease for the application and lubricate each grease fitting every 6 months.
6.7. Harsh environments may require more frequent maintenance.
6.7.1. Maintenance Checklist
DAILY see 5.4
MONTHLY
All bearings and shafts are provided with long- life grease at the factory. Long-life grease should be applied to the lubrication points at
monthly intervals or after each time the truck is cleaned.
Clean off dirt and debris.
EVERY THREE MONTHS
Clean the dust from the surface of the release valve (part no. 321 on Parts List).
ANNUALLY
Change the oil (more frequently if colour has substantially darkened or feels gritty). Use Sealey hydraulic oil or one that conforms to it.
Check all parts of the truck for wear and replace defective parts where necessary.
