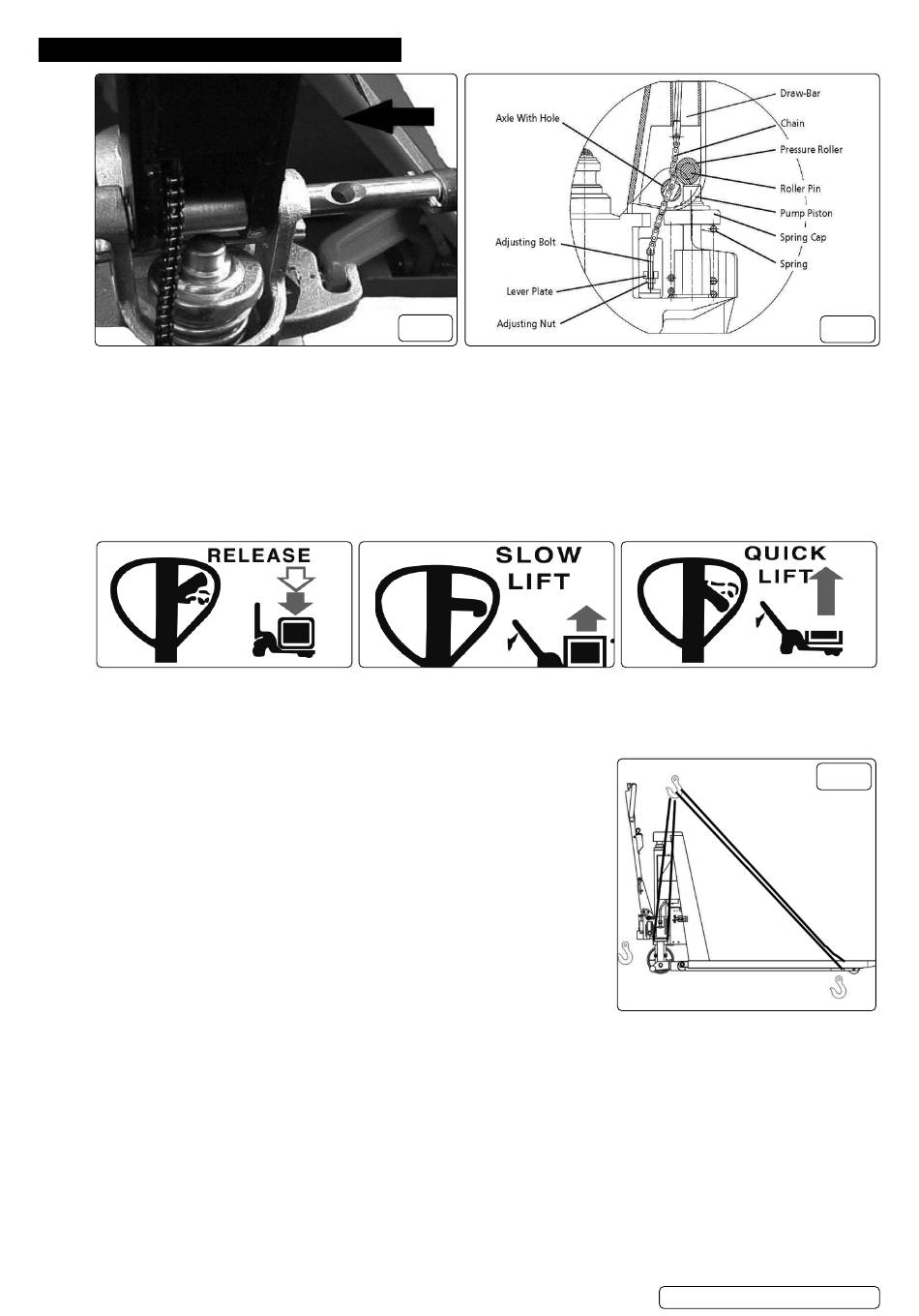

4. ASSEMBLY
4.1. Insert the tiller arm (1) into the pump piston, then use a hammer to insert the axle with hole into the hydraulic pump and tiller, arm from
right to left (fi g.2).
4.2. Set the control lever on the handle to the LOWER position, then pass the adjusting nut, adjusting bolt through the hole in the axle
(fi g.3).
4.3. Press the tiller arm down and remove the pin (fi g1.2).
4.4. Set the control lever on the handle to LIFT position and then raise the lever plate (fi g.3) with the pin (fi g1.2) and insert the adjusting bolt
(fi g.3) into the front slot of the lever plate.
Note: Keep the adjusting nut under the lever plate.
4.5. Use a hammer to insert the second dowel pin (fi g.1.5) into the second hole of the axle. The tiller arm is now assembled to the pump.
4.6. CONTROL LEVER AND HYDRAULIC VALVE ADJUSTMENT
1 - LOWER handle up, lever moves back
to neutral when released
4.6.1. If necessary the lever can be adjusted according to the following steps:
1 - If the forks do not elevate whilst the control lever is in the SLOW LIFT position or
QUICK LIFT position, turn the adjusting nut clockwise until the SLOW LIFT and the
QUICK LIFT position works properly
2 - If the forks do not lower whilst the control lever is in the LOWER position, turn the
adjusting nut clockwise until the LOWER position works properly
3 - If the forks do not lift slowly whilst the control handle is in the SLOW LIFT position,
turn the adjusting nut clockwise until the SLOW LIFT position works properly
4 - If the forks do not lift quickly whilst the control handle is in the QUICK LIFT position,
turn the adjusting nut anticlockwise until the QUICK LIFT position works properly.
4.7. LIFTING & TRANSPORTING
WARNING! USE DEDICATED CRANE AND LIFTING EQUIPMENT
‰
DO NOT STAND UNDER THE SWAYING LOAD
8
DO NOT WALK INTO THE HAZARDOUS AREA DURING LIFTING
8
4.7.1. Park the truck securely and lash the truck according to the points identifi ed in fi g.4
4.7.2. Lift the truck to its destination and
4.7.3. Place the truck securely before removing the lifting gear.
4.7.4. The lashing points are according to the fi g.4
4.7.5. For transportation, remove the load, lower the truck to the lowest position and lash it safe with dedicated lashing straps.
© Jack Sealey Limited
fig.2
2 - SLOW LIFT handle in centre position
Original Language Version
fig.3
3 - QUICK LIFT handle down
fig.4
