Omron CJ1W-NC113 Datasheet

CJ1W-NC@@3
Position control units
Point-to-point positioning controller with
pulse train output
• Position control units with 1, 2 or 4 axes
• Positioning can done by direct ladder commands
• Position and speed control
• Linear interpolation
• Interrupt feeding function
• Positioning of 100 points done from memory
• S-curve acceleration/deceleration, origin search,
backlash compensation, and other features are also
supported.
• Positioning data is saved in internal flash memory,
eliminating the need to maintain a backup battery.
• Use Windows-based support software
(CX-position) to easily create positioning data
and store data and parameters in files.
Function
These position control units support positioning control via pulse-train outputs. Positioning is performed using trapezoid al or
S-curve acceleration and deceleration. Models are available with 1, 2, or 4 axes control, and can be used in combination with
servo drives or stepping motors what accept pulse-train control.

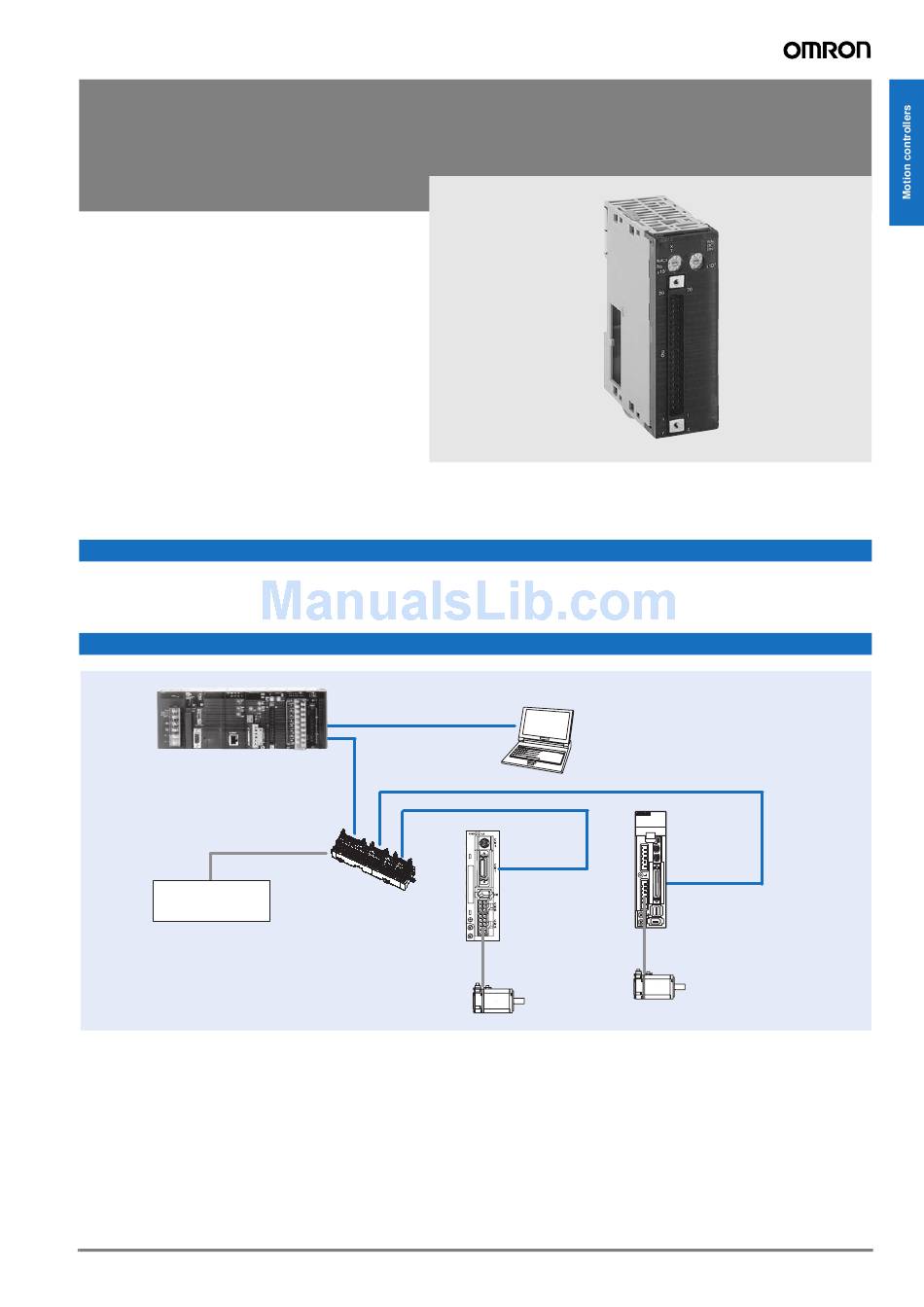

System configuration
Position control unit
Input
Emergency stop input,
home and limit switches
Position control units
CJ1 series
CJ1W-NC__3
Servo
relay unit
G-Series
Servo motors
Personal computer
software: CX-One
SmartStep 2
Servo drive
I/O signals
(CN1 connector)
K
Pos
unit
Accurax G5
Servo drive
I/O signals
(CN1 connector)
Accurax G5
Servo motors
47
