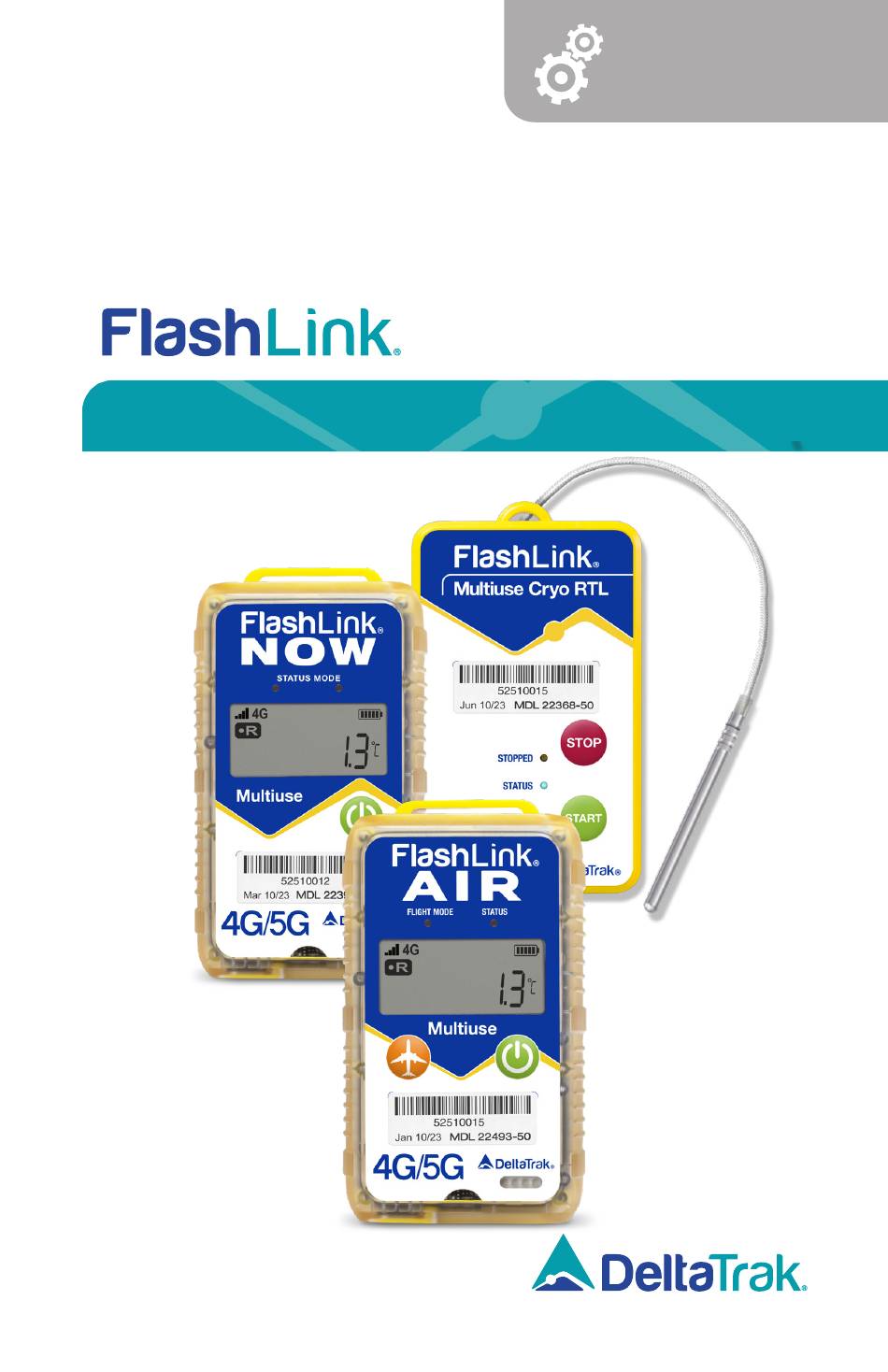

- Page 1 Quick Start Guide Models 22392-5X, 22493-5X, 22368-5X RTL Real-Time Multiuse Data Loggers...
-
Page 2: Button Functions
Button Functions LED indicator light Power Button (Start/Stop) Device ID, manufacture date, model number Micro USB port LCD display window Charging the Battery When battery is depleted, Fully charge the Multiuse RTL Data charge for 4 hours until battery level icon shows Logger before every use. -
Page 3: Lcd Display Indicators
Start Delay Unit C or F Humidity Decimal Point Colon Measured Value Recording Cloud Service Contact Go to flashtrakrtl.com and sign in using the username and password provided to you by DeltaTrak. If you do not have one, please contact Techsupport@deltatrak.com... - Page 4 Setting Up a New Shipment In the Dashboard click the New Shipment button at the top left above the Active Shipments panel. Select the Device ID and select the device trip number you would like to activate. Shipment ID is available for you to enter a personal reference. At this point, you can either select a Shipper from the drop down list or click New Shipper to create a new one.
- Page 5 Press and hold the START/POWER button until START is displayed on the LCD screen. If no LCD is present then a blue LED will flash. The device is now active. (Use the default alarm thresholds or change the alarm thresholds via Deltatrak web app flashtrakrtl.com).
-
Page 6: Checking The Data
3. Checking the Data Data is logged every 5 minutes, and uploaded to the cloud service every 15 minutes, as long as there is a cellular connection. When there is no cellular connection, the data is recorded in memory. When the cellular connection is re-established, the RTL logger will upload all data points stored since the last upload. -
Page 7: Troubleshooting
5. Reports • Download from Logger: When the trip recording is stopped, the device will generate a PDF report automatically. Use a USB cable to connect to the PC. Location data is not recorded in logger memory, and therefore will not show on this report. - Page 8 DeltaTrak Corporate P.O. Box 398 Pleasanton CA 94566 (925) 249-2250 (800) 962-6776 www.deltatrak.com DTI Mexico International Guadalajara, Mexico +52-33-3188-3161 / 36712190 www.deltatrakmexico.com DTI South America SA Santiago, Chile +562 2758 2866 +569 7477 1061 www.deltatraksouthamerica.com DTI China Limited Shenzhen China...
