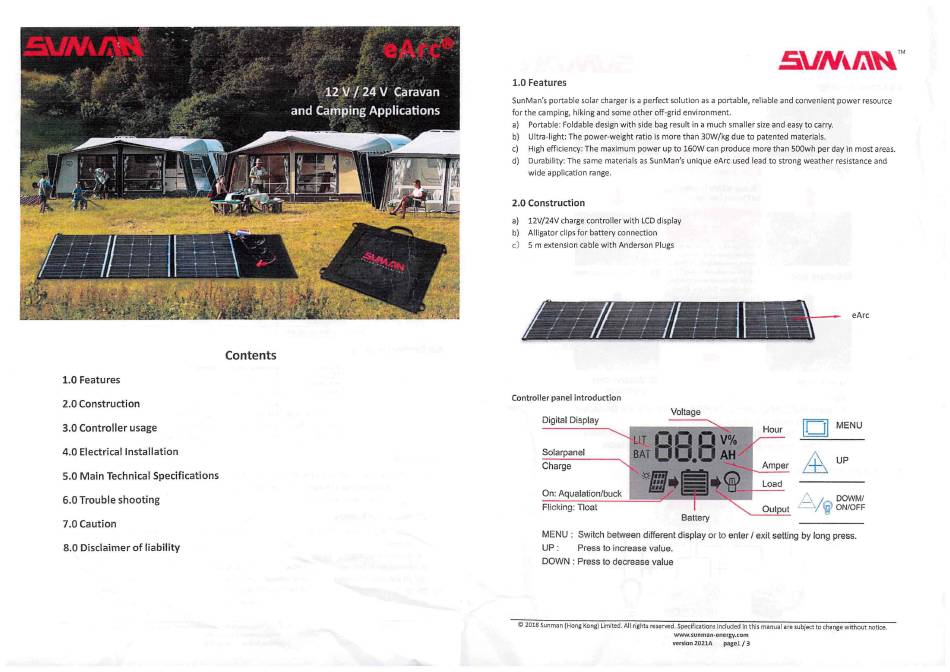

Sunman eArc SMF235M-12 Manual

1.0 Features
2.0 Construction
3.0 Controller usage
4.0 Electrical Installation
5.0 Main Technical Specifications
6.0 Trouble shooting
7.0 Caution
8.0 Disclaimer of liability
Contents
5.VN\f!~"'
1.0 Features
SunMan's portable solar charger is a perfect solution as a portable, reliable and convenient power resource
for the camping, hiking and some other off-grid environment.
a) Portable: Foldable design with side bag result in a much smaller size and easy to carry.
b) Ultra-light: The power-weight ratio is more than 30W/kg due to patented materials.
c) High efficiency: The maximum power up to 160W can produce more than S00wh per day in most areas.
d) Durability: The same materials as SunMan's unique eA rc used lead to strong weather resistance and
wide application range.
2.0 Construction
a) 12V/24V charge controller with LCD display
b) Alligator clips for battery connection
c) 5 m extension cable with Anderson Plugs
eArc
introduction Controller panel.
Digital Display
Solarpanel
L JI_
88
~
IOI
MENU
BAT
8
V%
j
Hour
Charge
• Aff /
-
------
ffi
UP
I'
Ll/ii
DOWM/
ON/OFF
MENU : Switch between different display or to enter/ exit setting by long press.
UP : Press to increase value .
DOWN : Press to decrease value
© 2018 Sunman {Hong Kong) Lim ited. All rig hts reserved . Specifications included in this manual are subject to change without notice.
www.sunman-energy.com
version
20 21A
page!/ 3
