Installation

1

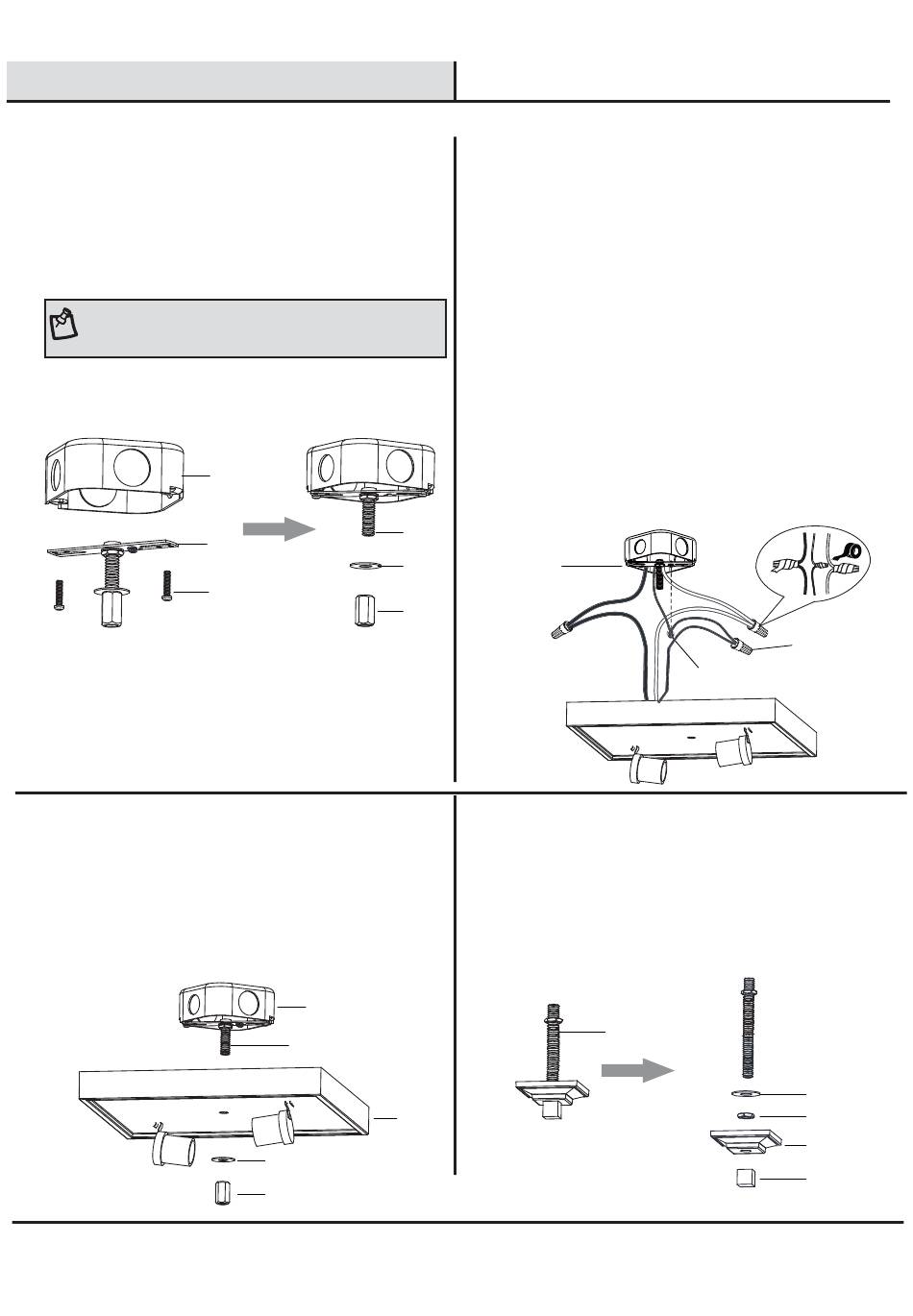

Installing the crossbar assembly
□
Secure the crossbar assembly (AA) to the outlet box (not
included) with the outlet box screws (BB). Tighten until snug.
□
Remove the flat washer (1) and the coupling (2) from the
crossbar assembly (AA) and keep the flat washer (1) and the
coupling (2) for later use.
NOTE: The preassembled mounting nipple on the
crossbar should protrude outward.
3
Attaching the fixture body to the
outlet box
□
Attach the fixture body (A) and the flat washer (1) to the
crossbar assembly (AA).
□
Secure with the previously removed coupling (2).
Outlet box
AA
BB
Outlet box
AA
1
2
2
Making the electrical connections
* Use wire connectors (CC) to connect the wires.
□
Ground Wire:
□
Wrap the supply ground wire around the green ground
screw on the crossbar assembly (AA), no less than 2 in.
from the end of the wire. Tighten the ground screw.
□
Connect the fixture ground wire to the supply ground wire
with a wire connector (CC).
□
Supply Wire:
□
Connect the supply white wire to the white fixture supply
wire with a wire connector (CC).
□
Connect the supply black (or red) wire to the black fixture
supply wire with a wire connector (CC).
□
Wrap each connection with approved electrical tape and
carefully insert all of the connected wires into the outlet
box.
AA
1 AA
2
4
Preparing the shade
□
Remove the flat washer (3), the hex nut (4), the cap (5) and
the finial (6) from the stem assembly (C) and keep the flat
washer (3), the hex nut (4), the cap (5) and the finial (6) for
later use.
A
5
Please contact 1-800-986-3460 for further assistance.
