- Page 1 Viking VK03 Motif Laser USER MANUAL...
- Page 2 SAFETY NOTES ANIMATION LASER SHOW SYSTEM SAFETY NOTES Thank you very much for choosing our product, for your safety, please read the laser safety instruction and this manual carefully before your operation. This manual includes installation and user information. Please install and operate the laser according to the requirements of this manual and safety guidelines. DO NOT OVER DRIVE THE SCANNERS.
- Page 3 Introduction Laser lighting products are used to create some of the most vivid and striking visual effects, and are often noted for how they seem to produce solid shapes that cut through the air, and pick up highly defined swirling smoke patterns.
- Page 4 requirement of the product meeting CE approvals. The important ones are listed below: 1) Laser Safety Warning Labels 2) Emissions Indicator 3) Remote Interlock Connector Audience Scanning Audience Scanning is the term commonly used to describe when laser effects are being directly aimed at the viewing audience.
- Page 5 Notice: 1. Avoid direct eye exposure to the Laser Beam. Never intentionally expose your eye or others to direct laser beam. It an potentially cause instant eye injury or blindness if laser beam striking directly to eyes. 2. Don’t point onto any oncoming pedestrians, vehicles or traffic routes from land, sea or air.
-
Page 6: Technical Specification

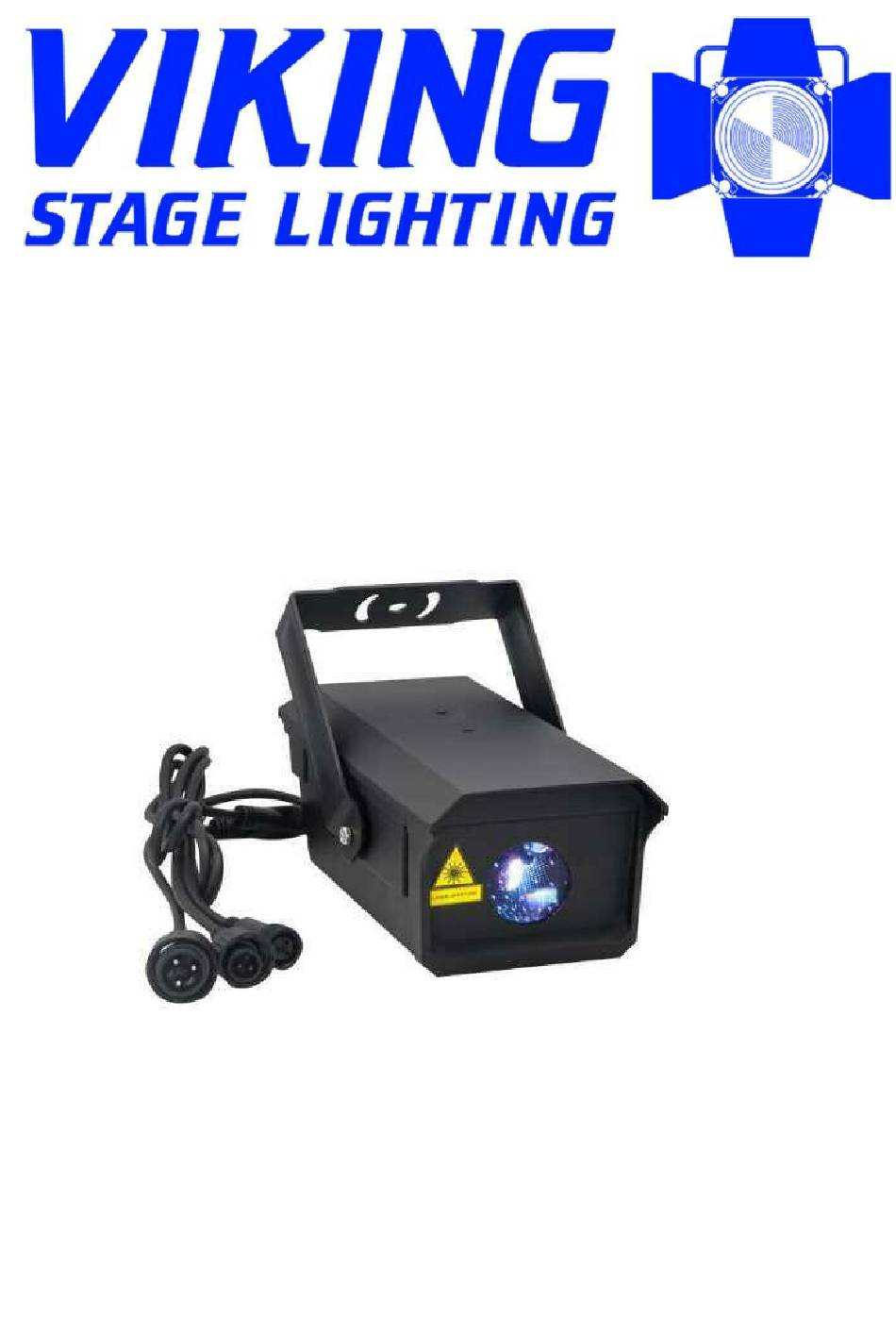

Features 1. Full-color outdoor animation laser light with IP65 waterproof housing. 2. Fit for outdoor permanent installation and all weather. 3. More than 200 kinds of beam and graphics built inside the laser. 4. The laser can be set in automatic display mode. Also can be set in DMX mode. When in DMX mode, users can use DMX controller to choose the patterns and the effects they prefer to edit their own program show. - Page 7 Machine Pictures The following pictures are for your reference only, the specific kind prevail. Front Panel Picture Laser Aperture 1. Laser aperture: Don't look at the laser aperture, avoid laser shoot at the eye. Rear Panel Picture LED Display Menu Key Enter Key DMX Cable Power Cable...
- Page 8 LED Menu Function Primary Menu Sub Menu Third-level Menu A001 001 (DMX Address 001-511) (DMX mode) Auto (all list, default) (Auto mode, default ) L001 (list 1: animation 1) L002 (list 2: animation 2) L003 (list 3: line pattern+ animation) L004 (list 4: line pattern) SoUd (all list, default)
-
Page 9: Dmx Operation
8-AS (Master setting) 9-LH (Led display setting) ON (Always ON) 15S (15 seconds ON, then OFF) ILdA (ILDA-RJ45 signal selection ) DMX: DMX-512 mode, control with DMX512 signals. The LED shows the current mode and DMX address. SoUd: Sound active mode, play built-in music/sound programs. Auto: Auto mode, Play built-in auto programs. - Page 10 000 ～255 X Position Horizontal position selection, value 128 is the central position and valid when CH3 is 1 ～255 000 ～255 Y Position Vertical position selection, value 128 is the central position and valid when CH3 is 1 ～255 000 ～255 Pattern Selection Select an effect or pattern from the effect and...
- Page 11 PRO/ professional mode 34CH Channel Function Value Description 000 ～000 Laser ON/OFF Laser OFF 001 ～255 Laser ON 000 ～010 Strobe No strobe 011 ～255 Auto strobe, strobe speed from low to fast 000 ～255 Adjust XY size, The pattern is not in the center after Pattern Size XY the adjustment.
- Page 12 0～7 Patterns library 1, animation pattern is the main Effects and Patterns Patterns library 2, animation pattern is the main 8～15 Library 16 ～23 Effects library, geometric pattern effect is main, CH11~CH34 invalid, only one set of patterns 24 ～255 Static pattern library(CH6:146~147 is single point) 000 ～026 Auto Trigger...
- Page 13 064 ～127 CH18 X Wave speed selection 128 ～192 Y Wave Y Wave speed selection 192 ～255 Y Wave speed selection Below is the second set of pattern(pattern two) channel controls, the unit has pattern when CH23 does not equal to zero 000 ～010 CH19 Strobe...
- Page 14 128 ～255 Dot Scanning Speed Adjust dot scanning speed Patterns library 1, animation pattern is the main 0～7 CH26 Effects and Patterns 8～15 Patterns library 2, animation pattern is the main 16 ～255 Library Static pattern library(CH23:146~147 is single point) 000 ～127 Rotation Angle Selection 128 ～191...
