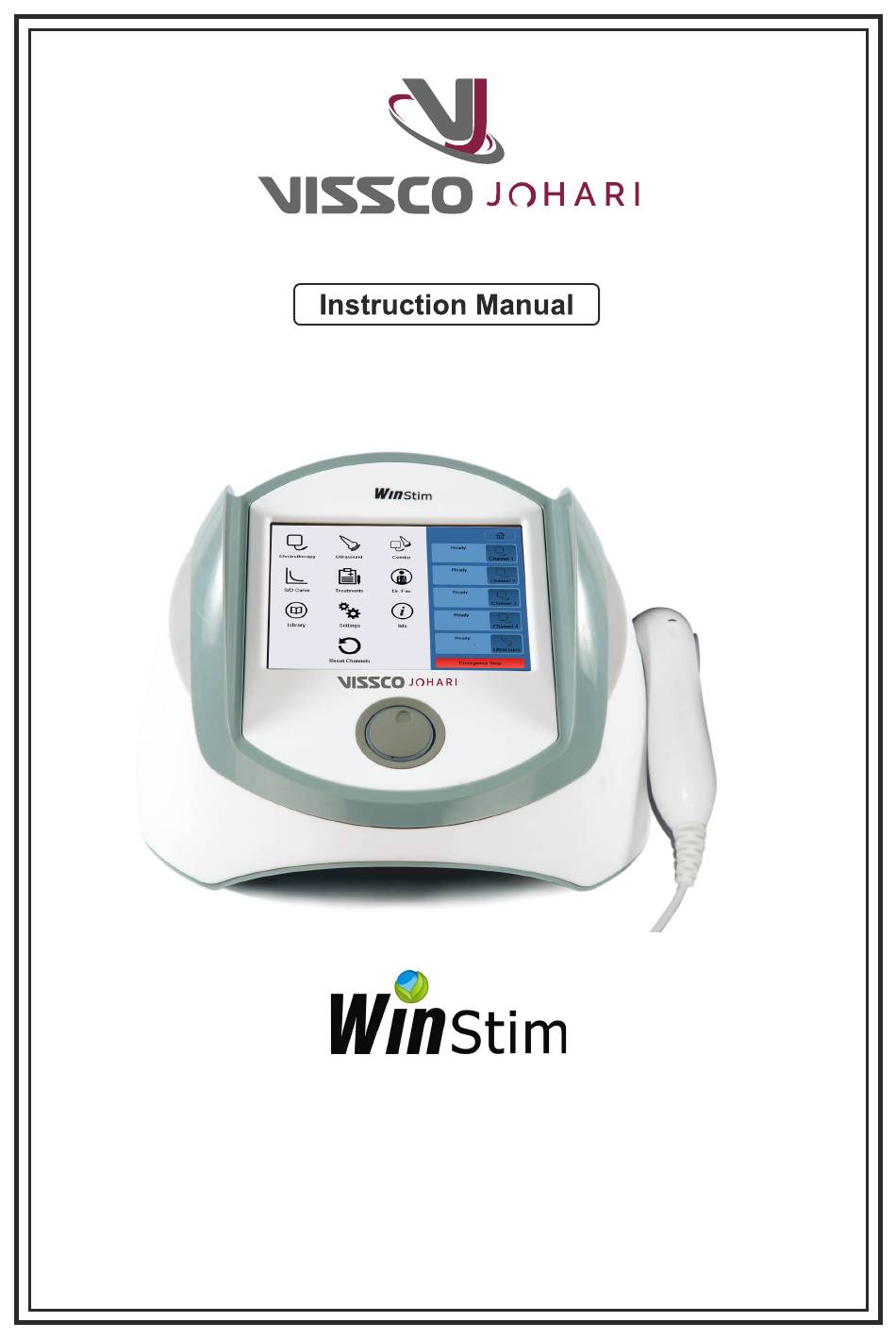

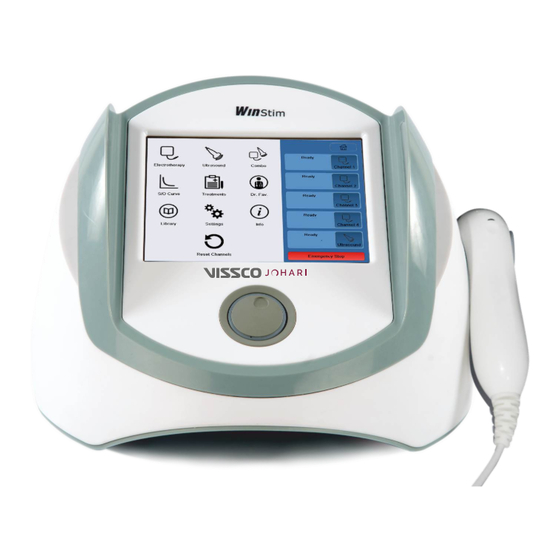

  • Page 1 WS4UWB COMBO THERAPY ELECTRO + ULTRASOUND...
  • Page 2 Winstim Plus- WS4UWB NO SITTING - Text with a “NO SITTING” indicator will explain possible Safety infractions that will potentially cause injury and equipment damage. NO STEPPING ON SURFACE - Text with a “NO STEPPING ON SURFACE” indicator will explain possible safety infractions that will cause equipment damage.

  • Page 3: Table Of Contents

    Winstim Plus- WS4UWB INSTRUCTION FOR THE USER OF WINSTIM PLUS WS4U WB 1.1 Warnings 1.2 Danger 1.3 Indications for use 1.4 Contraindication 1.5 Precautions 1.6 Adverse reactions INTRODUCTION DESCRIPTION ACCESSORIES SPECIFICATIONS CONTROLS AND FUNCTIONS LCD DESCRIPTION HOW TO OPERATE WINSTIM PLUS-WS4U WB 8.1 Preparing electrodes 8.2 Prerequisites 8.3 Preparing the skin...

  • Page 4: Instruction For The User Of Winstim Plus Ws4Uwb

    Winstim Plus- WS4UWB 1. INSTRUCTION FOR THE USER OF WINSTIM PLUS WS4UWB Please read this instruction manual carefully before using WinStim Plus-WS4UWB because it is unsafe to start using the device before reading the whole manual. The instructions on the following pages will show you how to use and care for your WinStim Plus-WS4UWB in a general manner.

  • Page 5: Danger

    Winstim Plus- WS4UWB If problem persist, contact doctor. RMS 2 mA/cm Do not modify this equipment without authorization of the manufacturer Ÿ...

  • Page 6: Indications For Use

    Winstim Plus- WS4UWB WinStim Plus-WS4UWB is indicated to be used as under Russian, High Volt and EMS for: Relaxation of muscle spasms Prevention or retardation of disuse atrophy Increase local blood circulation Muscle re-education Maintaining or increasing range of motion Immediate post-surgical stimulation of calf muscles to prevent venous thrombosis Interferential, Premod and TENS for: Symptomatic relief of chronic, intractable pain...

  • Page 7: Contraindication

    Winstim Plus- WS4UWB This device must not be used by pregnant woman, patients with metallic prosthesis / implant-able devices, patients with cardiac problems.

  • Page 8: Precautions

    Winstim Plus- WS4UWB The WinStim Plus-WS4UWB may be susceptible to interference originating from short-wave diathermy units operating in close proximity to it (aprrox. 3m). Avoid operating the WinStim Plus- WS4UWB adjacent to and simultaneously with operating short-wave devices. The WinStim Plus-WS4UWB should be kept out of the reach of children. The WinStim Plus-WS4UWB should not be used while driving, operating machinery, or during any activity in which involuntary muscle contraction may put the user at undue risk of injury.

  • Page 9: Adverse Reactions

    Winstim Plus- WS4UWB Precaution while using Pen electrode Ensure the intensity is adjusted slowly and smoothly and not increased beyond the patient's tolerance. During treatment, do not lift electrodes off the skin without the intensity being turned down to zero first. Also be aware of the skin’s resistance as this may suddenly drop causing the intensity to increase.

  • Page 10: Accessories

    Winstim Plus- WS4UWB 4. ACCESSORIES WinStim Plus-WS4UWB comes complete with all the necessary accessories and below is a list of items that are included: Length : 2.5 meter Electrode Sponge Pouch (Size : 8.5x8.5cm) Pen Electrode OUTPUT: 24V DC (3.75A) Instruction Manual / CD Gel 100ml (Only to be used for Ultrasound)

  • Page 11: Specifications

    Winstim Plus- WS4UWB 5. SPECIFICATIONS +24Volts DC, 3.75A Fuse Rating 4A/32V, Fast BLOW...
  • Page 12 Winstim Plus- WS4UWB INTERFERENTIAL...
  • Page 13 Winstim Plus- WS4UWB 0-37.5 0-37.5 0-37.5 Microcurrent waveform Output Mode : Electrodes or Probe Output Intensity : 0 – 1000.0μA Polarity Positive : Negative or Alternating Available on channels : 1, 2, 3, 4 Mode : CC / uC (Constant Current / Micro Current)

  • Page 14: Controls And Functions

    Winstim Plus- WS4UWB 6. CONTROLS AND FUNCTIONS WinStim Plus-WS4UWB is an innovative touch screen desktop device providing Electronic Stimulation through four channels. (For Service Purpose Only...

  • Page 15: Lcd Description

    Winstim Plus- WS4UWB 7. LCD DESCRIPTION...
  • Page 16 Winstim Plus- WS4UWB Library Button : for treatment details...
  • Page 17 Winstim Plus- WS4UWB Safety Indication : - 93.75 mA Warning 800 us HIGH ELECTRICAL CHARGE, DEVICE SHOULD BE USED UNDER THE CONTINUOUS SUPERVISION OF A PHYSICIAN OR LICENSED PRACTITIONER Cancel If the phase duration is 800usec. and intensity 93.75 a popup message will appear 93.75 mA Warning 800 us...

  • Page 18: How To Operate Winstim Plus-Ws4U Wb

    Winstim Plus- WS4UWB 8. HOW TO OPERATE WELLSTIM Instruction For Use Carbon Electrode Un-pack Carbon Electrode, Lead Wires & electrode pads. Soak the electrode pads in water & then Connect the lead wires in the electrodes. rinse out the excess water. Insert the electrodes in the electrode pads.

  • Page 19: Prerequisites

    Winstim Plus- WS4UWB The desired mode on the WinStim Plus-WS4UWB should be selected and set. Keep the WinStim Plus-WS4UWB on a stable surface.

  • Page 20: Selecting The Waveform

    Winstim Plus- WS4UWB NOTE: Do not connect the WinStim Plus-WS4UWB to a power supply rated differently than that described above. Avoid operating the WinStim Plus-WS4UWB adjacent to and simultaneously with operating short-wave devices, as it may be susceptible to interference originating from short-wave diathermy units.
  • Page 21 Winstim Plus- WS4UWB...

  • Page 22: Starting And Stopping The Treatment

    Winstim Plus- WS4UWB...

  • Page 23: Waveform Details

    Winstim Plus- WS4UWB 8.7.1.1 Interferentiral Waveform Eight Carbon Electrodes carbon 8.7.1.2 IFC Premodulated 2P Four Carbon Electrodes...
  • Page 24 Winstim Plus- WS4UWB carbon 8.7.2 Russian Waveform Four Carbon Electrodes carbon...
  • Page 25 Winstim Plus- WS4UWB 8.7.3 TENS Waveform Four Carbon Electrodes...
  • Page 26 Winstim Plus- WS4UWB carbon...
  • Page 27 Winstim Plus- WS4UWB carbon carbon...
  • Page 28 Winstim Plus- WS4UWB carbon SAFETY INDICATION : a) In CC mode, a pop-up message will appear at phase duration 800usec & intensity 93.75mA. If you press ok then you have exceeded safety limit and in this case a sign will appear on running channel b) In CV mode same thing will happen at phase duration 500usec &...
  • Page 29 Winstim Plus- WS4UWB carbon 8.7.5 Short Pulse Waveform Eight Carbon Electrodes...
  • Page 30 Winstim Plus- WS4UWB carbon...
  • Page 31 Winstim Plus- WS4UWB carbon...
  • Page 32 Winstim Plus- WS4UWB SAFETY INDICATION : a) In CC mode, a pop-up message will appear at phase duration 800usec & intensity 93.75mA. If you press ok then you have exceeded safety limit and in this case a sign will appear on running channel b) In CV mode same thing will happen at phase duration 500usec &...
  • Page 33 Winstim Plus- WS4UWB 8.7.7 Monophasic Waveform Four Carbon Electrodes carbon SAFETY INDICATION : A pop-up message will appear at phase duration 3000usec & intensity 25mA. If you press ok then you have exceeded safety limit and in this case a sign will appear on running channel...
  • Page 34 Winstim Plus- WS4UWB carbon SAFETY INDICATION : A pop-up message will appear at phase duration 3000usec & intensity 50mA. If you press ok then you have exceeded safety limit and in this case a sign will appear on running channel carbon NOTE: If the polarity reversal is on then a sharp sensation will be felt at every 7.5 minutes due to reversal of the polarity.
  • Page 35 Winstim Plus- WS4UWB 8.7.8 Galvanic Waveform Four Carbon Electrodes carbon...
  • Page 36 Winstim Plus- WS4UWB 8.7.9 Surged Waveform Four Carbon Electrodes carbon...
  • Page 37 Winstim Plus- WS4UWB SAFETY INDICATION : A pop-up message will appear at phase duration 3000usec & intensity 25mA. If you press ok then you have exceeded safety limit and in this case a sign will appear on running channel carbon SAFETY INDICATION : A pop-up message will appear at phase duration 3000usec &...
  • Page 38 Winstim Plus- WS4UWB Micro-current Detail Screen a) Press Microcurrent 2P sub-waveform Note: The Channel selection screen will appear. 2) Select desired channel/Group Note : The Microcurrent 2P Detail screen will appear 3) Now you can select the desired parameters such as Time, Pulse polarity, Frequency etc. Note: Once the treatment parameters for channel 1-4 are selected and start tab is pressed the LCD will show the following screen...
  • Page 39 Winstim Plus- WS4UWB b) Press Microcurrent 4P sub waveform Note: The Channel selection screen will appear 2) Select desired Channel/ group will show the following Note: The Microcurrent 4P Detail screen will appear 3) Now you can select the desired parameters such as Time, Pulse polarity, Frequency etc. Note: Once the treatment parameters for channel 1-4 are selected and start tab is pressed the LCD will show the following screen SAFETY INDICATION :...
  • Page 40 Winstim Plus- WS4UWB 8.7.11 Triangular Waveform Four Carbon Electrodes carbon...

  • Page 41: D Curves

    Winstim Plus- WS4UWB 9. S/D CURVES Four Carbon Electrodes Back Store Library Start carbon...

  • Page 42: Ultrasound

    Winstim Plus- WS4UWB 10. ULTRASOUND Start Head Start Library Store Warming...
  • Page 43 Winstim Plus- WS4UWB...

  • Page 44: Combo

    Winstim Plus- WS4UWB 11. COMBO WinStim Plus-WS4UWB’s Combo mode allows the user to select & use Ultrasound therapy in combination with electrical muscle stimulation. In this mode of therapy, the head of the Ultrasound Applicator becomes one half of the electrical circuit. An electrode attached to the Black Electrode cable tagged COMBO (See fig.
  • Page 45 Winstim Plus- WS4UWB Operational Mode Constant Current Duty Cycle Start Head Start Library Store Warming Paste the carbon electrode on the selected treatment are as per the practitioner’s advice. Operational Mode Constant Current Duty Cycle Start Head Start Library Store Warming Operational Mode Constant Current...
  • Page 46 Winstim Plus- WS4UWB 1 Red Electrode cable tagged COMBO...

  • Page 47: Settings

    Winstim Plus- WS4UWB 12. SETTINGS Options available are shown below : Default values for Estim options are set to OFF as shown below :...

  • Page 48: Back Cover Assembly

    Winstim Plus- WS4UWB 13. BACK COVER ASSEMBLY Back cover is mounted to cover the output treatment panel. Back panel is to be push in the corresponding holes in top enclose part cover. Carefully place back cover on top part in a way that it is positioned correctly. As shown in below Picture Correct position of Back compartment cover is shown following picture.

  • Page 49: Troubleshooting

    Winstim Plus- WS4UWB 14. TROUBLESHOOTING...

  • Page 50: Maintenance

    Winstim Plus- WS4UWB 15 MAINTENANCE...

  • Page 51: Suggested Electrode Placement Chart

    Winstim Plus- WS4UWB 16. SUGGESTED ELECTRODE PLACEMENT CHART Caution : The device should only be operated under supervision of a registered medical practitioner. Electrode placements shown in this library/encyclopedia are only for reference purposes. Actual electrode placement may be vary according to pain or patient’s condition For Interferential Interferential Combo For TENS...

  • Page 52: Warranty

    Winstim Plus- WS4UWB 17 WARRANTY This product warranty extends to the original consumer /purchaser of the product. Warranty duration This product is warranted to the original consumer for a period of one (1) year from the original purchase date. Warranty coverage This product is warranted against defective materials or workmanship.
  • Page 53 Winstim Plus- WS4UWB The distributor cannot assume responsibility for loss or damage during shipment. For your protection, carefully pack the product for shipment and insure it with the carrier. Ensure that you return the unit and accessories related to your problem and also that you indicate full return address. Also send a copy of sales receipt or other proof of purchase to determine warranty status.
  • Page 54 Marketed By Vissco Healthcare Pvt Ltd. 1208, Dalamal Tower, Free Press Journal Road, Nariman Point, Mumbai- 400021, India Tel.: +91-22-43330300/ 43330333 Email: customercare@vissco.com Web.: www.vissco.com Manufactured By Johari Digital Healthcare Ltd. G-582-584, EPIP, Boranada-Salawas Road Jodhpur - 342012, Rajasthan, India TOLL FREE: 1800-102-8684 Email : info@joharidigital.com Web.: www.joharidigital.com...
