Product Introduction
1.1

Before you proceed

Take note of the following precautions before you install motherboard components or change
any motherboard settings.
• Unplug the power cord from the wall socket before touching any component.
• Before handling components, use a grounded wrist strap or touch a safely grounded
object or a metal object, such as the power supply case, to avoid damaging them due
to static electricity.
• Before you install or remove any component, ensure that the ATX power supply is
switched off or the power cord is detached from the power supply. Failure to do so
may cause severe damage to the motherboard, peripherals, or components.
1.2

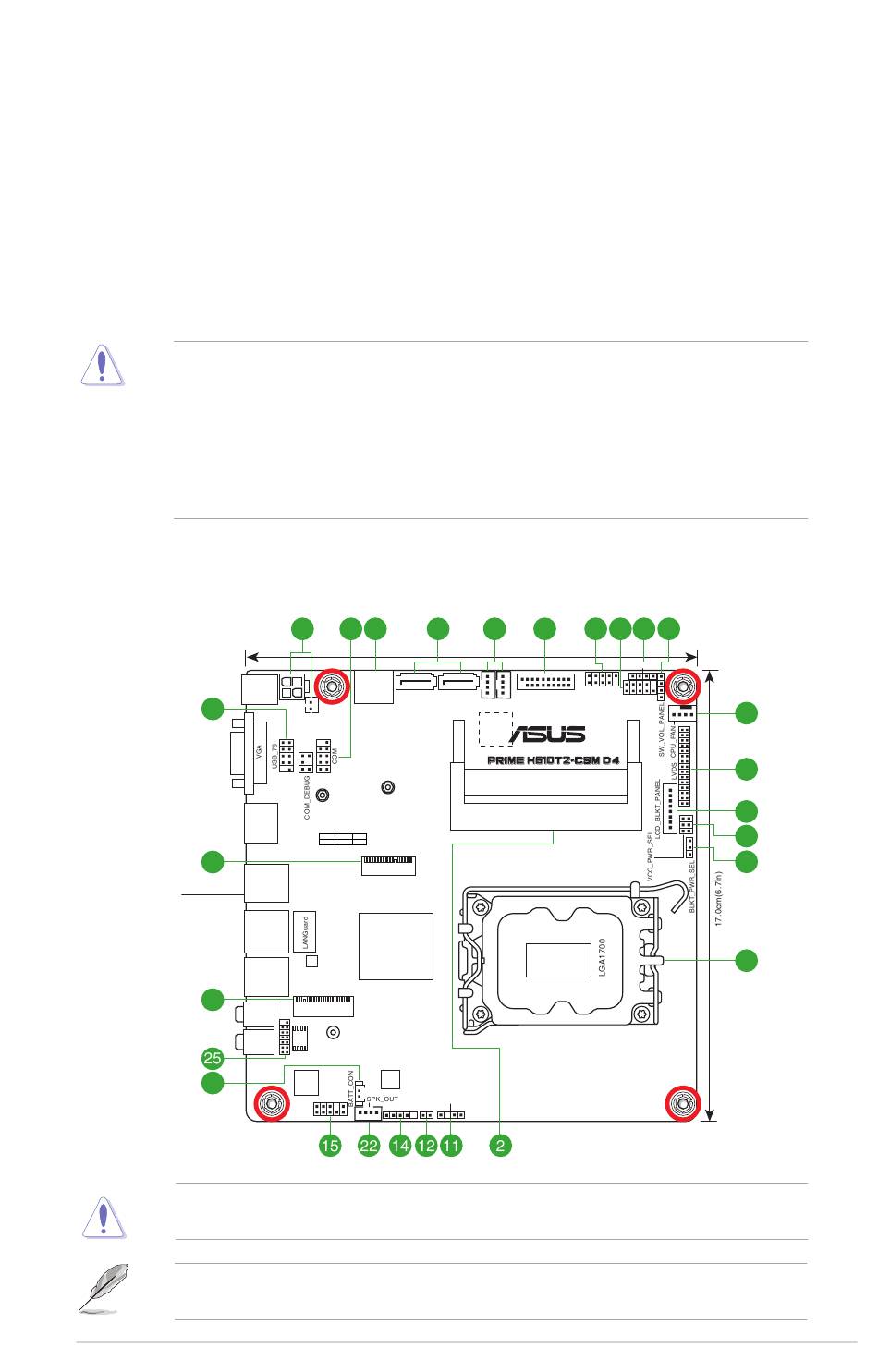

Motherboard overview

8
20
Place this
side towards
the rear of the
chassis
5
9
Unplug the power cord before installing or removing the motherboard. Failure to do so can
cause you physical injury and damage motherboard components.
The pin definitions in this chapter are for reference only. The pin names depend on the
location of the header/jumper/connector.
PRIME H610T2-CSM D4
4 13 17
HDMI2
DC_PWR
SATA6G_2
ATX19V
PWR_2PIN
2280
HDMI1
M.2(SOCKET3)
PCIE SATA IRST
4.0 X4
V X
M.2(WIFI)
USB_56
LAN
Intel
®
H610
U32G2_C1 Ethernet
U32G2_2
M.2(SOCKET3)
MIC IN TPM
LINE_OUT
128Mb
BIOS
DIGI+
Audio
VRM
Codec
AAFP
DMIC
6 16 7
17.0cm(6.7in)
SATA6G_1 U32G1_34
HDD_PWR1 HDD_PWR2
Super
I/O
DDR4 SO-DIMM_B1 (64bit, 260-pin module)
DDR4 SO-DIMM_A1 (64bit, 260-pin module)
CHASSIS
CLRTC
1
8 24 21 23
SPEAKER
USB_E12
F_PANEL
3
19
18
26
10
1
1-1
