INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
Contact your dealer with questions regarding installation, operation or service.
NOTICE: DO NOT discard this manual!

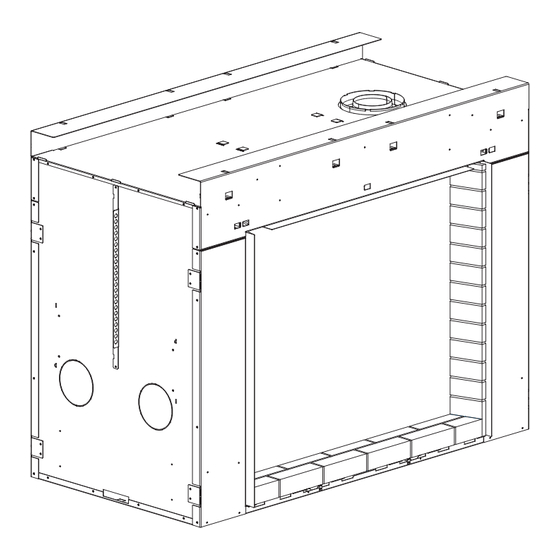

Model:
This appliance may be installed as an OEM
installation in manufactured home (USA
only) or mobile home and must be installed
in accordance with the manufacturer's
instructions and the Manufactured Home
Construction and Safety Standard, Title 24
CFR, Part 3280 in the United States, or the
Standard for Installation in Mobile Homes,
CAN/CSA Z240 MH Series, in Canada.
This appliance is only for use with the type(s)
of gas indicated on the rating plate. This
appliance is not convertible for use with other
gases, unless a certified kit is used.
Pour demander un exemplaire en français de ce Manuel du
propriétaire, visitez www.heatnglo.com/translations.
Owner's Manual
Care and Operation
Heat & Glo • ESC-42ST-IFT Owner's Manual • 2464-981 Rev. i • 2/20
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
• DO NOT store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Leave the building immediately.
- Immediately call your gas supplier from
a neighbor's phone. Follow the gas sup-
plier's instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
by a qualified installer, service agency, or the
gas supplier.
DANGER
DO NOT TOUCH GLASS
NEVER ALLOW CHILDREN
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and shall be installed for
the protection of children and other at-risk
individuals.
In the Commonwealth of Massachusetts installation must be
performed by a licensed plumber or gas fitter.
See appliance installation manual for additional
Commonwealth of Massachusetts requirements.
HOT GLASS WILL
CAUSE BURNS.
UNTIL COOLED.
TO TOUCH GLASS.
1
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Heat & Glo ESC-42ST-IFT
Summary of Contents for Heat & Glo ESC-42ST-IFT
- Page 1 Pour demander un exemplaire en français de ce Manuel du performed by a licensed plumber or gas fitter. propriétaire, visitez www.heatnglo.com/translations. See appliance installation manual for additional Commonwealth of Massachusetts requirements. Heat & Glo • ESC-42ST-IFT Owner’s Manual • 2464-981 Rev. i • 2/20...
-
Page 2: Welcome
00,000 00,000 00,000 MIN. MIN. INPUT INPUT BTUH: BTUH: 00,000 00,000 00,000 00,000 Serial Serial XXXXXXXX XXXXXXXX ORIFICE ORIFICE SIZE: SIZE: #XXXXX #XXXXX #XXXXX #XXXXX (Serie): (Serie): Heat & Glo • ESC-42ST-IFT Owner’s Manual • 2464-981 Rev. i • 2/20... -
Page 3: Table Of Contents
D. Contact Information ......29 = Contains updated information. Heat & Glo • ESC-42ST-IFT Owner’s Manual • 2464-981 Rev. i • 2/20... -
Page 4: Limited Lifetime Warranty
(engine, inner cover,access cover and fireback) None 1 Year All replacement parts beyond warranty period See conditions, exclusions and limitations on the next page Page 1 of 2 4021-645K 1/20 Heat & Glo • ESC-42ST-IFT Owner’s Manual • 2464-981 Rev. i • 2/20... - Page 5 OTHER THAN THE WARRANTY SPECIFICED HEREIN. THE DURATION OF ANY IMPLIED WARRANTY IS LIMITED TO DURATION OF THE EXPRESSED WARRANTY SPECIFIED ABOVE. 4021-645K 1/20 Page 2 of 2 Heat & Glo • ESC-42ST-IFT Owner’s Manual • 2464-981 Rev. i • 2/20...
-
Page 6: Product Specific Information
Installation and service of this appliance should be performed by qualified personnel. Hearth & Home Technologies recommends HHT Factory Trained or NFI certified professionals. Heat & Glo • ESC-42ST-IFT Owner’s Manual • 2464-981 Rev. i • 2/20... -
Page 7: Important Safety And Operating Information
• Keep remote controls out of reach of children. • Never leave children alone near a hot fireplace, whether operating or cooling down. Figure 3.1 Clear Space Requirement - All Models Heat & Glo • ESC-42ST-IFT Owner’s Manual • 2464-981 Rev. i • 2/20... -
Page 8: General Operating Parts
Make sure the appliance is compatible with gas type selected for installation site. • Conversions must be made by a qualified service technician using Hearth & Home Technologies specified and approved parts. Heat & Glo • ESC-42ST-IFT Owner’s Manual • 2464-981 Rev. i • 2/20... - Page 9 Sugges ons on how to further reduce TV temperatures: Increase “A” dimension. Increase “C” dimension, however, increasing “B” dimension beyond maximum recommended typically results in higher temperatures. Figure 3.4. Good Faith TV Guidelines Heat & Glo • ESC-42ST-IFT Owner’s Manual • 2464-981 Rev. i • 2/20...
-
Page 10: Before Lighting Appliance
• Ensure that the glass is sealed and in the proper position and that the integral barrier is in place. WARNING! Risk of Fire or Asphyxiation! DO NOT op- erate fireplace with fixed glass assembly removed. Heat & Glo • ESC-42ST-IFT Owner’s Manual • 2464-981 Rev. i • 2/20... -
Page 11: Lighting Instructions (Ipi)
Propane Installation code, CSA B149.1. P65Warnings.ca.gov. For additional information on operating your Keep burner and control compartment clean. See installation and operating instructions accompanying appliance. refer to www.hearthnhome.com. Heat & Glo • ESC-42ST-IFT Owner’s Manual • 2464-981 Rev. i • 2/20... -
Page 12: Appliance Break-In
If this occurs, restart the appliance. NOTICE! Open windows for air circulation during fire- place break-in. • Some people may be sensitive to smoke and odors. • Smoke detectors may activate. Heat & Glo • ESC-42ST-IFT Owner’s Manual • 2464-981 Rev. i • 2/20... -
Page 13: Operation During A Power Outage - Intellifire Touch
NOTICE: Some functionality will be lost when using battery backup including fan, lights, or any other auxiliary functions that require household 110-120 VAC power. 3.5 ON/OFF Switch/ Control Cavity Location Heat & Glo • ESC-42ST-IFT Owner’s Manual • 2464-981 Rev. i • 2/20... -
Page 14: Detailed Component Operating Instructions
NOT available if a Power Vent is used. - Be aware the appliance may be HOT, use care in accessing the IFT-ECM. Heat & Glo • ESC-42ST-IFT Owner’s Manual • 2464-981 Rev. i • 2/20... - Page 15 HI, ® MED, LO or OFF. The Fan Speed dynamic icon is used to change the setting. Refer to the RC400 quick reference guide in section 6.C. Heat & Glo • ESC-42ST-IFT Owner’s Manual • 2464-981 Rev. i • 2/20...
-
Page 16: Maintenance And Service
• Assess condition of screen and replace as necessary. • Inspect for scratches, dents or other damage and repair as necessary. • Check that louvers are not blocked. • Vacuum and dust surfaces. Heat & Glo • ESC-42ST-IFT Owner’s Manual • 2464-981 Rev. i • 2/20... - Page 17 • Inspect for corrosion or separation. • Verify weather stripping, sealing and flashing remains intact. • Inspect draft shield to verify it is not damaged or missing. Heat & Glo • ESC-42ST-IFT Owner’s Manual • 2464-981 Rev. i • 2/20...
-
Page 18: Maintenance Tasks - Qualified Service Technician
Use caution when cleaning these areas. Screw tips that have penetrated the sheet metal are sharp and should be avoided. • Remove all foreign objects. • Verify unobstructed air circulation. Heat & Glo • ESC-42ST-IFT Owner’s Manual • 2464-981 Rev. i • 2/20... - Page 19 • Verify that there is not a short in flame sense circuit by checking continuity between pilot hood and flame sensing rod. Replace pilot as necessary. Heat & Glo • ESC-42ST-IFT Owner’s Manual • 2464-981 Rev. i • 2/20...
-
Page 20: Frequently Asked Questions And Troubleshooting
Installer’s Manual for this the touch. appliance. Contact your dealer for additional information regarding operation and troubleshooting. Visit www.heatnglo.com to locate a dealer. Heat & Glo • ESC-42ST-IFT Owner’s Manual • 2464-981 Rev. i • 2/20... -
Page 21: Frequently Asked Questions - Intellifire Touch Controls (Ift-Rc400)
90 seconds. If this failure appliance did not start. Try again period of appliance inactivity. persists, contact dealer for service. by pressing Flame On. Gas control system failure. Heat & Glo • ESC-42ST-IFT Owner’s Manual • 2464-981 Rev. i • 2/20... -
Page 22: Troubleshooting
If open or shorted, replace valve. Check valve harness wire continuity, if open replace 6-pin harness. Pilot won’t light, there is no noise Spark coil failure. Replace ECM. or spark, 2 Red/2 Green Lockout. Heat & Glo • ESC-42ST-IFT Owner’s Manual • 2464-981 Rev. i • 2/20... - Page 23 Check resis- Damaged pilot assembly. tance between tip of sense rod and IFT-ECM connector, should be less than 1 ohm. Replace pilot assembly if damage is de- tected. Heat & Glo • ESC-42ST-IFT Owner’s Manual • 2464-981 Rev. i • 2/20...
-
Page 24: Reference Materials
Kit is available for your appli- ® ance. It must be installed by a qualified service techni- cian during the appliance installation process. Follow the instruction supplied with the kit for operation. Heat & Glo • ESC-42ST-IFT Owner’s Manual • 2464-981 Rev. i • 2/20... -
Page 25: Service Parts
Beginning Manufacturing Date: Feb 2017 42” See-thru Gas Fireplace - DV Ending Manufacturing Date: Active Log Set Assembly Refractory Assembly Part number list on following page. 02/20 Heat & Glo • ESC-42ST-IFT Owner’s Manual • 2464-981 Rev. i • 2/20... - Page 26 Refractory Panel-Inside Front Qty 2 req SRV2146-312 Qty 2 req SRV2146-313 Refractory Panel-Inside Middle Left 2146-175 Panel Bracket Right 2146-176 Additional service part numbers appear on following page. Heat & Glo • ESC-42ST-IFT Owner’s Manual • 2464-981 Rev. i • 2/20...
- Page 27 **Fuse for battery pack can be sourced locally, not a warranty item. Specs are 250v, 3A fuse, 3/4” long Additional service part numbers appear on following page. Heat & Glo • ESC-42ST-IFT Owner’s Manual • 2464-981 Rev. i • 2/20...
- Page 28 Conversion Kits Conversion Kit, NG NGKMARQ42ST Conversion Kit, Propane LPKMARQ42ST Pilot Orifice, NG SRV593-528 Pilot Orifice, Propane SRV593-527 Regulator, NG w/stepper motor NGK-DXV-50 Regulator, Propane w/stepper motor SRVLPK-DXV-50 Heat & Glo • ESC-42ST-IFT Owner’s Manual • 2464-981 Rev. i • 2/20...
-
Page 29: Contact Information
6053165, 6145502, 6374822, 6484712, 6601579, 6769426, 6863064, 7077122, 7074035, 7098269, 7258116, 7322819, 7470729, 7726300, 8147240, 9625149 or other U.S. and foreign patents pending. 2000-945D Printed in U.S.A. - Copyright 2020 Heat & Glo • ESC-42ST-IFT Owner’s Manual • 2464-981 Rev. i • 2/20...
