6.1.2 Charging mode status

The status indicator (fig. 26, page 29) shows the charging
system operating status.
LED display
LED flashes white
LED lights up blue
LED lights up yellow
LED lights up green
LED pulsates green & signal tone once
LED pulsates slowly
Table 3 Charging mode status

6.1.3 Standby and software update

LED inactive
LED lights u white, blue and
red alternately
Table 4 Standby and software update

6.1.4 Optional digital input

An optional external locking device can be connected to the
internal interface. In this case, the charging does not take place
until external enabling has been issued.
EN

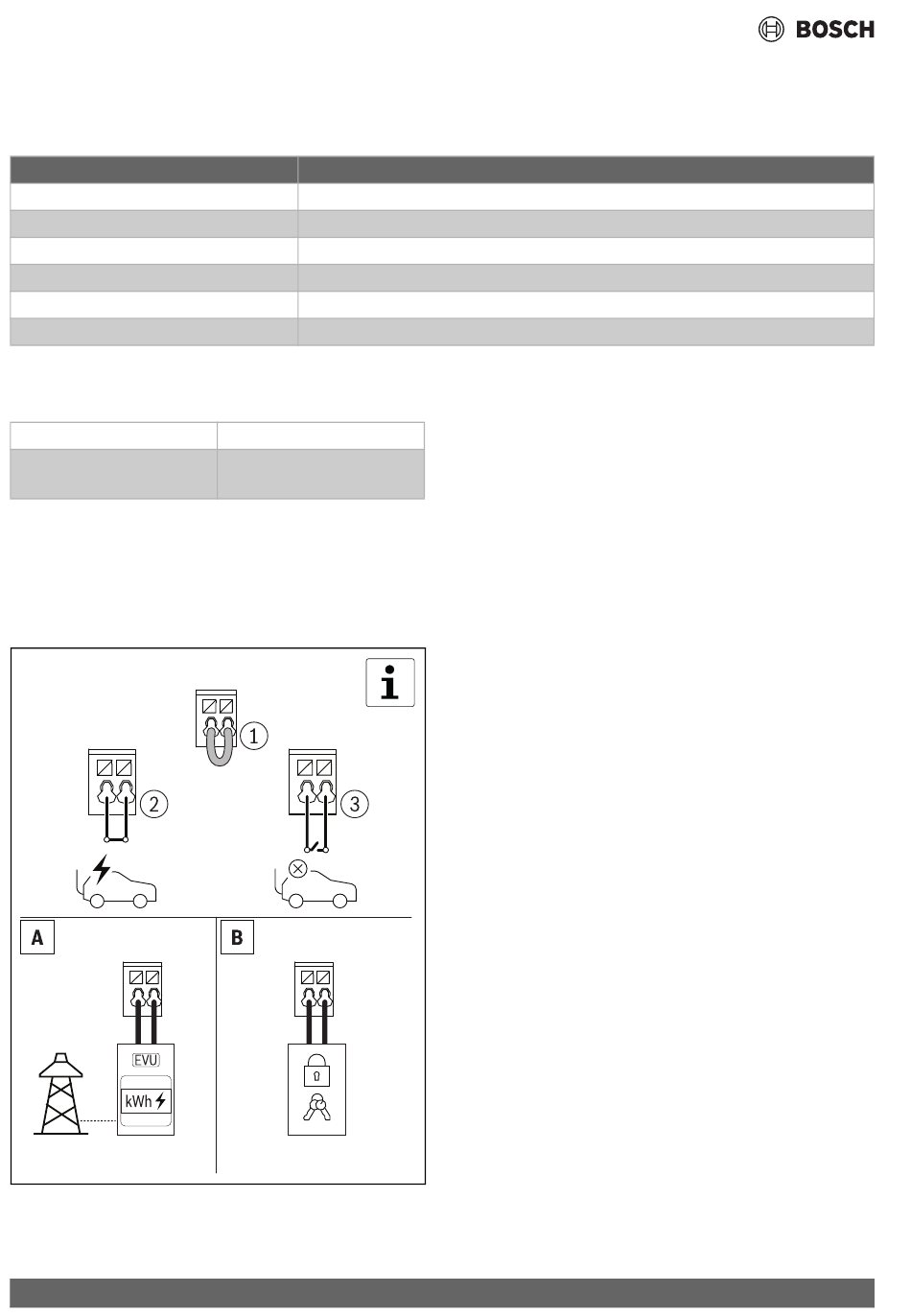

Fig. 47 Optional digital input
42
Description
Booting up the product after switching it on.
The product is ready for operation (condition A).
Product without release (state B) – external release input, RFID or app)
Product released and communication to vehicle established (condition B or C).
The charging process has started (state C & actual current >2A).
The charging process runs with a reduced charging current.
The product is in standby.
The software is updating.
