Jujiang TKM-01 User Manual

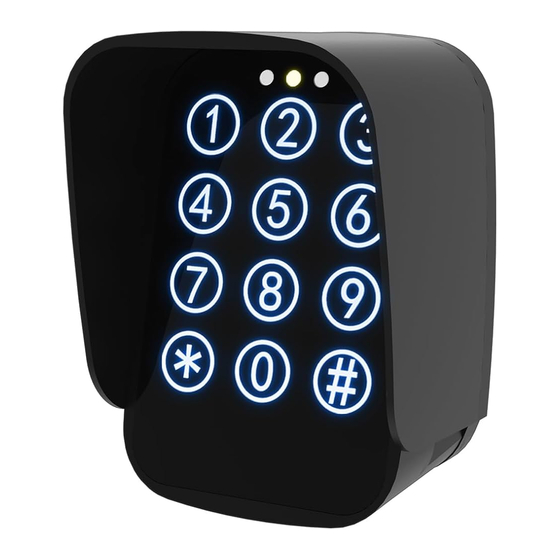

Wall-mounted wireless keypad
Hide thumbs

Advertisement

Table of Contents

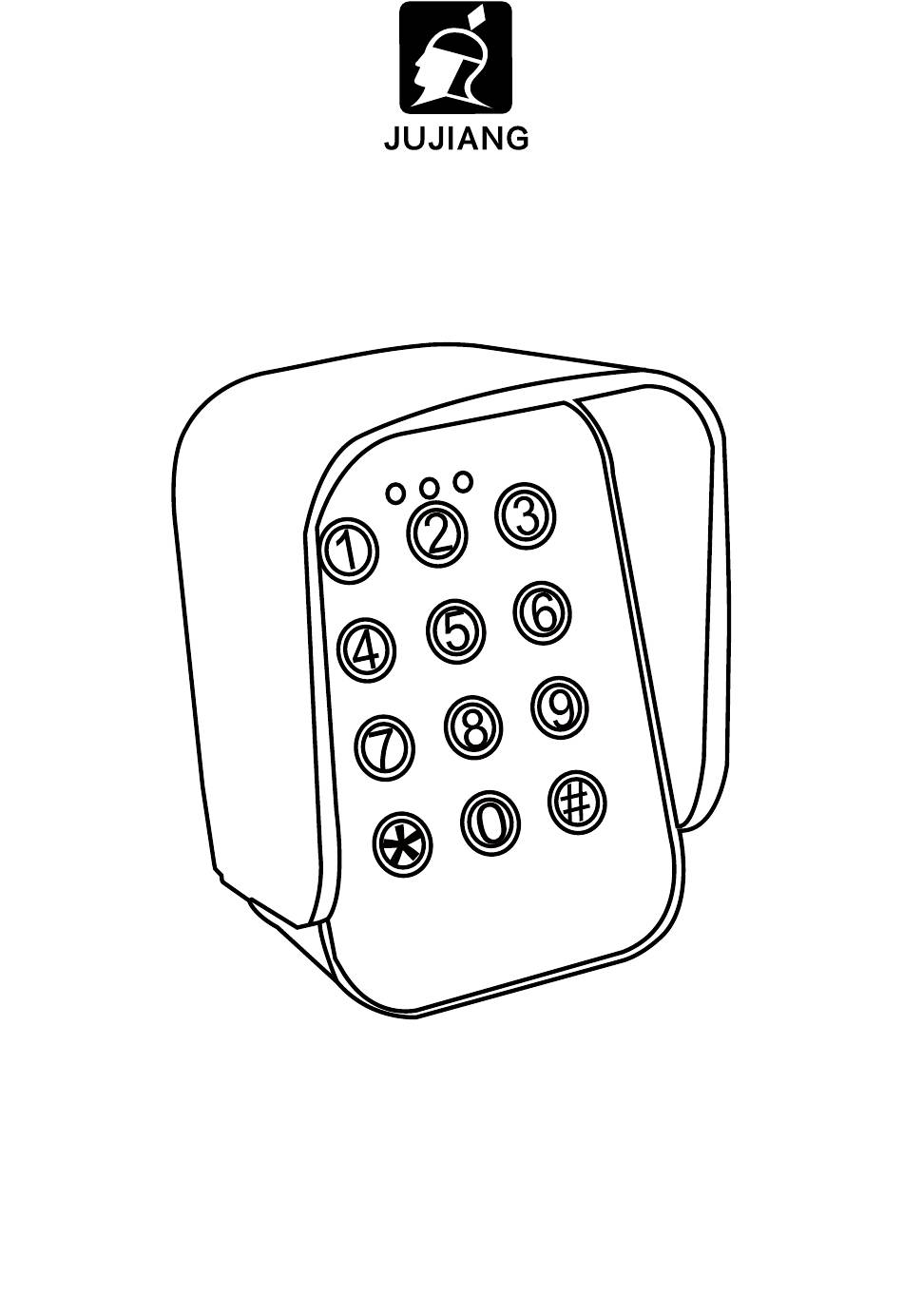

Wall-Mounted Wireless Keypad
User Manual
Model: TKM-01
Please read this manual carefully before install and use.
If the gate opener you want to use is not listed in the manual,
please refer to the user manual of the gate opener for
programming or contact us for technical support.
Customer Service: JUJIANGservice@outlook.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TKM-01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Jujiang TKM-01

  • Page 1 Wall-Mounted Wireless Keypad User Manual Model: TKM-01 Please read this manual carefully before install and use. If the gate opener you want to use is not listed in the manual, please refer to the user manual of the gate opener for programming or contact us for technical support.

  • Page 2: Specifications

    TKM-01 Max. Signal Range 109.4 yd. 100m Passcode Capacity Working Temp 14-140°F -10 to 60°C Battery 4×AA Alkaline Keypad Compatibility All The JUJIANG Gate Opener Dimensions 3.6×4.8×3.3 in 90×120×82 mm Weight 0.82 lb 0.37 kg Package list ×2 ×2 ×1 Mounting Tool Power Drill &...
  • Page 3 ● Keypad deactivation while there is wrong passcode attempted. Introduction Since JUJIANG establishment 20 years ago, we have been committed to providing the most caring smart life.Our company has continuously passed international SGS and BV inspection and certification for EU and US market.

  • Page 4: Keypad Description

    Keypad Description LED Indicator ( Red, Green, Blue) Waterproof Cover Touch Panel LED Backlight Key Battery 4×AA(1.5V) battery Safety Information ● ONLY permit children to use this device under close and constant supervision. ● DO NOT pair any button of this device with more than one gate opener circuit board.
  • Page 5 ● Cease use IMMEDIATELY if any irregularity occurs during use. Recalibrate, repair, or replace problematic parts before further use. Setup ● Assembly & Mounting 1. Your wireless keypad should arrive with the cover installed. Use the provided hex wrench to remove the cover locking bolt.
  • Page 6 2. Slide the keypad out of its cover to expose the mounting holes. Press the cover against the wall on which you desire to install your keypad. Make two dots on the wall through the holes using a pencil or an equivalent (not included). 3.
  • Page 7 5. Hammer the anchors into the holes using your hammer (notincl.) Mount the cover using the provided mounting screws ensuring that its closed end faces up. 6. Remove the insulation installed inside the battery. You should hear a short beep followed by a long beep. Mute the beep by holding the interlock pin on the top of the keypad.

  • Page 8: Operation

    7. Slide the keypad back in, being sure the end with an interlock. 8. Presses against the interior of the cover. Replace the cover locking bolt and secure the keypad. Operation Factory set all passcode are four(4) digits in the length. Enter 4 digits passcode and end with , that is activating the keypad.
  • Page 9 Step 3. Enter a new programming protection passcode 8888 . The keypad will sound a long beep followed by a short beep to confirm the new passcode has been programmed. ● Entry passcode setting for channel 1 and channel 2 For this example, we will use 5555 as channel 1 entry passcode.
  • Page 10 Program the keypad to the gate opener. Step 1. Enter programming protection passcode 8888 The keypad will sound a long beep and its blue backlight lights up. Step 2. Enter 55 . The keypad will give a long beep, transmit a RF signal about 10 seconds. Step 3.
  • Page 11 ● Reset the entry passcode If you forgot your entry passcode, follow the steps below to reset the entry passcode for channel 1 and channel 2. Step 1. Enter programming protection passcode 8888 . The keypad will sound a long beep and its blue backlight lights up.
  • Page 12 If you want to tutn on the backlight, please repeate the above operation. ● Passcode Testing Follow the below steps to find out which channel a passcode is using. Step 1. Enter programming protection passcode 8888 . Keypad will sound a long beep and its blue backlight lights up. Step 2.

  • Page 13: Maintenance

    Reset the keypad Step 1. Remove the cover locking bolt and slide out the keypad. Step 2. Gently hold the reset button located near the interlock pin using a pin or a similar tool until all the lights on the keypad lights up, indicating the reset is done.

  • Page 14: Troubleshooting

    Keypad Keypad NOTE: We suggest you use the wired keypad take place of the wireless keypad forinstallation in the locations where the frequency interference is restricted, nearby airport for example or the control box is installed far way from the gate opener (father than 30' or 10 meter).
  • Page 15 How to Get The Warranty PLEASE LEAVE IMAGE OR VIDEO PROOFS AT THE TIME OF DELIVERY, then send the proof to JUJIANG Service Email: JUJIANGservice@outlook.com WITHIN 7 DAYS. (Note: Our customer service department cannot provide any guarantee without proof) Feedback & Review Your comments and suggestions are important to us as they help us provide the best possible service.
