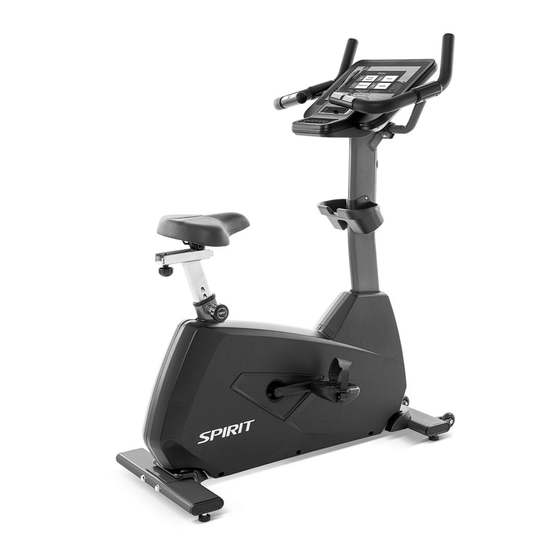

CU800 ENT+
Upright Bike
OWNER'S MANUAL
Please carefully read this entire manual before operating your new upright bike.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CU800ENT+ and is the answer not in the manual?

Questions and answers

Related Manuals for Spirit CU800ENT+

Summary of Contents for Spirit CU800ENT+

  • Page 1 CU800 ENT+ Upright Bike OWNER’S MANUAL Please carefully read this entire manual before operating your new upright bike.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Important Safety Instructions………………………………………………………….….……3 Important Electrical Instructions……………………………………………………………..5 Important Operation Instructions……………………………………………………….….…..6 Assembly Instructions………………………………………………………………….….……7 Getting on / off your Upright Bike .……….…………………………………………………..13 Suggested Posture and Seat Adjustment Instruction .……….……………………………14 Operation of Your console…………………………………………………………………….15 Target Heart Rate………………………………………………………………………………36 General Maintenance…………………………………………………………….……………39 Exploded View Diagram and Parts List………………………………………………..…….40 Thank you for purchasing our product, please save these instructions.

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING –When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using this appliance. DANGER - To reduce the risk of electric shock: Always unplug this appliance from the electrical outlet immediately after using and before cleaning.
  • Page 4  Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on your upright bike. Quality athletic shoes are recommended to avoid leg fatigue.  WARNING: Injuries to health may result from incorrect or excessive training. ...

  • Page 5: Important Electrical Instructions

    IMPORTANT ELECTRICAL INSTRUCTIONS WARNING! NEVER remove any cover without first disconnecting AC power. If voltage varies by ten percent (10%) or more, the performance of your upright bike may be affected. Such conditions are not covered under your warranty. If you suspect the voltage is low, contact your local power company or a licensed electrician for proper testing.

  • Page 6: Important Operation Instructions

    IMPORTANT OPERATION INSTRUCTIONS  NEVER operate this upright bike without reading and completely understanding the results of any operational change you request from the computer.  All users should have medical clearance before starting any rigorous exercise program. This is especially important for persons with a history of heart disease or other high risk factors.

  • Page 7: Assembly Instructions

    ASSEMBLY INSTRUCTIONS PRE-ASSEMBLY Carefully remove all parts from carton and inspect for any damage or missing parts. If damaged parts are found, or parts are missing, contact your dealer immediately. Locate the hardware package. The hardware is separated into four steps. Remove the tools first. Remove the hardware for each step as needed to avoid confusion.
  • Page 8 STEP 1 #50 - 3/8” x 135mm #151 - 3/8" x 23 x2.0T Hex Head Bolt (2 pcs) Curved Washer (2 pcs) STEP 2 #51 - 5/16” x 5/8” #99 - 5/16"x19 x1.5T #72 - 5/16"x19 x1.5T Hex Head Bolt (7 pcs) Curved Washer (1 pc) Flat Washer (6 pcs) STEP 3...
  • Page 9 STEP 1 1. Install the Rear Stabilizer (No.5) onto the Main Frame with 2 Bolts (No.50) and 2 Washers (No.151).
  • Page 10 STEP 2 1. Slide the Console Mast Cover (No.38) through the Console Mast (No.2). 2. Making sure not to pinch the wires, run them through the Console Mast (No.2) and Console Mast Cover (No.38). The wires are: Computer Cable (No.29), CSAFE Connecting Wire (No.33), Network Connecting Cable (No.144), HDMI Connecting Wire (No.147) and TV Signal Cable (No.153).
  • Page 11 STEP 3 1. Thread the Handpulse w/Cable (No.26) and Handpulse w/Cable (No.28) and Computer Cable (No.29) through the Console Mast (No.2). 2. Secure the Handlebar (No.3) to the Console Mast (No.2) using 2 Bolts (No.51), 2 Split Washers (No.103), and 2 Flat Washers (No.72).
  • Page 12 STEP 4 1. Connect the Wires on the back of the console to their respective places: Computer Cable (No.29), Handpulse Wires (No.26 & 28), CSAFE Connecting Wire (No.33), Network Connecting Cable (No.144), HDMI Connecting Wire (No.147) and TV Signal Cable (No.153). Tuck excess cable into the Console Mast (No.2) being careful not to pinch the wires.

  • Page 13: Getting On / Off Your Upright Bike

    Getting on / off your Recumbent Bike IMPORTANT The Upright Bike comes with a Stationary Handlebar. Always hold the Stationary Handlebar when getting on and off the Upright Bike. First time users should familiarize themselves with using the Upright Bike by using the Stationary Handlebar first Caution should always be taken when getting on and off any exercise machine.

  • Page 14: Suggested Posture And Seat Adjustment Instruction

    Suggested Posture: Sit straight on the saddle, grab the handle with both hands, position the feet on pedal through the pedal strap. Seat Adjustment Instruction: Adjustment 1. When you adjust the Seat Bottom Cushion Fore/Aft. Loosen the Fore Aft Adjustment and adjust the seat to the modest position then tighten the knob to fix the position.

  • Page 15: Operation Of Your Console

    OPERATION OF YOUR CONSOLE Touchscreen Adjustable fan angle Tablet-friendly reading rack Charging port Start, Stop, and Level controls How to connect with the Bluetooth Click of the Bluetooth icon to enter the pairing page. The system will be searching the available BT signal device around the upright bike.
  • Page 16 STARTING OPERATION When the power is turned ON, the screen will show a brief loading screen and then display the Home Screen which indicates that the machine is ready to operate. Home Screen: Begin operation by touching the icons. Quick operating buttons are conveniently located for basic upright bike functions. CSAFE FEATURE Your console is equipped with a CSAFE feature.
  • Page 17 FUNCTIONS OF THIS UPRIGHT BIKE The Touchscreen is used for operating all functions. You can directly touch any button on the screen or through quick button on the bottom to control functions. On the lower portion of the console there is the Start button to begin the workout, Stop button to pause/stop programs, Level button to change workload.
  • Page 18 TOUCHSCREEN OPERATION LANGUAGE There are 13 languages to choose from. Select your desired language by tapping it on the screen. Once selected, the system will return to the Home Screen with your new language being used. To return to the Home Screen without selecting a new language, press the Home button in the upper left corner of the screen.
  • Page 19 ENTERTAINMENT OPTIONS From the Home Screen, tap Entertainment to go to the entertainment menu. You will be given the options of Screen Mirroring and TV mode interface. There are two sources under the TV mode: from the Set-Top Box (STB) or antenna. TV Mode When properly connected to the Set-Top Box (STB) via the HDMI port and TV mode selected, you can enjoy TV programs after selecting TV mode from the Entertainment screen on your recumbent...
  • Page 20 SCREEN MIRRORING When Screen Mirroring is selected from the Entertainment screen, you may begin pairing your device. Screen Mirroring displays your phone's screen on the touchscreen of the Upright bike. Please note that your device must be running iOS 8 or higher. 1.
  • Page 21 Android 1. Connect your phone or tablet to the facility’s WiFi. 2. Scan the QR code or search for “Spirit Mirroring” in the Google Play store on your phone or tablet. 3. Download the app. 4. Open the Spirit Mirroring App and select the device name. Then, click Start Mirroring to complete the screen mirroring process.
  • Page 22 ENTERING A PROGRAM & CHANGING SETTINGS When the Exercise Programs button is selected from the Home Screen, the screen displays a menu of the different programs available: Manual, Hill, Fat Burn, Cardio, HIIT, Interval, Heart Rate, Custom, Constant Power, and Fitness Test. To select and start a preset program: Select a program by tapping it on the screen, then press Enter to begin.
  • Page 24 EXERCISE PROGRAM CHANGING THE WORKOUT DISPLAY During your workout, you may change the display based on the view that works best for your needs. Once your workout begins, you will see 3 preset views available at the bottom of the screen: Simple, Track, and Dashboard.
  • Page 25 EXERCISE PROGRAM DASHBOARD To switch the display to Dashboard view, simply tap the Dashboard button at the bottom of the screen. This view shows a virtual dashboard mimics a typical Upright bike display with information that corresponds with the current workout. Metrics such as elapsed Distance, Calories/Hr, Calories, Total Time, Heart Rate, and RPM are displayed as well as other exercise data.
  • Page 26 MANUAL The level of resistance is controlled by the user. Increase or decrease levels at any time during your workout.
  • Page 27 HILL This program follows a triangle or pyramid type of gradual progression from approximately 10% of maximum effort (the level that you chose before starting this program) up to a maximum effort which lasts for 10% of the total workout time, then a gradual regression of resistance back to approximately 10% of maximum effort.
  • Page 28 CARDIO This program presents a quick progression up to near maximum resistance level (default or user input level). It has slight fluctuations up and down to allow your heart rate to elevate, and then recover repeatedly, before beginning a quick cool down. This will build up your heart muscle and increase blood flow and lung capacity.
  • Page 29 CONSTANT POWER A watts program is a controllable constant power whose level adjusts when the speed is changed. Choose either faster pedaling at a lower resistance level or slower pedaling at a higher resistance level. HEART RATE The default value is 65% of your projected rate maximum. You have the option of changing your target heart rate.
  • Page 30 CUSTOM You will create the desired resistance levels for each of the 20 segments of the program using the keyboard on the screen. You may change these levels at any time during the workout. TO BEGIN A CUSTOM PROGRAM: 1. Select the Custom program then press the Enter key to begin customizing the program with your personal data, or just press the Start key to begin the program with the default settings.
  • Page 31 HIIT PROGRAM The HIIT, or High Intensity Interval Training, program takes advantage of the latest trend in fitness. During the program you will perform short bursts of high intensity sprinting followed by short rest periods. HIIT is a fully customizable interval training program. You can enter the number of intervals, time of each interval Sprint and Rest periods and the work intensity of the levels.
  • Page 32 FITNESS TEST The VO2 program is based on the YMCA protocol and is a sub-maximal test that uses pre-determined, fixed work levels that are based on your heart rate readings as the test progresses. The test will take anywhere between 6 to 15 minutes to complete, depending on your level of fitness. The test ends when your heart rate reaches 85% of maximum at any time during the test or your heart rate is between 110 bpm and 85% at the end of two consecutive stages.
  • Page 33 Workload chart for male or very fit female: Stage kgm/min < 90 90 - 105 > 105 Stage kgm/min kgm/min kgm/min HR <120 120-135 HR >135 HR <120 120-135 HR >135 HR <120 120-135 HR >135 1350 1200 1050 1200 1050 1050 stage...
  • Page 34 Before the Test:  Make sure you are in good health; check with your physician before performing any exercise if you are over the age of 35 or persons with pre-existing health conditions.  Make sure you have warmed up and stretched before taking the test. ...
  • Page 35 What your score means: VO2max Chart for males and very fit females 18-25 26-35 36-45 46-55 56-65 years years years years years years excellent >60 >56 >51 >45 >41 >37 good 52-60 49-56 43-51 39-45 36-41 33-37 above average 47-51 43-48 39-42 35-38...

  • Page 36: Target Heart Rate

    TARGET HEART RATE The old motto, “no pain, no gain”, is a myth that has been overpowered by the benefits of exercising comfortably. A great deal of this success has been promoted by the use of heart rate monitors. With the proper use of a heart rate monitor, many people find that their usual choice of exercise intensity was either too high or too low and exercise is much more enjoyable by maintaining their heart rate in the desired benefit range.
  • Page 37 RATE OF PERCEIVED EXERTION There are more variables involved in how hard you should workout than just heart rate. Your stress level, physical health, emotional health, temperature, humidity, the time of day, the last time you ate and what you ate, all contribute to the intensity at which you should workout. The rate of perceived exertion (RPE), also know as the Borg scale, was developed by Swedish physiologist G.A.V.
  • Page 38 Normally the transmitter will be oriented so the Spirit Fitness logo is right side up. 7. The antenna that picks up your heart rate is very sensitive. If there is an outside noise source, turning the whole machine 90 degrees may de-tune the interference.

  • Page 39: General Maintenance

    GENERAL MAINTENANCE 1. Wipe down all areas in the sweat path with a damp cloth after each workout. 2. If a squeak, thump, clicking or rough feeling develops the main cause is most likely one of two reasons: a. The hardware was not sufficiently tightened during assembly. All bolts that were installed during assembly need to be tightened as much as possible.

  • Page 40: Exploded View Diagram And Parts List

    EXPLODED VIEW DIAGRAM...
  • Page 41 PARTS LIST Q’ty Dwg # Part description Main Frame Console Mast Handle Bar Rear Stabilizer Seat Slider Sliding Seat Mount Fix Plate Idler Wheel Assembly Crank Axle Chain Cover Bracket Drive Belt Drive Pulley Crank Arm(L) Crank Arm(R) 6004_Bearing 6203_Bearing Seat Induction Brake EMS Controller...
  • Page 42 Q’ty Dwg # Part description 5 × 19mm_Tapping Screw 5/16" × UNC18 × 1-3/4"_Button Head Socket Bolt 1/4" × UNC20 × 3/4"_Hex Head Bolt M8 × 170mm_J Bolt M6 × 15mm_Phillips Head Screw M5 × 12mm_Phillips Head Screw M4 × 12mm_Phillips Head Screw Ø...
  • Page 43 Q’ty Dwg # Part description M3 × 10mm_Phillips Head Screw Power Cord 80mm_Connecting Wire (Black) 80mm_Connecting Wire (White) Transfer board 400mm_Computer Cable 200mm_Ground Wire board 1500mm_Network Connecting Cable 150mm_Connecting Wire(Black) 150mm_Connecting Wire(White) 1600mm_HDMI Connecting Wire 1200mm_Connecting Wire(Black) 1200mm_Connecting Wire(White) Rubber Pad Ø...
