User Manual

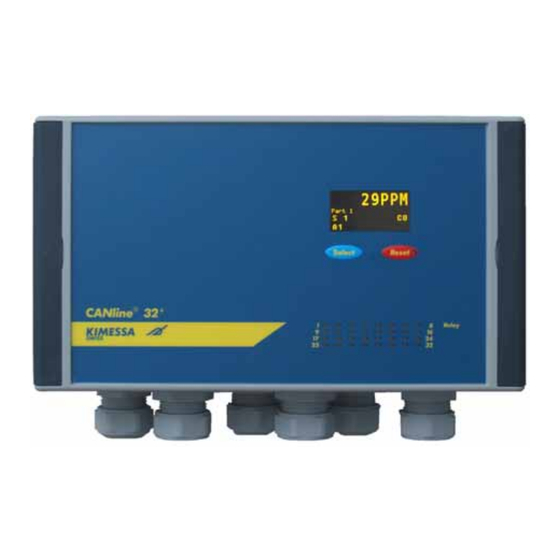

CANline 32
Alarm and Control system
Copyright © 2015 by KIMESSA –Switzerland
lopments, technical changes or deviations may occur.
+
Tel.:
+41 (0)44 404 38 38
Fax: +41 (0)44 404 38 39
Email info@kimessa.com
Home www.kimessa.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Kimessa CANline 32+
- Page 1 Alarm and Control system Copyright © 2015 by KIMESSA –Switzerland All rights are reserved by KIMESSA. Any reproduction, whether in hard or digital copy, even in part, without written permission of KIMESSA-Swiss in any design and shape is prohibited. The information in the documents are created according to current knowledge. Due to ongoing product deve- lopments, technical changes or deviations may occur.
-
Page 2: Table Of Contents
......................................26 LARM RESET "S " ....................... 26 WITCH TO INACTIVE BUTTON FUNCTION ONE SENSOR " S " ..................... 26 WITCH TO INACTIVE BUTTON FUNCTION SEVERAL SENSORS Copyright © 2015 by KIMESSA –Switzerland Page 2/37 CANline 32 User Manual 18.11.15mb... - Page 3 9.12 " " ................................ 36 XIT TO NORMAL OPERATION 9.13 "N " "E " ........................36 ORMAL OPERATION IN THE MAIN MENU DECLARATION OF CONFORMITY ....................37 Copyright © 2015 by KIMESSA –Switzerland Page 3/37 CANline 32 User Manual 18.11.15mb...
-
Page 4: General Information
This applies both for property and for personal injury of any kind. KIMESSA disclaims any liability for any advice and execution errors by personnel which are not permanent employees of KIMESSA. Even if the dealer is acting on behalf of the company, they shall be liable for their own actions. -
Page 5: Warranty
1.4 Warranty KIMESSA AG guarantees the quality of all its products. It grants a guarantee on the material, under normal use and regular maintenance, for 12 months from the date of purchase. A later commissioning of the products does not extend the guarantee period, since for example sensors age due to storage conditions. KIMESSA shall re- pair or replace free of charge any part which proves to be defective within the warranty period. -
Page 6: Risk / Potential Hazard
1.8 Risk / Potential hazard KIMESSA gas detection systems and transmitters pose no risks subject to a proper and appropriate. use of our systems and components, these represent no hazard. A threat of non-execution or false alarm is only given when untrained and unauthorized personnel operate the gas detection system, transmitters and input signals. - Page 7 During installation and operation of the equipment, it must be ensured that no electrostatic charges (no high flow rate; cleaning with a damp cloth, etc.) occur on the plastic parts (type label, plastic housing). Copyright © 2015 by KIMESSA –Switzerland Page 7/37 CANline 32...
-
Page 8: Definition Of The Signal Words
Please note the regulations concerning the transport and storage of gas bottles. Gas detection systems are used for protection of persons and property and may be retrieved or serviced only by trained personnel. A product training and authorisation by KIMESSA is com- pulsory. - Page 9 (complete 2years) maintenance Physical, chemical properties of ga- Personnel Qualification ses/vapours Training (complete 2years) "Trained" Person "Qualified" professionals "Competent" person "Competent" person (Explosion protection, regulations) Copyright © 2015 by KIMESSA –Switzerland Page 9/37 CANline 32 User Manual 18.11.15mb...
- Page 10 PSA is not necessary Disposal Employee represen- the appropriate collection is per- None tatives formed according to EU Directive (2002/96 / EC) Copyright © 2015 by KIMESSA –Switzerland Page 10/37 CANline 32 User Manual 18.11.15mb...
-
Page 11: Usage
In conjunction with the KIMESSA BUS sensors, there are many cost-saving cabling possibilities, which also include connecting in KIMESSA BUS signals so that only one cable has to be run. Other features include the ability to record over long periods of time using a MicroSD memory card. -
Page 12: Canline 32 + Construction
Wago connection terminal plugs for 4 analogue sensors, the terminals connector for the KIMESSA CAN BUS, a Modbus RTU connection, a ground terminal, 8 potential-free relay outputs with corres- ponding connection terminal plugs and fuses. The lower part of the housing is connected to the upper part with plastic brackets, ensuring that the connection terminal plugs are open and accessible. -
Page 13: Installation
Areas in which gases appear: In the vicinity above or below a potential leakage point • Areas in which gases accumulate: In the upper and lower spaces of a room Copyright © 2015 by KIMESSA –Switzerland Page 13/37 CANline 32 User Manual 18.11.15mb... -
Page 14: Mechanical Installation Of Can Line 32
Install the control unit directly on the wall or in the control cabinet on DIN rails or on/in the control cabinet door. After installation, attach the upper part again (plastic brackets). Close the control unit and check the fit: If the back panel is properly installed, the control unit closes easily. Copyright © 2015 by KIMESSA –Switzerland Page 14/37 CANline 32... -
Page 15: Delivery Contents , Can Line 32 + Gas Detection Control Unit
W+ = 156.5 mm Open/close the gas detection control unit, remove it from/install it via the back panel by screwing in/unscrewing the housing screws (M3 flat screwdriver or M3 Phillips head screwdriver). Copyright © 2015 by KIMESSA –Switzerland Page 15/37 CANline 32... -
Page 16: Electrical Installation/Connecting The Control Unit
In each case, the cable cross section must be calculated. The length of the + wire and the −wire and the total power consumption must be taken into consideration Copyright © 2015 by KIMESSA –Switzerland Page 16/37 CANline 32... -
Page 17: Kimessa-Cable
The insulation and sheath are made of a special plastic (LSZH) which prevents halogen gases from being emitted in the case of a fire. KIMESSA electronics cables are therefore suitable for installation in public buildings (hospitals, theaters, etc. ). The good protection by the shield of a thin and effective copper braid allows for interference-free signal and impulse transfer. -
Page 18: Electrical Installation/Emc And Atex
Gland body and nut must be tightened with tight with the other hand. This way the braided a torque of 20 Nm shilded Rosette keeps its position. Copyright © 2015 by KIMESSA –Switzerland Page 18/37 CANline 32 User Manual 18.11.15mb... - Page 19 - ?-wired standard cable with shield - Conductor cross-section: 1 mm2 - Cable diameter 7.1 mm, KIMESSA special cable • Running cable - If risk of mechanical damage is possible, the cable must be appropriately protected (protective tube, etc.)
- Page 20 - Check whether the device is ready for operation The parameterization for this application must be carried out All interfaces such as inputs and outputs for control purposes must be connected and ready. Copyright © 2015 by KIMESSA –Switzerland Page 20/37 CANline 32...
-
Page 21: Canline 32 + Connections
Bus-line (Analogue) connection 1 Fig. 2 CANline 04-connection-board Connection Bus-line Reset (exter- Connection 230 VAC connection 2 nal, digital) Sensor 3 and 4 power connec- (Analogue) tion Copyright © 2015 by KIMESSA –Switzerland Page 21/37 CANline 32 User Manual 18.11.15mb... -
Page 22: Wiring Schematic For Connection Of 4-20Ma Detectors (Max. 4)
5.1 Wiring Schematic for connection of 4-20mA detectors (max. 4) 5.2 Wiring Schematic for connection of digital BUS detectors (max. 32) Copyright © 2015 by KIMESSA –Switzerland Page 22/37 CANline 32 User Manual 18.11.15mb... -
Page 23: Wiring Schematic For Realy Contacst (Standard)
5.3 Wiring Schematic for realy contacst (standard) Copyright © 2015 by KIMESSA –Switzerland Page 23/37 CANline 32 User Manual 18.11.15mb... -
Page 24: Bus-Expander Wiring Concept: Expanding Canline System For Up To 128 Bus Detectors
2. Use connection at “BUS 1” Connector on CANline 32 3. Use connection RS485 (left) on CANline BUS-Expander 4. Use connection „CAN“ (right) on CANline BUS- Expander to connect gas detectors and relay cards Copyright © 2015 by KIMESSA –Switzerland Page 24/37 CANline 32 User Manual 18.11.15mb... -
Page 25: User Comfort
7 User comfort 7.1 Front view, dimensions and control elements Dimensions: Height 90 Width 230 Depth 130 Weight 1.10 kg 7.2 Front functions Copyright © 2015 by KIMESSA –Switzerland Page 25/37 CANline 32 User Manual 18.11.15mb... -
Page 26: Alarm Reset
The same procedure can be performed in order to manually reactivate the sensors. All sensors are then switched to "inactive" for a period of 4 hours. After 4 hours, the sensor is automatically reactivated if it has not already been activated manually. Copyright © 2015 by KIMESSA –Switzerland Page 26/37 CANline 32... -
Page 27: Switching On
This can be Fig 4 TEST cancelled with the "RESET" button. As seen on the display (right), the menu can be accessed by using the buttons. Copyright © 2015 by KIMESSA –Switzerland Page 27/37 CANline 32 User Manual 18.11.15mb... -
Page 28: Main Menu
Display of the sensor with the highest measured concentration By pressing the SELECT button twice, use the "> button" to choose Alarm History 1, thereby displaying the sen- sor with the highest value. Copyright © 2015 by KIMESSA –Switzerland Page 28/37 CANline 32... -
Page 29: First Steps To The Menu
If you are in the Menu, the respective menu item is high- lighted in yellow, and the buttons Previous "<" ; "Ok" and forward ">" are visible in the display Copyright © 2015 by KIMESSA –Switzerland Page 29/37 CANline 32 User Manual 18.11.15mb... -
Page 30: System Info Menu
"Service Message Service Reset Now," whereby the display of the message returns to "System Info Next Service" in the menu without changing the setting of the interval. Copyright © 2015 by KIMESSA –Switzerland Page 30/37 CANline 32 User Manual 18.11.15mb... -
Page 31: Quantity Of Sensors - System Info
Return to "normal operation" by pressing the ">" button or "<" button until you reach "Exit": "OK" button; for "System Info," with ">" button or "<" button until you reach "Exit": "OK" button: for "Normal operation" Copyright © 2015 by KIMESSA –Switzerland Page 31/37 CANline 32... -
Page 32: Dc Voltage Info - System Power
Return to "normal operation" by pressing the ">" button or "<" button until you reach "Exit": "OK" button; for "System Info," with ">" button or "<" button until you reach "Exit": "OK" button: for "Normal operation," Copyright © 2015 by KIMESSA –Switzerland Page 32/37 CANline 32... -
Page 33: Alarm History 1 ... 10 - S Ensor 3 Alarm - History 2 - System Info
"Alarm History 1 ... 10" and then the ">" button or the "<" button to" Exit ": "OK" button; for "System Info," with ">" button or "<" button until you reach "Exit": "OK" button: for "Normal operation" Copyright © 2015 by KIMESSA –Switzerland Page 33/37 CANline 32 User Manual 18.11.15mb... -
Page 34: Relay Check 1 ... 8 / M Enu Structure / System Info
Return to "normal operation" with the "OK" button; for "Relay check," "<" button or "<" button unto "Exit": "OK" button; for "Relay Check 1 ... 8,": "> Button" or "<button" until "Exit" "OK" button: for "Normal operati- on" Copyright © 2015 by KIMESSA –Switzerland Page 34/37 CANline 32... -
Page 35: Exit To Main Menu
"Service Message" 9.11 Exit to main menu Likewise, by using the button functions ">", "OK / SELECT" and ">" buttons you can return to the main menu. Copyright © 2015 by KIMESSA –Switzerland Page 35/37 CANline 32 User Manual 18.11.15mb... -
Page 36: Exit To "Normal Operation
9.13 "Normal operation" via "Exit" in the main menu Likewise, by using the button functions ">", "OK / SELECT" and ">" buttons you can return to the main menu. Copyright © 2015 by KIMESSA –Switzerland Page 36/37 CANline 32 User Manual 18.11.15mb... -
Page 37: Declaration Of Conformity
10 Declaration of Conformity Copyright © 2015 by KIMESSA –Switzerland Page 37/37 CANline 32 User Manual 18.11.15mb...
