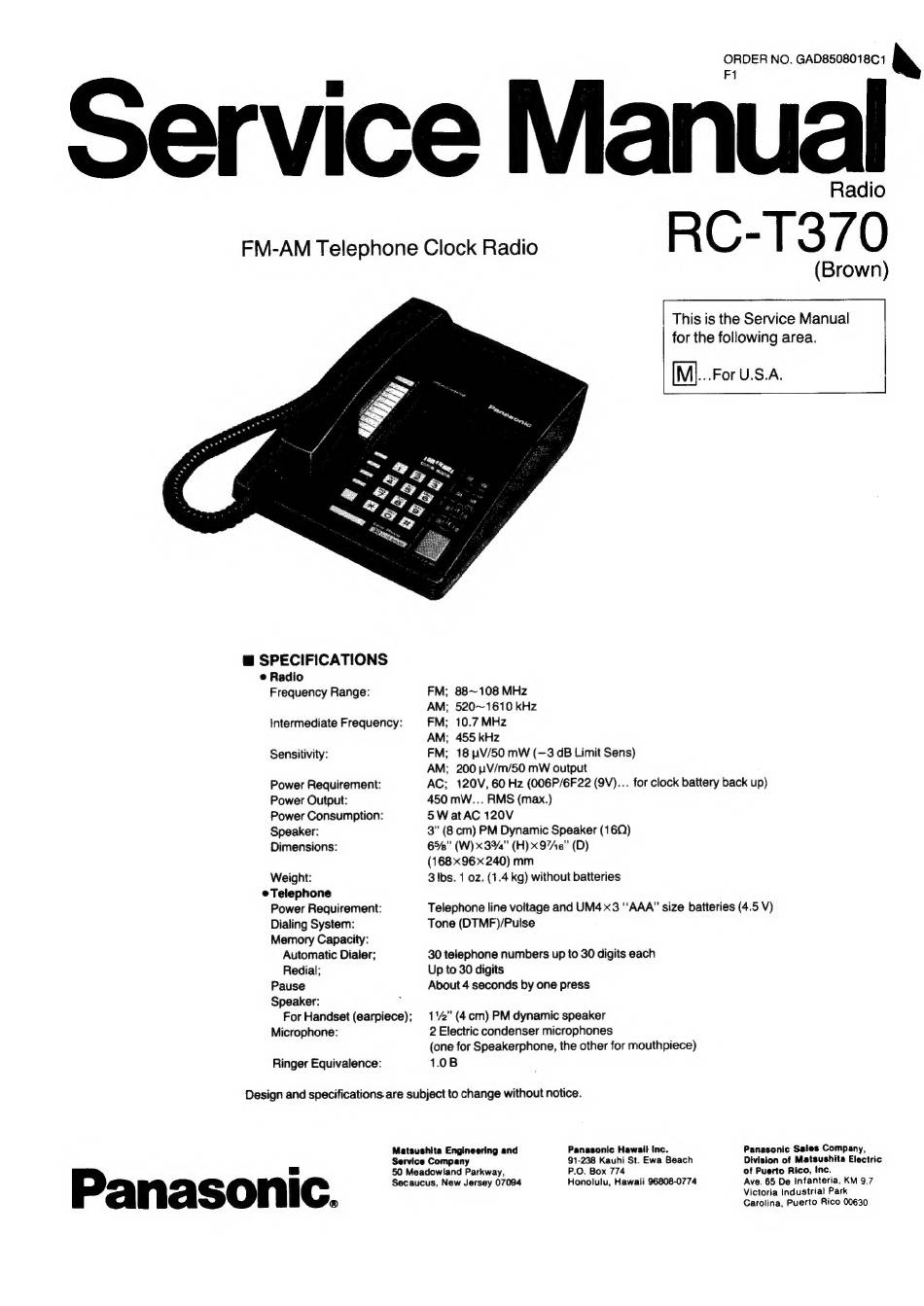

ORDER NO. canesoeorect
FA

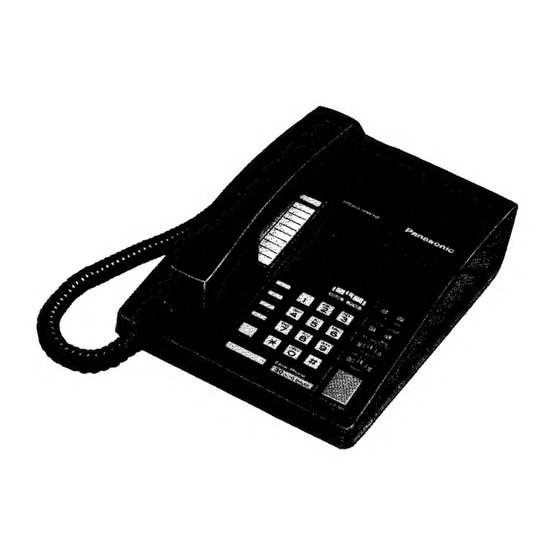

FM-AM Telephone Clock Radio
@ SPECIFICATIONS
© Radio
Frequency Range:
Intermediate Frequency:
Sensitivity:
Power Requirement:
Power Output:
Power Consumption:
Speaker:
Dimensions:
Weight:
Telephone
Power Requirement:
Dialing System:
Memory Capacity:
Automatic Dialer;
Redial;
Pause
Speaker:
For Handset (earpiece);
Microphone:
Ringer Equivalence:
Radio
RC-1T370
(Brown)
This is the Service Manual
for the following area.
[M]...For U.S.A.
4
FM; 88~108 MHz
AM; 520~1610 kHz
FM; 10.7 MHz
AM; 455 kHz
FM; 18 V/50 mW (—3 dB Limit Sens)
AM; 200 uV/m/50 mW output
AC; 120V, 60 Hz (O06P/6F22 (9V)...
450 mW... RMS (max.)
5 Wat AC
120V
3" (8 cm) PM Dynamic Speaker (16)
658" (W) x3" (H)x97A6" (D)
(168
x96 x 240) mm
3 Ibs. 1 oz. (1.4 kg) without batteries
for clock battery back up)
Telephone line voltage and
UM4 x3 "AAA" size batteries (4.5 V)
Tone (DTMF)/Pulse
30 telephone numbers up to 30 digits each
Up to 30 digits
About 4 seconds by one press
1%" (4cm) PM dynamic speaker
2 Electric condenser microphones
(one for Speakerphone, the other for mouthpiece)
1.0B
Design and specifications.are subject to change without notice.
Panasonic.
Matsushita Engineering and
Service Company
50 Meadowland Parkway,
Secaucus, New Jersey 07094
Panasonic Hawaii Inc.
91-238 Kauhi St. Ewa Beach
P.O. Box 774
Honolulu, Hawaii 96808-0774
Panasonic Sales Company,
Division of Matsushita Electric
of Puerto Rico, Inc.
Ave. 65 De Infanteria, KM 9.7
Victoria Industrial Park
Carolina, Puerto Rico 00630
