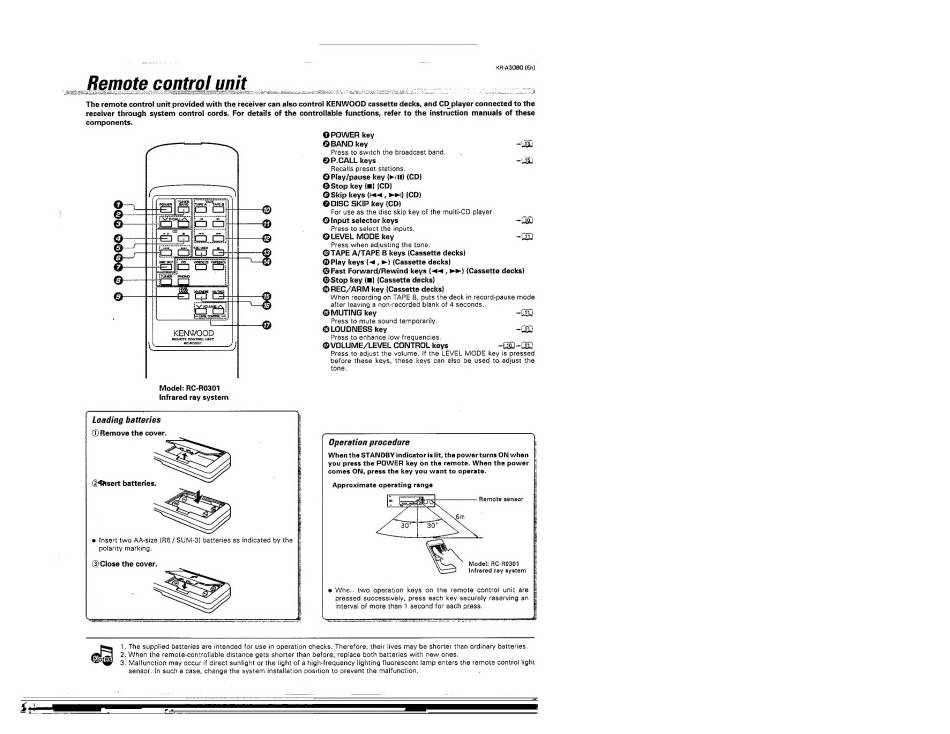

Remote controlunit ___. ke
ahs SaneirRebateagieensy Sopra pipe pena coasts Sites eaten a are RBIS, OD COLES fothsermes ee ee ee ee
The remote control unit provided with the receiver can also control KENWOOD cassette decks, and CD player connected to the
receiver through system control cords. For details of the controllable functions, refer to the instruction manuals of these
components.
KR-A3O8O (En)
Enel
@POWER key
@ BAND key — (73)
Press to switch the broadcast band,
©P.CALL keys =
Recalls preset stations.
@ Piay/pause key (»/11) (CD)
© Stop key (m) (CD)
@ Skip keys (<< , >») (CD)
@DISC SKIP key (CD)
For use as the disc skip key of the multi-CD player.
Q Input selector keys (79)
Press to select the inputs.
©LEVEL MODE key ~(t1)
Press when adjusting the tone.
TAPE A/TAPE 8 keys (Cassette decks)
@ Play keys (<, ») (Cassette decks)
@® Fast Forward/Rewind keys (<4 , »») (Cassette decks)
@ Stop key (m) (Cassette decks)
@®REC/ARM key {Cassette decks)
When recording on TAPE B, puts the deck in record-pause mode
after leaving a non-recorded blank of 4 seconds.
@MUTING key ~(iu
Press to mute sound temporarily. a0
@LGUDNESS ke ~fiti
KENWOOD Press to Ene fan frequencies.
\ —— j @®VOLUME/LEVEL CONTROL keys ~( 19) ~Ci
Press to adjust the volume. If the LEVEL MODE key is pressed
before these keys, these keys can also be used to adjust the
tone.
ha
Sy 3) Sx 9C789) O36
Model: RC-R0301
Infrared ray system
Loading batteries
CD) Remove the cover.
Operation procedure
When the STANDBY indicator is lit, the power turns ON when
you press the POWER key on the remote. When the power ;
comes ON, press the key you want to operate. re
@4hsert batteries.
Approximate operating range
Remote sensor
e Insert two AA-size (R6 / SUM-3} batteries as indicated by the
polarity marking. E e
Model: RC-RO0301
@Close the cover.
Infrared ray system
e Whe.. two operation keys on the remote control unit are
pressed successively, press each key securely reserving an
interval of more than 1 second for each press.
2. When the remote-controllable distance gets shorter than before, replace both batteries with new anes.
3. Malfunction may occur if direct sunlight of the light of a high-frequency lighting fluorescent lamp enters the remote control light
sensor. In such a case, change the system installation position to prevent the malfunction.
ade 1. The supplied batteries are intended for use in operation checks. Therefore, their lives may be shorter than ordinary batteries.
