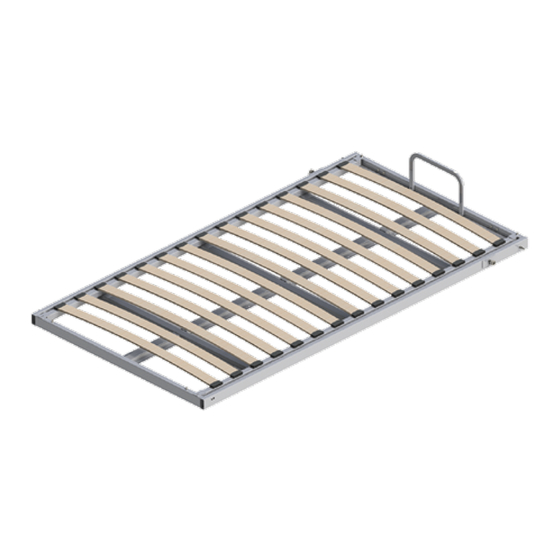

Installation Instructions: Comfort slat system for twin vertical wall bed
Item Number: 271.92.261
HARDWARE LIST
A
C
E
F
G
The pistons are now installed,
therefore, the bed will NOT stay down
without the weight of the mattress.
You MUST have another person hold
down or sit on the bed to avoid the risk
of serious injury or death from the bed
slamming shut.
Side supporting bar for slat system
One-way clip for plywood slats
M6 Screw
5-ply poplar plywood comfort slat
5mm Hex Key
This product is meant to be used with a
Häfele wall bed system and needs to be
installed after the wall bed has been fully
and safely assembled and secured to the
wall.
Please note that to simplify these
instructions, the visual of the wall bed
has been removed.
1-800-423-3531 • www.hafele.com
x2
x30
x4
x15
x1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Häfele 271.92.261
Summary of Contents for Häfele 271.92.261
- Page 1 Installation Instructions: Comfort slat system for twin vertical wall bed Item Number: 271.92.261 HARDWARE LIST Side supporting bar for slat system One-way clip for plywood slats M6 Screw 5-ply poplar plywood comfort slat 5mm Hex Key The pistons are now installed,...
- Page 2 INSTALLING THE SIDE SUPPORTS: Using E screws, secure the side supporting bars A in place. INSTALLING THE ONE-WAY CLIPS ON THE FIRST SIDE SUPPORT: Take half of the one-way clips C and insert in place on the first side supporting bar A. Recommended tool (not included): INSTALLING THE REST OF THE ONE-WAY CLIPS ON THE SLATS:...
- Page 3 INSTALLING THE SLATS ON THE STRUCTURE: 1. Insert the end of the slat F in the one-way clip C that is already installed on the supporting bar A. 2. Align the pins of the one-way clip C into the holes of the opposite bar side supporting bar A and use the rubber mallet to insert into place.
