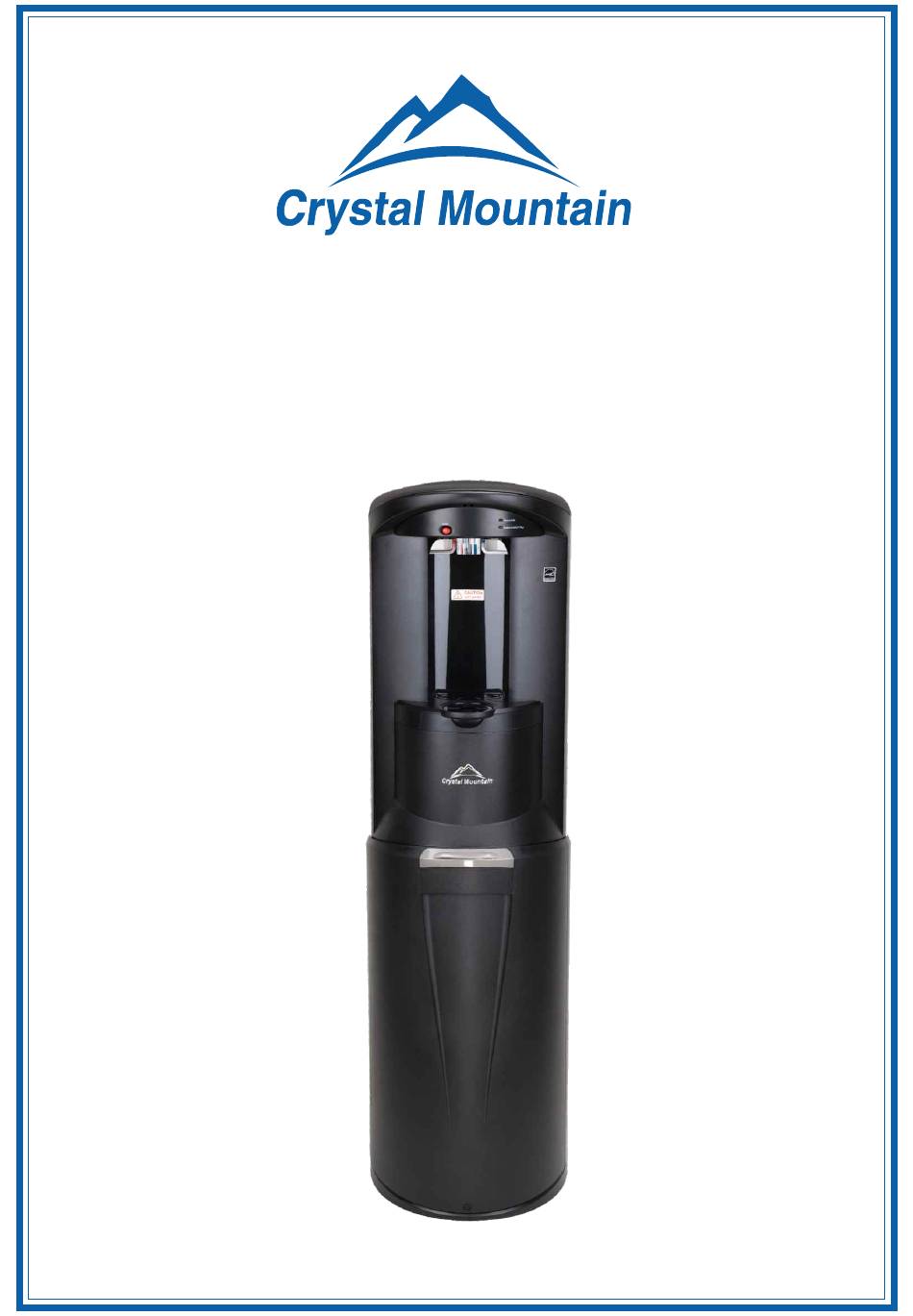

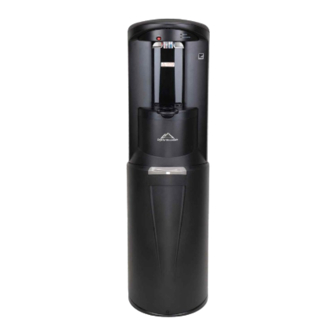

- Page 1 AutoFill STORM Bottom-Load Water Dispenser User Manual...
- Page 2 EXTERNAL PARTS OF THE AUTOFILLSTORM Hot Water Lever Blue Elbow Fitting Child Resistant Bottle Cap Cold Water Lever Corrugated Tube SmartFlo Plus Low Water Level Indicator Water Bottle (Not included) SmartFlo Plus Change Hot Tank Power Switch Water Outlet Water Supply Drip Tray and Cover Blue Fitting Dispense Light...
-
Page 3: Safety Precautions
SAFETYPRECAUTIONS WARNING To reduce risk of injury and property damage, user must read this entire guide before assembling, installation and operation of the dispenser. Failure to follow the instructions in this manual can cause personal injury or property damage. This product dispenses water at very high temperatures. Failure to use properly can cause personal injury. - Page 4 FEATURES Function Lights Blinking Red light on top indicates that the bottle is nearly empty. Blinking Blue light on the bottom indicates that the SmartFlo Plus Water Cartridge has reached its (suggested) usage limit date and should be changed. Cold Water Lever –...
-
Page 5: Getting Started
GETTING STARTED Locate Water Dispenser 1. Place the water cooler on a flat level surface in a cool shaded location near a grounded wall outlet. DO NOT PLUG UNIT INTO ELECTRICAL OUTLET AT THIS TIME. 2. Position water dispenser so that the back of the unit is a minimum of 4 inches (10 cm) away from the wall to ensure proper ventilation (Figure 1). - Page 6 Provide Electricity Ensure that the available power supply matches the cooler’s voltage specifications indicated on the nameplate label (located at the rear of unit). Plug power supply cord into receptacle. Please ensure that cooler is set up so as access to the power outlet and plug is unobstructed. NOTE: DO NOT turn on the Hot Tank Power Switch yet.
- Page 7 Optimum hot water temperatures will be reached after 15-20 minutes 1. Position bottle, glass or other container below water outlet (Figure 10). 2. Push the Red safety button in, and depress (push downwards) the hot water lever to start hot water flow (Figure 11).
- Page 8 8. Slide bottle into cabinet and close the door (Figure 19 to Figure 21) (slide door downwards to close). Figure 19 Figure 20 Figure 21 . The SmartFlo Plus pump motor may run for a few seconds, after it has stopped, place a container under faucet and dispense Hot and cold water until a smooth stream of water is dispensed (may take up to 1 minute).
- Page 9 5. Open the replacement SmartFlo Plus Water Cartridge kit, and remove the access key provided. Insert the access key into the 2 holes located at the underside of the top edge of the cooler (above water levers) and push inwards (Figure 6 and Figure 7)(once unlocked, the front of the top cover opens upwards).
- Page 10 18. Remove replacement bottle adaptor from packaging and install onto new, full bottle (Figure 16). Note: to maintain sanitization of the system, refrain from touching the section of the bottle adaptor tube that is inserted into the bottle. 19. Remove protective cap from the SmartFlo Plus water line and install onto the replacement bottle adaptor assembly (Figure 17).
-
Page 11: Troubleshooting
CAUTION! ALWAYS DRAIN WATER COMPLETELY BEFORE SHIPPING OR STORING THE COOLER! TROUBLESHOOTING Notice:The information and/or procedures presented in the following demonstration(s) should be performed by a trained Water Cooler Service Technician only. Never attempt to service or repair a water cooler while it is plugged into any power supply. - Page 12 DOC-C100210 Rev0424...
