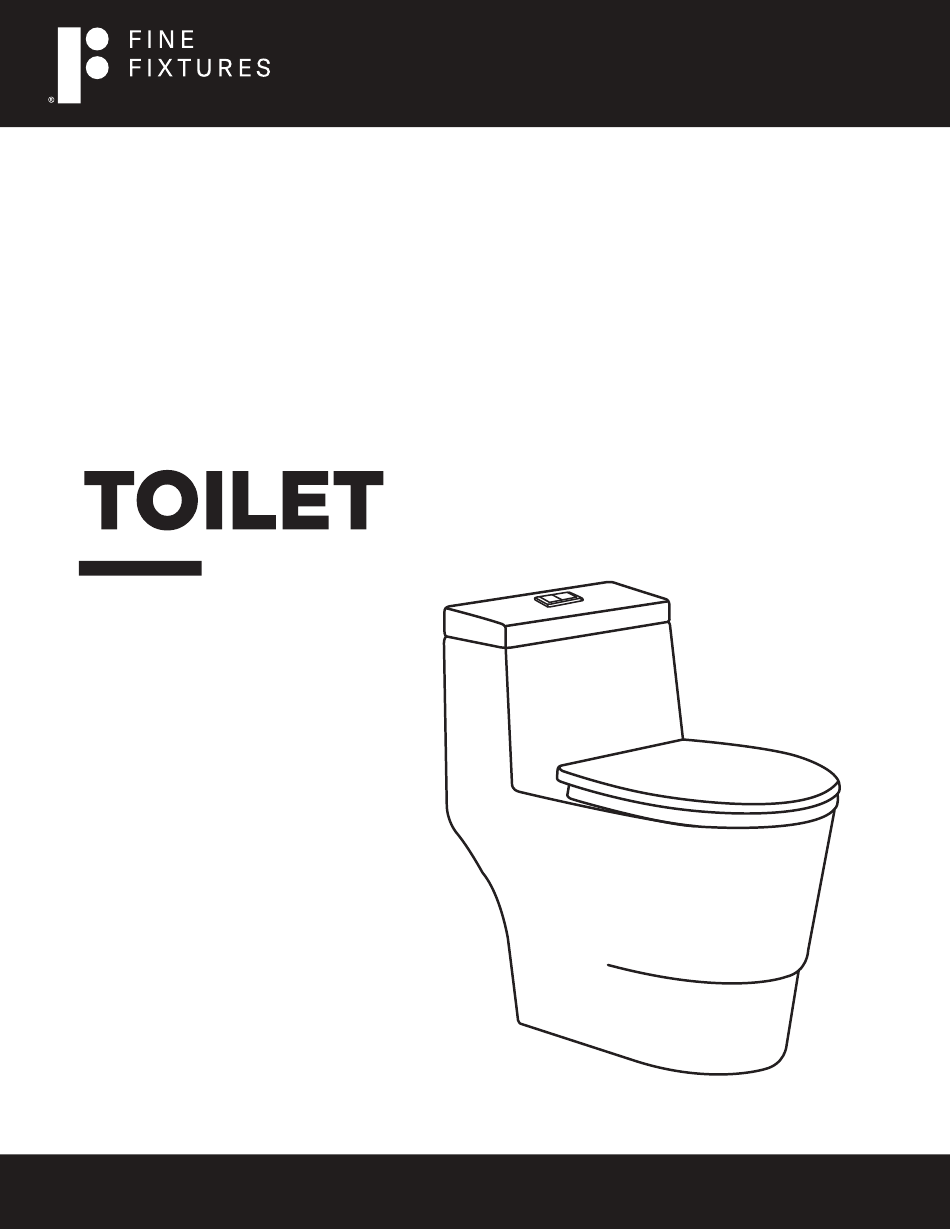

- Page 1 206 Wembly Road New Windsor, NY 12553 Phone: 718.602.6060 Fax: 718.963.2082 info@finefixtures.com www.finefixtures.com INSTALLATION INSTRUCTIONS HIGH EFFICIENCY ONE PIECE MODEL# MOTB12W...
-
Page 2: Tools Required For Installation
READ ALL INSTRUCTIONS BEFORE UNPACKING THE PRODUCT INSTRUCTIONS THAT, IF IGNORED, COULD RESULT IN DEATH OR SERIOUS INJURY CAUSED BY INCORRECT HANDLING OR INSTALLATION OF THE PRODUCT. THESE INSTRUCTIONS MUST BE OBSERVED FOR SAFE INSTALLATION. ATTENTION! PEOPLE ARE REQUIRED TO LIFT AND DURING ENTIRE INSTALLATION OF THIS PRODUCT INSTALLATION OF THIS PRODUCT BY AN INEXPERIENCED INSTALLER MAY RESULT... -
Page 3: Dimensions/Technical Data
DIMENSIONS/TECHNICAL DATA MODEL# MOTB12W ATTENTION! Dimensions may vary by up to 3/8". It is highly recommended to pull all dimensions of actual model for installation and measuring purposes. - Page 4 90º Bathroom Wall Bathroom 90º Floor ROUGH-IN Closet Flange PREPARE CLOSET FLANGE • Make sure that rough-in is 12" by measuring • Insert 2 floor bolts inside of the toilet flange the distance from the wall to the center of •...
- Page 5 INSTALL CLOSET BOLTS • Once the toilet is leveled install washers and nuts over the closet bolts. • Tighten nuts. • Do not overtighten the nuts, It may and will cause damage to the base. Washer Disc Bolt Do not overtighten nut on the tank connec- tion.
- Page 6 CONNECT TANK TOILET TO WATER SUPPLY LINE Tank Top View (Inside) • Flush GPF amount is factory set. • No additional adjustment is required Half Flush Full Flush (1GPF) (1.6GPF) • Adjust the water level in the toilet's tank if neccessary by rotating the adjustment screw to increase (+) or decrease (-) a level of water in the toilet's tank..
- Page 7 ADJUSTMENT & MAINTENACE (FILL VALVE) • When valve installed, the critical level mark on fill valve (identified by C.L. mark on valve body) 95mm shoud be at least 1" above top of the over flow pipe. 58mm • Required: Water temperature: 36-112ºF •...
-
Page 8: Water Level Adjustment
WATER LEVEL ADJUSTMENT Remove the worn-out fittings and clean your tank prior to the installation of the new ones. There might be a lot of impurities in your tank that may cause damage to the new parts if you do not clean them out. The tank must be absolutely clean prior to installation. Rotate screw to adjust Unscrew desired water level... -
Page 9: Troubleshooting
FILL VALVE CLEANING Shut off water supply line Carefully, take out the Use water to wash and Re-install the filter and before filter cleaning. filter from inlet by using clean the filter and adapter re-connect the water pliers. from any debris. supply line. -
Page 10: Attach Seat
ASSEMBLE HINGES PREPARATION TOILET SEAT Separate the cover cap INSTALLATION from the hinge. Pull INSTALL HINGES ATTACH SEAT ADJUST SEAT Insert hinges with blind Align seat to the hinges, Adjust seat to align to hole screw fixings then light tighten the the bowl. - Page 11 TIGHTEN HINGES COVER HINGES Tighten hinges with a screwdriver Place the covers onto the hinges. after alignment TOILET SEAT USAGE • To remove, push middle button until you hear a “click”, then pull straight up. • To re-install, align hinge posts with reference marks on seat, then push down until your hear a “click”.
- Page 12 F I N E F I X T U R E S 206 WEMBLY ROAD - NEW WINDSOR, NY 12553 P: 718.602.6060 F: 718.963.2082 - E: INFO@FINEFIXTURES.COM TOLL FREE: 1.877.8FIXTURES FINEFIXTURES.COM RETAIN THIS INSTALLATION MANUAL FOR FUTURE REFERENCE.
