- Page 1 Installation Guide Handlebar CC.01...

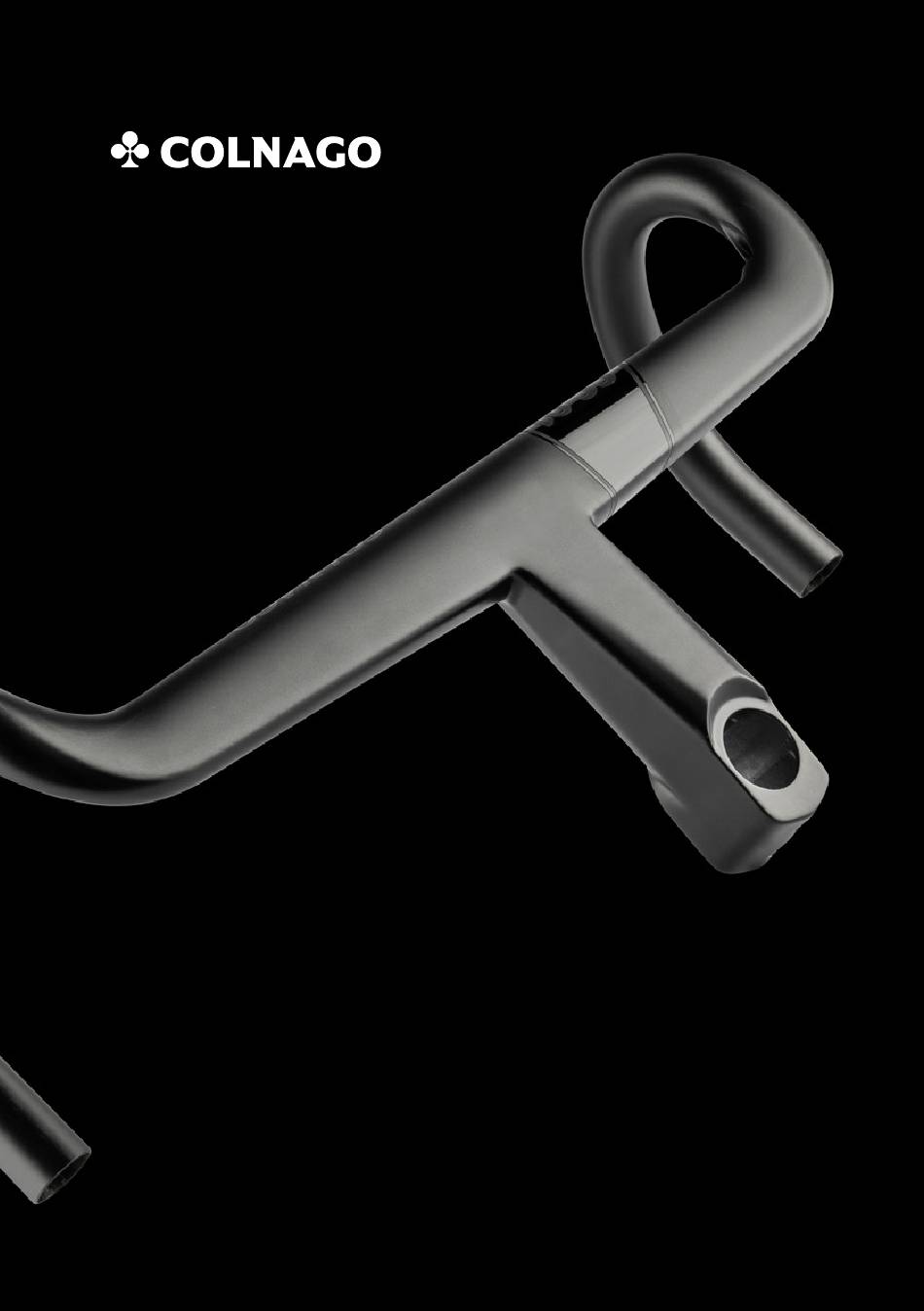

- Page 2 Handlebar CC.01...
- Page 3 Take the metallic plates that hold the handlebar in position. Holding the plates together, insert the assembly into the handlebar. The rounded edge of the threaded one will face up. Insert the M6 screws into the the threaded holes with a 3 millimiter Bottom view of the assembly inserted into the handlebar.
- Page 4 Take the fork expander and make it loose with a 6 millimiter Allen After the fork has been cut to the desired height, insert the assembly key, just enough to get it through the fork tube . Get it stuck together into the fork tube, until the metallic sleeve’s upper edge bottoms out with the black metallic sleeve with the help of the o-ring.
- Page 5 Correct disposition of the headset: the cables from the brake levers The plastic plate locks the handlebar together with the spacers, by (or from the shifters) are routed into the compression ring and the his pins. Ceramicspeed bottom spacer. The cables run in front of the fork. Before inserting the handlebar into the fork, take the plastic plates Correct insertion of the handlebar on the headset.
- Page 6 Correct mounting of the handlebar on the headset: the gap (2 Incorrect mounting of the handlebar: there’s gap between fork and millimeters) between the fork tube and the handlebar upper surface handlebar, but the fork is higher than the handlebar upper surface. allows to compress the bearings with the preload sleeve Insert the metallic sleeve and lock it in position with a 5 millimeters Incorrect mounting of the handlebar: there’s gap between fork and...
- Page 7 In case you do not want any spacers over the fork, take the oval Insert the rest of the multiool by locking it gently. shaped top cap. The arrow indicates the upper side. Insert the multitool into the cap starting with the valve core Slide the multitool in position with a light tap.
- Page 8 In case you do want any spacers over the fork a different top cap is Lock the metallic sleeve and preload the headset with the 5 required. Put it over the stem and put the spacers on it. millimeters Allen key. Insert the multitool into the round top cap the same way as depicted before.
- Page 9 Use the 3 millimeters Allen key to tight the handlebar rear screws. Lock the universal mount in position with the M5 x 0.8 bolt. Torque is to be set at 6 Newton meters. Tightening torque is 3 Newton Meters. Use a 4 millimeters Allen Key. Double check the torque of both bolts to make sure the metallic Put the nut into the exagonal shaped slot.
- Page 10 Fix the mount into the desired position by tightening the bolt with the 3 millimeters Allen Key. The side with a single exagonal slot is facing downwards.
