Electric connection

The mains connection must be carried out by an expert
electrician. The VDE-regulations and the valid pre-
scriptions by the local power suppy boards have to be
compiled with.
Prior to connection it should be checked whether the
voltage stated on the type plate -- i.e. the nominal vol-
tage of the appliance and of the oven/control box -- is
identical with the prevailing mains voltage. The type
plate ist located on the hobs bottom.
The heating element voltage amounts to 230 V
appliance will also perfectly perform with the former
mains voltage of 220 V µ
The mains connection must be carried out in a way that
an all--pole insulating device is existing with a contact
opening of at least 3 mm, e.g. LS--automatism, earth--
leakage circuit--breaker or fuse.
Connect cable-plug with appropriate receptacle fixed
on oven or control box.
Furthermore attention should be paid to the assembly
instructions for the built-in switch box or oven with
which the hob is connected!
Prior to first use remove any possibly existing labels
and protective foils from the ceramic glass plate or the
frame of the hob.
After connection to the power supply all hea-
ting elements are to be switched on shortly at
maximum setting one after another, in order to
check the operability.
ZK 64 W
MODELL:
TYP: KEE2 006
Ser.Nr.: . . . . . . . . . . . .
Made in Germany
ZANUSSI
ZK 64 B
MODELL:
TYP: KEE2 006
Ser.Nr.: . . . . . . . . . . . .
Made in Germany
ZANUSSI

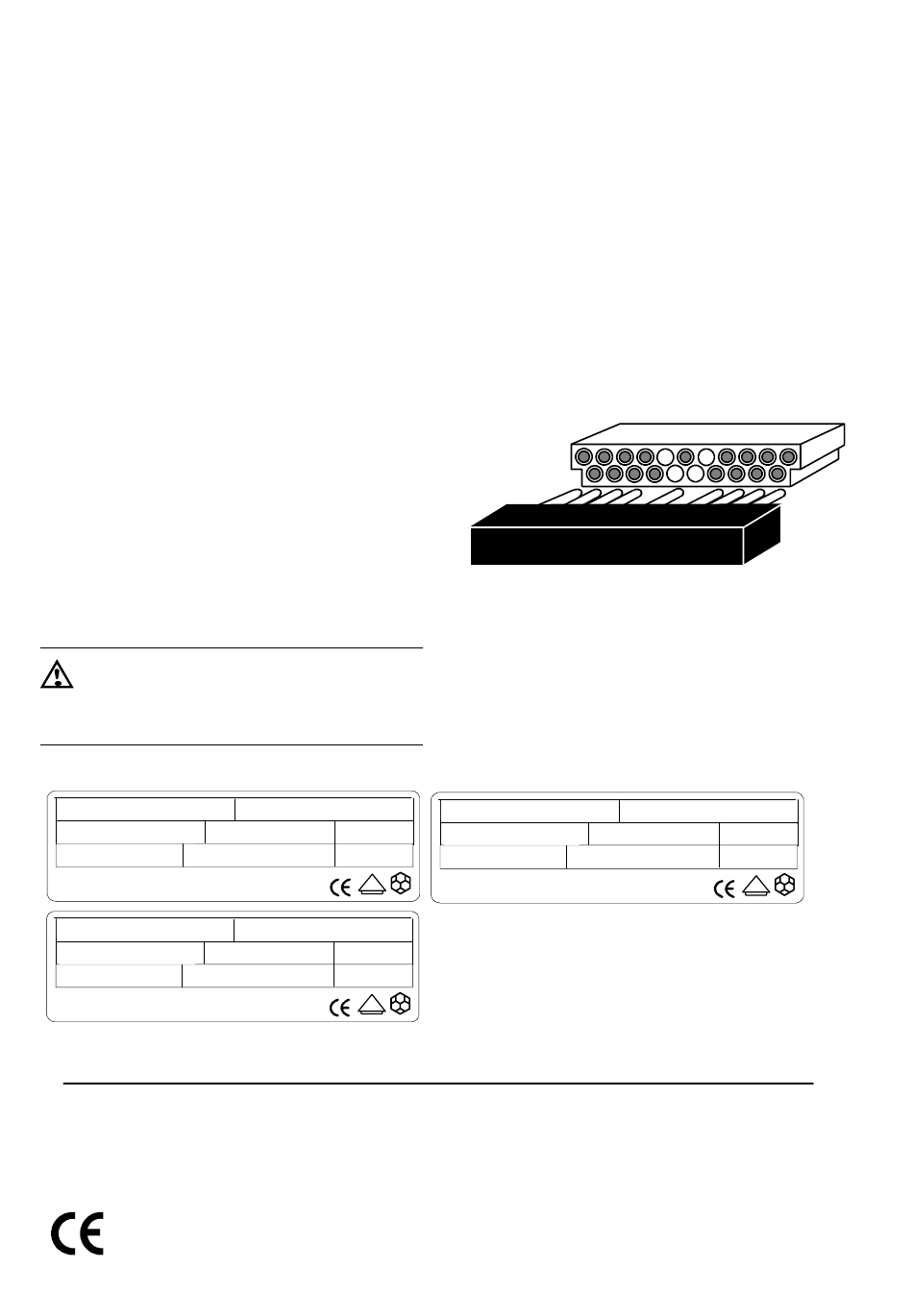

The type plate is placed on the bottom of the appliance. After built-in and installation you
cannot look at this informations. So please notice the „F.-Nr." into the beside type plate.
This appliance is corresponding
to the EG-rules 73/23/EWG,
89/336/EWG, 90/683/EWG.
µ
.
949 591 331
Prod.Nr.
230 V AC 50 Hz
5,8 kW
V
D E
949 591 332
Prod.Nr.
230 V AC 50 Hz
5,8 kW
V
D E
