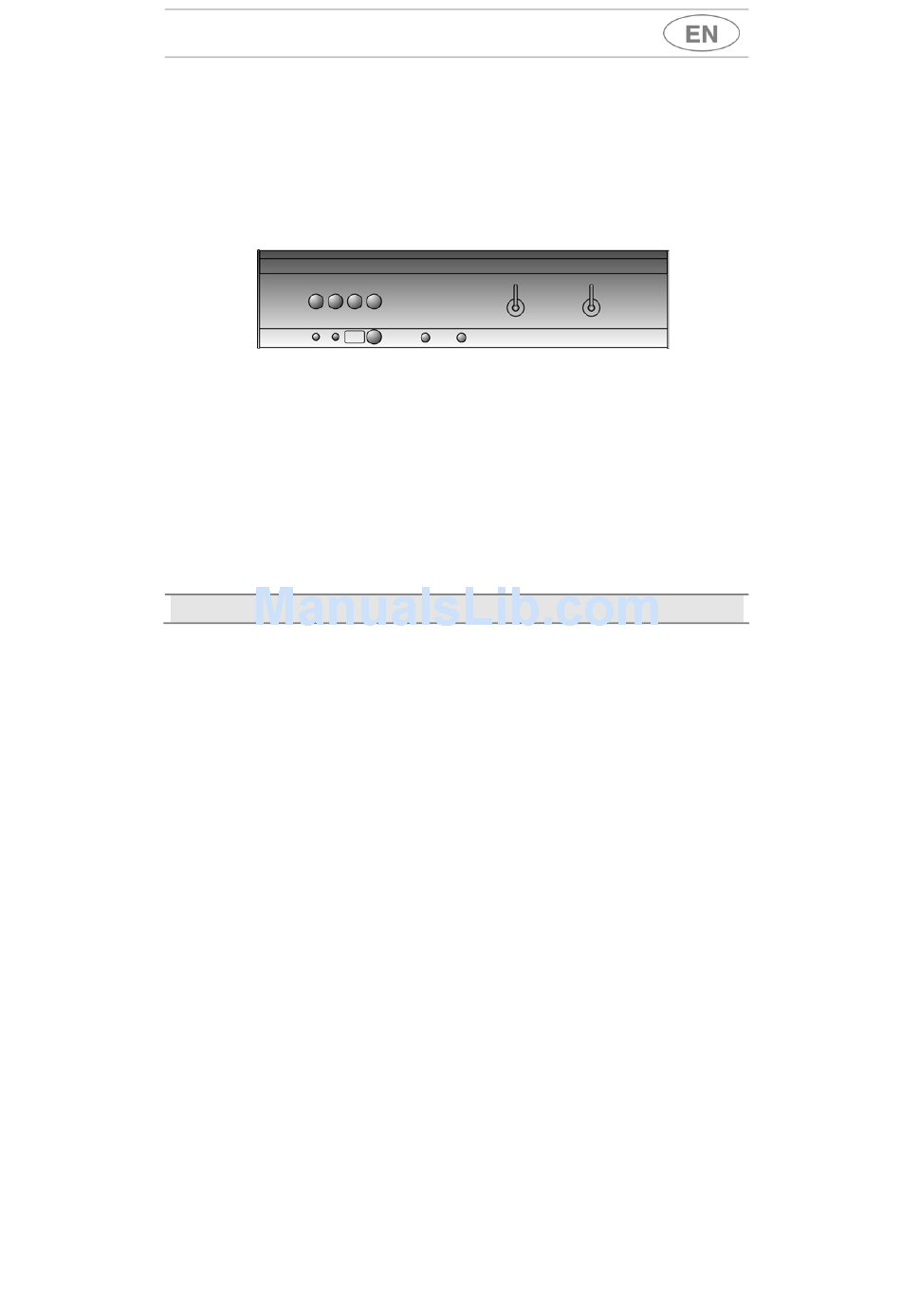

  • Page 1 INSTRUCTION MANUAL...
  • Page 2 Contents Description of the controls ________________________________ 18 Troubleshooting ________________________________________ 28 Thank you for choosing one of our products. You are advised to read this manual carefully; it contains all the information you need about the right conditions for the proper, safe use of your dishwasher.
  • Page 3 User instructions 1. Description of the controls 1.1 Front panel All the dishwasher's controls and indicators are located on the front panel. Programming and option selection are only possible with the door closed. WASHING PROGRAM SELECTOR ON/OFF SELECTOR START/PAUSE BUTTON PROGRAM DELAY BUTTON ½...
  • Page 4 User instructions SETTING THE WASHING PROGRAM To select the most suitable washing program, refer to the table below which indicates the recommended washing according to dish type and the degree of soiling. Once the most suitable washing program has been selected using the table provided, turn the WASHING PROGRAM SELECTOR (1) to set the program required, placing it against the identification symbol or nummer.
  • Page 5 User instructions PROGRAM PROGRAM SEQUENCE INFORMATION PRE- WASH COLD DISPLAY WASH RINSE SOAK COLD DISH WARMER QUICK 38°C LIGHT 45°C 55°C (*) EN 50242 50°C COLD AUTO 40-50 55°C COLD AUTO 60-70 65°C COLD STRONG and FAST 65°C SUPER 45°C 70°C Only run the soak program with half loads.
  • Page 6 User instructions TABLE FOR CERTIFICATION BODIES Reference standard Reference program Load Type of detergent Amount of detergent Rinse aid setting LOWER BASKET The upper basket must be set in the low position. 1.3 Washing programs The dishwasher is equipped with a control panel and an INFORMATION DISPLAY (8), described in chapter "1.
  • Page 7 User instructions CANCELLING THE CURRENT PROGRAM To annul the current program, press the START/PAUSE button (3) for a few seconds, until the beep of confirmation is heard. At this point, to end the program, press the HALF LOAD (5) and START/PAUSE (3) buttons simultaneously.
  • Page 8 User instructions HALF-LOAD FUNCTION (available in all programs except the soak program) This function is recommended for loads of up to 7 place-settings, and cuts down on the use of water and electricity. It can be selected using the HALF LOAD button (5) and there are three different options: pressing the button just once selects the top basket (confirmed by the U symbol in the top of the display);...
  • Page 9 User instructions DELAYING THE PROGRAM (available in all programs except the soak program) The PROGRAM DELAY button (4) can be pressed to delay the start of the washing program by up to 12 hours. This means that the dishwasher can be operated at the time of day of your choice. Press the PROGRAM DELAY button (4) again;...
  • Page 10 User instructions "3/1" OPTION BUTTON (available in all programs except the soak program) By pressing the button (6) you activate the "3/1" option, confirmed when the relative light comes on. This option has been studied for the use of dishwashing powder or tablets with integrated substances in place of regenerating salt or rinse-aid known on the market as “3 in 1”...
  • Page 11 User instructions ADJUSTING THE WATER SOFTENING SYSTEM (available in all programs except the soak program) The dishwasher is equipped with an electronic device for adjusting the water softening setting according to the hardness of the water. To adjust the water softening setting, proceed as follows: •...
  • Page 12 User instructions STARTING THE DISHWASHER After correctly carrying out all the preceding operations, to start the dishwasher simply press the START/PAUSE button (3) for a few seconds, until the start cycle acoustic device sounds. The INFORMATION DISPLAY (8) will show the duration of the program in minutes.
  • Page 13 User instructions 2. Troubleshooting The dishwasher is equipped with a self-diagnostics system that is capable of detecting and signalling a number of possible faults. In the event of a fault or malfunction, before calling the After-sales service centre, we suggest that you first consult the troubleshooting guide below.
  • Page 14 User instructions FAULT The dishwasher fails to draw water. Check that: • the water supply tap is open; • the filter in the water intake hose is not clogged; • the water intake hose is not kinked or bent; Turn the dishwasher off and then on again, then press the START/PAUSE button (3) again.
  • Page 15 INSTRUCTION MANUAL...
  • Page 16 Contents Safety and operating instructions __________________________28 Installation and hook-up _________________________________31 Operating instructions ___________________________________35 Cleaning and maintenance _______________________________47 Thank you for choosing one of our products. You are advised to read this manual carefully; it contains all the information you need about the right conditions for the proper, safe use of your dishwasher.

  • Page 17: Safety And Operating Instructions

    Safety instructions 1. Safety and operating instructions THIS MANUAL FORMS AN INTEGRAL PART OF THE APPLIANCE: IT MUST ALWAYS BE KEPT INTACT TOGETHER WITH THE DISHWASHER. BEFORE USING THE APPLIANCE, CAREFULLY READ ALL THE INSTRUCTIONS CONTAINED IN THIS MANUAL. INSTALLATION MUST BE PERFORMED BY A QUALIFIED TECHNICIAN, IN COMPLIANCE WITH THE REGULATIONS IN FORCE.
  • Page 18 Safety instructions THIS APPLIANCE IS MARKED ACCORDING TO THE EUROPEAN DIRECTIVE 2002/96/EC ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE). BY ENSURING THIS PRODUCT IS DISPOSED OF CORRECTLY, YOU WILL HELP PREVENT POTENTIAL NEGATIVE CONSEQUENCES FOR THE ENVIRONMENT AND HUMAN HEALTH, WHICH COULD OTHERWISE BE CAUSED BY INAPPROPRIATE WASTE HANDLING OF THIS PRODUCT.
  • Page 19 Safety instructions DO NOT UNDER ANY CIRCUMSTANCES TOUCH THE HEATING ELEMENT IMMEDIATELY AFTER THE END OF A WASHING PROGRAM. OVER TIME, THE DISHWASHER HEATING ELEMENTS MAY CHANGE COLOUR, IN PART OR OVERALL. THIS IS PERFECTLY NORMAL AND DOES NOT IN ANY WAY AFFECT THE OPERATION OF THE APPLIANCE. DO NOT DRINK THE WATER RESIDUES WHICH MAY BE PRESENT INSIDE THE DISHES OR DISHWASHER AT THE END OF THE WASHING PROGRAM AND BEFORE THE DRYING CYCLE.

  • Page 20: Installation And Hook-Up

    Installation instructions 2. Installation and hook-up Remove the polystyrene basket retainers. Position the appliance in the desired place of installation. The back or sides of the dishwasher may be placed up against walls or other furniture units. If the dishwasher is installed near a heat source, fit the special insulating panel to prevent overheating and malfunction of the appliance.
  • Page 21 Installation instructions 2.1 Water supply connection Preventing the risk of clogging or damage: if the water pipe is new or has not been used for a long time, before connecting to the water supply check that the water is clear and free of impurities, to prevent damage to the appliance.
  • Page 22 Installation instructions 2.2 Electrical connection and precautions CHECK THAT THE VOLTAGE AND THE FREQUENCY OF THE MAINS MATCH THE RATINGS ON THE NAME PLATE OF THE APPLIANCE POSITIONED ON THE INNER EDGE OF THE DOOR. THE PLUG ON THE SUPPLY CORD AND THE CORRESPONDING SOCKET OUTLET MUST BE OF THE SAME TYPE AND MEET THE REGULATIONS IN FORCE.
  • Page 23 Installation instructions WHEN CLEANING AND MAINTAINING THE APPLIANCE: BEFORE CARRYING OUT ANY WORK, ALWAYS UNPLUG THE APPLIANCE FROM THE ELECTRICAL SUPPLY OR SWITCH OFF THE ALL-POLE DISCONNECTION DEVICE. FOR GREAT BRITAIN ONLY: THIS APPLIANCE MUST BE EARTHED. Fuse replacement If the mains lead of this appliance is fitted with a BS 1363A 13amp fused plug, to change a fuse in this type of plug use an A.S.T.A.

  • Page 24: Operating Instructions

    User instructions 3. Operating instructions Once the dishwasher has been correctly installed, prepare for use as follows: • Adjust the water softening system; • Add the regenerating salt; • Add the rinse aid and detergent. 3.1 Using the water softening system The amount of scale contained in the water (water hardness index) can cause whitish staining on the dry dishes, which...
  • Page 25 User instructions • Do not use table salt as it contains insoluble substances which, over time, may damage the water softening system. • When necessary, refill the regenerating salt container before starting the washing program. In this way, the excess saline solution will be immediately removed by the water;...
  • Page 26 User instructions ADDING THE RINSE AID The rinse aid helps the dishes dry faster and prevents the formation of scale deposits and staining; it is automatically added to the water during the final rinse cycle, from the container situated on the inner side of the door. To add rinse aid: •...
  • Page 27 User instructions ADDING THE DETERGENT To open the detergent dispenser cap, lightly press the button P. Add the detergent and close the cap carefully. During the washing cycle, the dispenser will be opened automatically. • When a program with hot prewash is selected (see program table), extra detergent must be placed in the cavity G/H (depending on models).
  • Page 28 User instructions • "3/1" Products If you wish to use detergents which already contain salt and rinse aid, check whether your dishwasher is fitted with the "3/1 option button" on the "Controls description" page and then refer to the section which explains how to use this function. If the button is not provided, we recommend the use of conventional products (separate detergent, salt and rinse aid), because with conventional washing cycles "3/1"...
  • Page 29 User instructions WARNING! • Make sure that the dishes are securely in place so that they cannot tip over or obstruct the rotation of the spray arms during the washing cycle. • Do not place very small objects in the baskets as these could fall and obstruct the spray arms or the wash pump.
  • Page 30 User instructions 3.4 Using the baskets The dishwasher has a capacity of 14 place-settings, including serving dishes. EN 50242 STANDARD LOADS FOR CERTIFICATION BODIES LOWER BASKET UPPER BASKET EN 50242 cycle test conditions: Lower basket: the grid "A" ("lower basket" section) must not be raised. Upper basket: on the left, there are two saucers underneath the cups.
  • Page 31 User instructions In the front there are one or two supports (depending on the models) for small plates (B). To use them, they have to be turned towards the front of the dishwasher. LOADING THE LOWER BASKET Carefully load flat plates, soup plates, dessert and serving dishes, positioning them vertically.
  • Page 32 User instructions CUTLERY BASKET Cutlery must be placed with the tips facing downward. Long items of cutlery (ladles, wooden spoons, kitchen knives, etc.), which might interfere with the upper spray arm must be placed in the upper basket, ensuring that knife tips do not project from the basket. The cutlery basket features an exclusive system of independent sliding tip-up supports, offering a series of combinations to allow optimum use of the space available.
  • Page 33 User instructions UPPER BASKET It is recommended to load the upper basket with small- or medium-sized items such as glasses, small plates, tea or coffee cups, shallow bowls and light objects made from heat resistant plastic. If the upper basket is used in the lowermost position, it can also be loaded with serving dishes, provided they are only slightly soiled.
  • Page 34 User instructions ADJUSTING THE UPPER BASKET Version A: the upper basket can be adjusted in two positions, according to the user’s needs and according to the height of the dishes in the lower basket. Proceed as follows. • pull out the right-hand basket guide •...
  • Page 35 User instructions Version C: the top basket can be set in three different positions on both sides. The rack must be level on both sides. To raise the basket lift it, pulling on the front edge (1), to the first or second catch depending on the height required.

  • Page 36: Cleaning And Maintenance

    User instructions 4. Cleaning and maintenance Before carrying out any work, always disconnect the appliance from the electrical power supply. 4.1 General warnings and recommendations Avoid the use of acidic or abrasive detergents. Clean the outer surfaces and door-lining of the dishwasher regularly using a soft cloth moistened with water or with a normal detergent suitable for painted surfaces.
  • Page 37 User instructions CLEANING THE FILTER UNIT • It is advisable to periodically inspect the centre filter C and, if necessary, to clean it. To remove the filter, grip the tabs, turn them anticlockwise and lift upwards; • push the centre filter D from the underside to remove it from the micro-filter: •...
  • Page 38 User instructions BEFORE STARTING THE DISHWASHER AFTER PROLONGED DISUSE: • Check that there are no deposits of sludge or rust inside the water pipe: if there are, allow the water to run from the water supply tap for a few minutes. •...
  • Page 39 User instructions If the dishes fail to dry or remain dull, check that: • there is rinse aid inside the special container; • the rinse aid dispenser setting is correct; • the detergent used is of good quality and has not lost its effectiveness (for example, through incorrect storage, with the box left open).
  • Page 40 Misurarel’altezzadelpannellocomandi;farecoinciderel’indicerelativo a talevaloreconilprofilosuperiored ellaporta inlegno;tracciare ilposizionamentodegliagganciporta. Measurerlahauteurdupanneaudecommandes;fairecoïnciderl’index relatifàcettevaleuravecleprofilsupérieur delaporteenbois;tracerlepositionnementdescrochetsdelaporte. DieHöhedesBedienfeldsmessen;DiediesemWertentsprechendeMarkierungmitdemoberenProfilderHolztürzurDeckungbringen;DiePositionderTüraufhängungenanzeichen. Meetdehoogtevanhetbedieningspaneel;laatdemarkeringdiebijdiewaardehoortovereenstemmenmethetbovensteprofielvandehoutendeur;tekendepositievandedeurhengselsaf. Medir laalturadelpaneldemandos;hacercoincidirelíndicecorrespondienteadichovalorconelperfilsuperiorde lapuertademadera;trazarelposicionamientodelasbisagrasdelapuerta. Meçaaalturadopaineldecomandos;façacomqueoindicadorrelativoaestevalorcoincida comoperfilsuperiordaportademadeira;marqueaposiçãodosganchosparaporta. ATTENZIONE: Montare la porta e regolarelatensione delle mollelaterali primadell’installazione. IMPORTANT: Doortemplate, donotdestroy. Fit door and adjust hinge tension before installation. ATTENTION: Apres montàgedelaporte,reglerlatension des ressortslateraux avant l’installation. NOTA: Solamentealcuni modellisonodotati diuno dei dispositivisotto illustrati.
