SereneLife Fodder SLAPF30 - Pet Feeder Manual

Key Features

Features

• Simple Electronic Plug-in Design
• Programmable Automatic Feeder Dispenser
• Ensures an Optimal Feeding Schedule & Weight Control
• Built-in Microphone & Speaker for Voice Recording
• Playback a Personalized Message to Announce Feeding Time
• Adjustable Pet Food Dispense Amount & Daily Dispense Frequency
• Digital LCD Display Screen
• Front Panel Button Control Center
• Sleek & Rounded, Modern-Style Housing
• Close-Fitting Lid Keeps Pet Food Fresh Longer
• Selectable Dispensing Modes: Manual / Automatic
• Large Capacity Pet Food Hopper Bin for Multiple Feedings
• Stain-Resistant & Easy-to-Clean
• Certified Pet-Safe: Made of BPA-Free Plastic
• Perfect for Cats, Dogs & Other Furry Friends
• *For Use with Dry Pet Food / Kibble / Treats Only

How to assemble and use it

1. Assemble the bowl. Apply power, plug in the power adaptor.
   If you do NOT want to use power adaptor, you can charge to use battery.

2. Install batteries to the base (3 new "D" Cell, alkaline batteries. Batteries NOT included) make sure the power switch is at "On" location.

3. Setting the feeder per the following instruction


Quick Start Guide

1. Manual feeding Option and function check: press and hold "Manual" button for 3 second, the rotor will rotate 1 portion. Repeat it 2 more times, if each time, it will feed 1 portion. It means the machine with no problem.

2. To set current time: Press and hold "Time" and "Hour" button simultaneously, then click "Hour" button setting current hour (Note: when you click, always hold "Time" button). Press and hold "Time" and "minute" button, then click "minute" button setting minute.
   For example: Current time is 21:51

3. To set breakfast meal: Press and hold "Breakfast" and "ON/OFF" button to set feeding breakfast or not. Press and hold "Breakfast" and "Meal Size" button setting meal size. Press and hold "Breakfast" and "Hour" button to set breakfast hour, Press and hold "Breakfast" button and "Minute" button to set breakfast minute.

4. To set lunch and dinner meal and 4th meal: As above, press and hold "Lunch" and related button to se lunch meal. Press and hold "Dinner" and related button to set dinner. Same goes with 4th meal.

5. To set voice recording and play: Press and hold "MIC" button for 3 second till LCD flashing to record your voice. To check your voice, press and hold "Play" button for 3second.


Cleaning

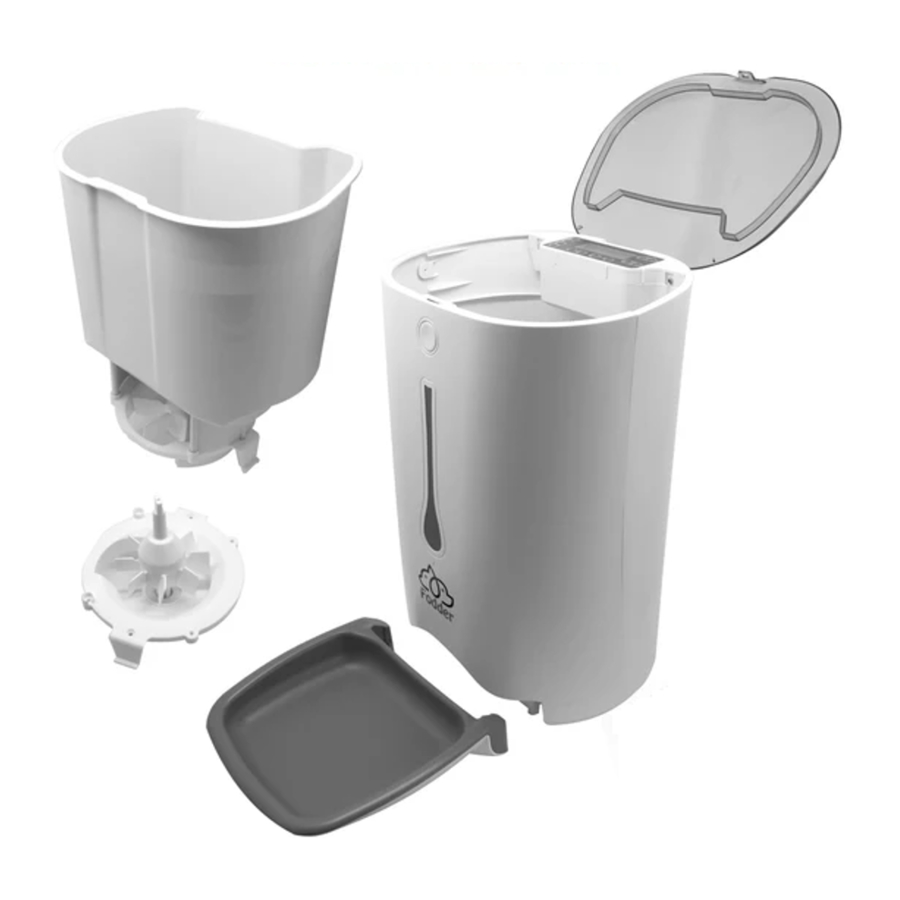

1. Disassembly the Hopper and Bowl
2. Hand clean with soft cloth and hand dry

Base unit should not be submerged in water at any time, that will damage electronic components and void the warranty.

Troubleshooting

The Low battery light is flashing

Change 3 new "D" Cell, alkaline batteries.
Normally 3 new "D" Cell, alkaline batteries can last around 1year.

• Requires 3 "D" size batteries. Batteries NOT included.
• Use only alkaline batteries.
• Estimated life of one set of batteries is one year.
• Keep fingers and hands clear of food wheel.
• Always turn unit OFF before cleaning.
• Check the low battery light frequently to be sure the feeder has power.
• Check the level of food frequently, to be sure the feeder is dispensing properly.

Note: SLAPF30 has 2 models (exchangeable food dispenser)

1. Model S: For Small and medium size pet.
   Programmable: 1 to 39 portions (5g -195g)
2. Model L: For medium and large size pet
   Programmable: 1 to 39 portions (10g -390g)

What's in the Box

• Digital Pet Food Dispenser
• Integrated Feeding Bowl
• Power Cable
• 1 x USB cable

Technical Specifications

• *Optional Battery Powered, Requires (3) x 'D' Batteries, Not Included
• Pet Food Storage Capacity: 7 Liters (7 lbs.)
• Dispense Sizes / Serving Portions: Small: 5g - 195g, Large: 10g - 390g
• Construction Material: Polypropylene, Engineered ABS
• Power Cord Length: 9.8' ft.
• Power Adapter Voltage: 5V/1A
• Power Supply: 120V-240V
• Dimensions (L x W x H): 9.8'' x 13.7'' x 15.3'' –inches
