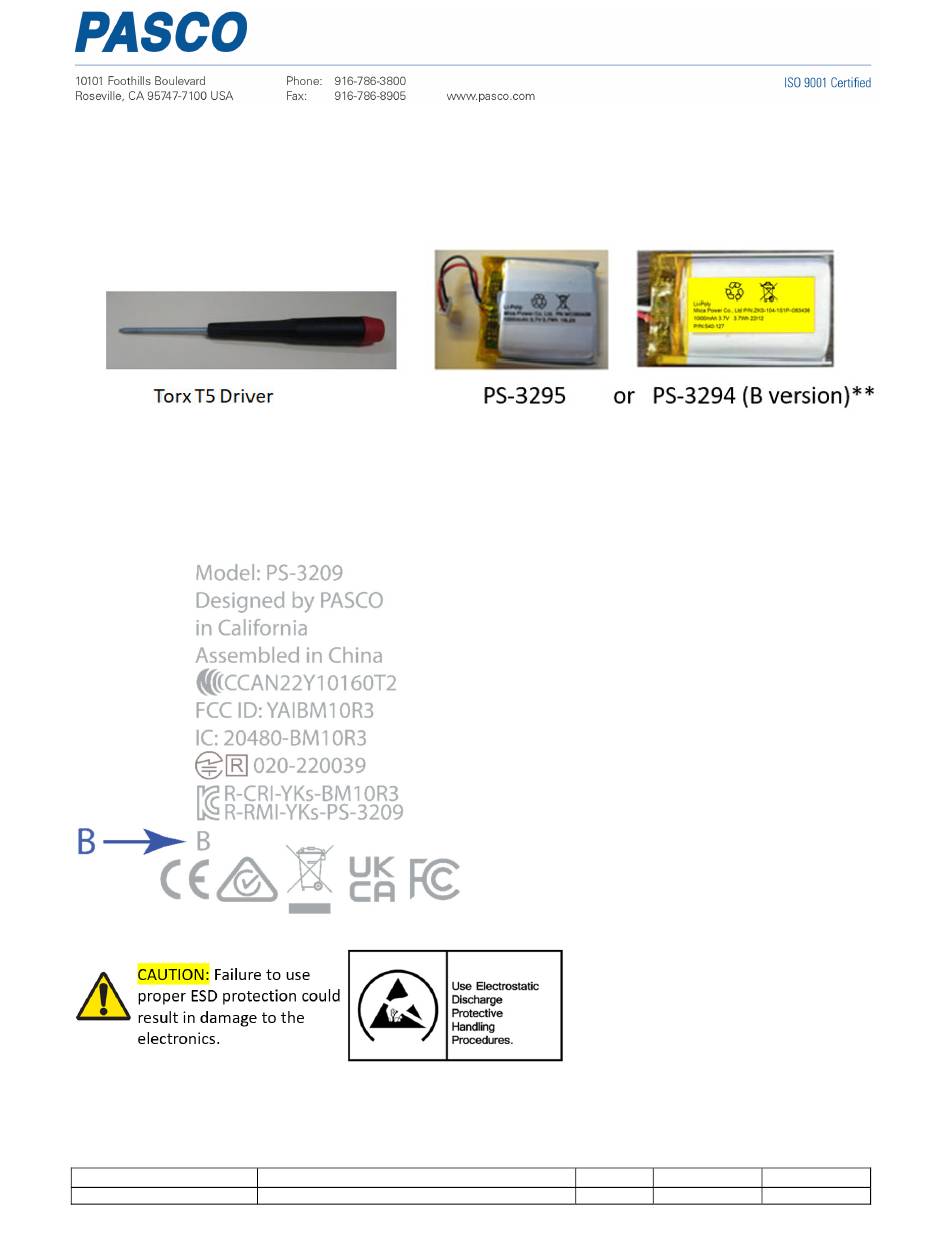

PS‐3209; Wireless Weather Sensor Battery Replacement Instructions
Battery part number PS‐3295; BATT LI 3.7V 1000mAH or PS‐3294; BATT LI 3.7V 1000mAH
Recommended Equipment: (PS‐3299; Battery Replacement Tool Set)
**Note: Check the back side of the plastic enclosure of the PS‐3200 you are using. If there is a
"B" in the printing as shown below, then the replacement battery model number is PS‐3294. If
there is no "B" on the printing, the replacement battery is PS‐3295.
PASCO Form Number
Description
Date
Revision
013-16107
PS-3209 Battery Replacement Instructions
11-29-22
Page 1 of 4
C
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for PASCO PS-3209
Summary of Contents for PASCO PS-3209
- Page 1 PS‐3209; Wireless Weather Sensor Battery Replacement Instructions Battery part number PS‐3295; BATT LI 3.7V 1000mAH or PS‐3294; BATT LI 3.7V 1000mAH Recommended Equipment: (PS‐3299; Battery Replacement Tool Set) **Note: Check the back side of the plastic enclosure of the PS‐3200 you are using. If there is a “B” in the printing as shown below, then the replacement battery model number is PS‐3294. If there is no “B” on the printing, the replacement battery is PS‐3295. PASCO Form Number Description Date Revision 013-16107 PS-3209 Battery Replacement Instructions 11-29-22 Page 1 of 4 ...
- Page 2 Step 1: Position the Sensor on a surface as shown. Note the quantity of the (9) Torx T5 Screws (circled). Step 2: Unscrew and remove the 9 Torx Screws with the T5 Screwdriver. Step 3: While holding both halves together, flip the product over looking at the front surface as shown. PASCO Form Number Description Date Revision 013-16107 PS-3209 Battery Replacement Instructions 11-29-22 Page 2 of 4 ...
- Page 3 Step 4: While holding the bottom with one hand, lift and rotate the top cover to the right as shown. Step 5: Remove the battery strap screws (2) with the T5 Screwdriver and remove the battery strap. Unplug the battery from its connector. Remove the battery and add the replacement battery at the location shown (see above picture) and position the wiring similar to the routing shown above. Plug the battery into its mating connector and reverse the steps noted above to complete the reassembly. PASCO Form Number Description Date Revision 013-16107 PS-3209 Battery Replacement Instructions 11-29-22 Page 3 of 4 ...
- Page 4 If you need further assistance, please contact Technical Support at support@pasco.com or through www.pasco.com on chat. To access chat through your browser, please enable all cookies on our website. PASCO Form Number Description Date Revision 013-16107 PS-3209 Battery Replacement Instructions 11-29-22 Page 4 of 4 ...
