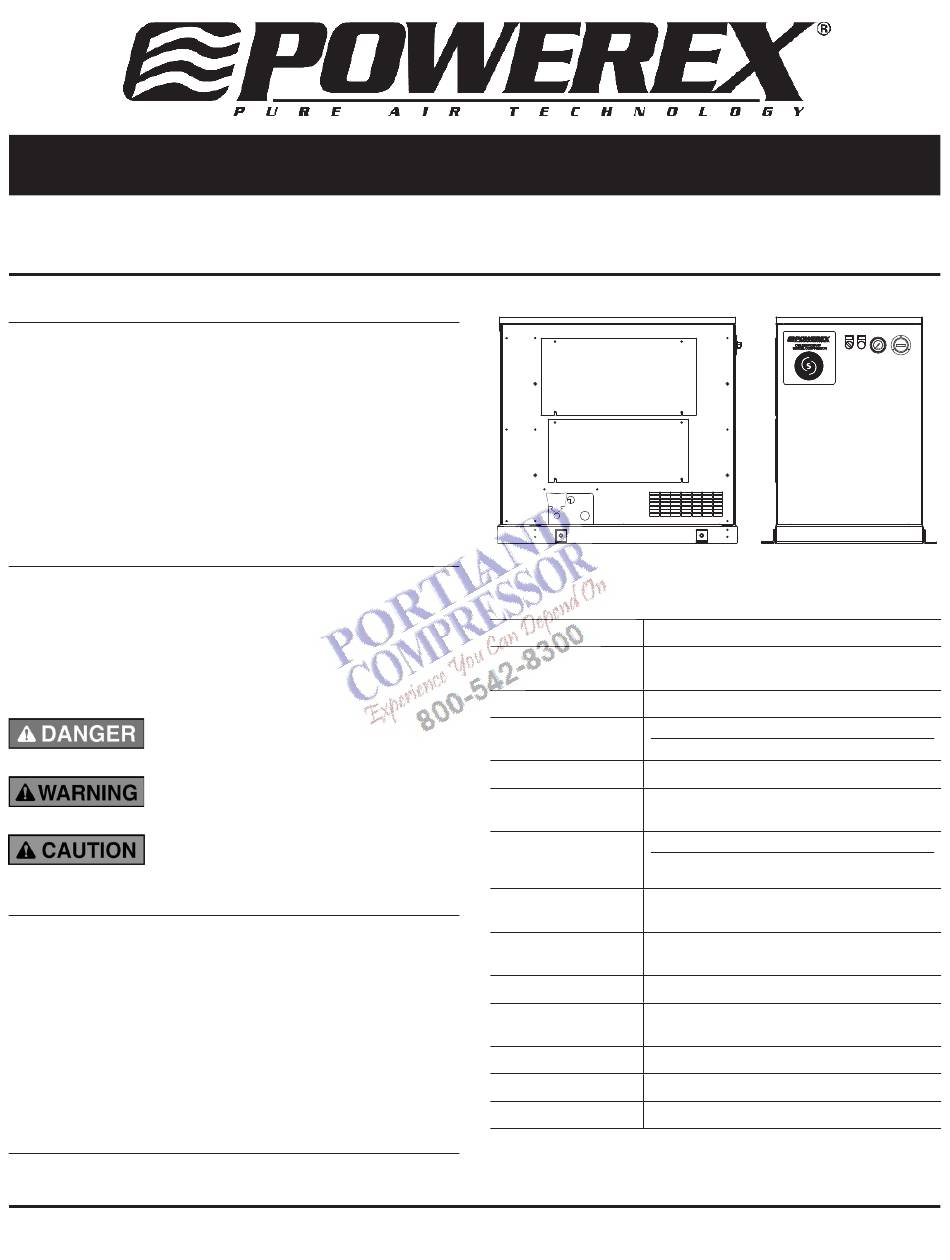

Powerex SES1308 Manual

Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself
and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage! Retain instruc-
tions for future reference.
Description
GENERAL
The Powerex Oilless Rotary Scroll Air Compressor has advanced
scroll compressor technology through the development of a
completely oilless compressor. The Powerex Scroll Compressor offers a
dynamically balanced air end which insures vibration-free operation.
The rotary design permits a continuous 100% duty cycle.
Other standard features on the Powerex Scroll Compressor include:
a Magnetic Starter, Motor Overload Protection, a High Temperature
Shutdown Switch, an Air Cooled Aftercooler and a Single Phase or
Three Phase 4 Pole ODP motor.
Safety Guidelines
A SEPARATE SAFETY BOOKLET IS PROVIDED ALONG WITH THIS
MANUAL. READ AND UNDERSTAND The SAFETY BOOKLET.
This manual contains information that is very important to know
and understand. This information is provided for SAFETY and to
PREVENT EQUIPMENT PROBLEMS. To help recognize this information,
observe the following symbols. MAKE SURE EVRYONE OPERATING OR
SERVICING THE COMPRESSOR READS AND UNDERSTANDS ALL The
INFORMATION PROVIDED.
Danger indicates an imminently
hazardous situation which, if not avoided, WILL
result in death or serious injury.
Warning indicates a potentially
hazardous situation which, if not avoided, COULD
result in death or serious injury.
Caution indicates a potentially
minor or moderate injury.
Installation
INSTALLATION SITE
1. The scroll compressor must be located in a clean, well lit
and well ventilated area.
2. The area should be free of excessive dust, toxic or flammable
gases, moisture, water, and direct sunlight.
3. Never install the compressor where the ambient temperature is
o
higher than 104 F or where humidity is high.
4. Clearance must allow for safe, effective inspection and
maintenance. 20 inches of clearance for sides is recommended.
Installation (Continued)
5. If necessary, use metal shims or leveling pads to level the
compressor. Never use wood to shim the compressor.
Powerex • 150 Production Drive • Harrison, OH 45030 • USA
1-888-769-7979 • www.powerexinc.com

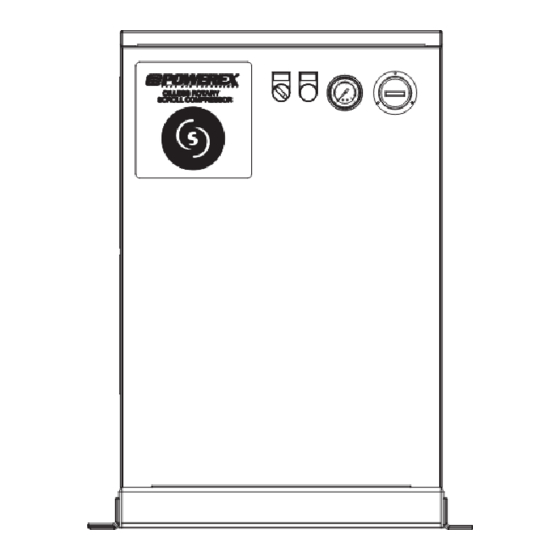

2 HP - 5 HP Scroll Enclosure Air Compressors
WARNING
DRAIN MOISTURE FROM
TANK EVERY DAY TO
PREVENT
TANK
CORROSION
Specifications
Product SES Series Powerex Simplex Air Compressors
Performance See Page 2
Specifications
Lubrication Grease-filled Bearing
Operating Voltages 1Ø
3Ø
Compression Cycle Scroll
Motor Overload IEC Motor Overload Relay
Protection
Pressure Settings Cut-In: 95 psig
Cut-In: 115 psig
Overpressure ASME Safety Valve Factory Set and Sealed
Protection
Outlet Air 3/8 inch NPT
Connections
Tank Size 13 Gallon ASME Rated 175 psig
California Ordinance Meets Requirements of this Ordinance
462 (L) (2)
Tank Isolation Standard All Units
Drive 3V Belt
Control Panel UL508A Listed
80
6
4
8
2
10
0 11
kpa
psi
230 Volts, 60 Hz; 230 Volts, 50 Hz
208-230/460/575 Volts, 60 Hz
Cut-Out: 115 psig
Cut-Out: 145 psig
(High Pressure Unit)
IN188616AV 6/20
