vox-C
BUS Outdoor siren
Installation manual
INTRODUCTION

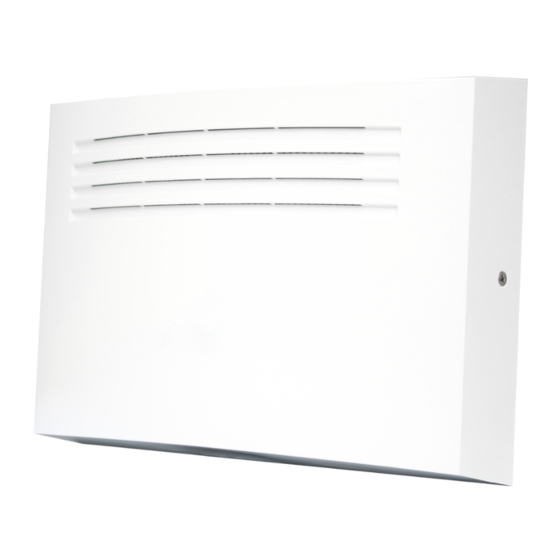

vox-C outdoor siren is a luminous and powerful alarm sounder, high sound emission with high output
magnetodynamic exponential horn which plays dual-tone sound; it is equipped with three high brightness
orange LEDs.
vox-C siren is powered by KS-BUS of lares 4.0 (13.8V) and by a 12V backup battery (not included) in case of
power failure; voltage current on BUS and battery charge level are constantly monitored, the values are
shown on real time section of BUS peripheral. In addition, the control panel is able to report both the
lowering charge level of battery and any battery failure.
vox-C siren is protected against opening or removal from wall (tamper protection) and BUS wire-cut.
In addition, it is equipped with a temperature sensor to display the temperature on display of Ksenia keypads
and lares 4.0 User App but also on the real time of vox-C BUS peripheral.
Resin insulation of electrical equipment and materials used guarantee resistance against bad weather
conditions, over time.
Easy to install because it is connected to lares 4.0 via the KS-BUS, vox-C is also easy to program as it allows
remote configuration.
code R30044.120en
www.kseniasecurity.com
ed. 05/2022
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ksenia vox-C
Summary of Contents for Ksenia vox-C
- Page 1 Resin insulation of electrical equipment and materials used guarantee resistance against bad weather conditions, over time. Easy to install because it is connected to lares 4.0 via the KS-BUS, vox-C is also easy to program as it allows remote configuration.
-
Page 2: Technical Characteristics
ABS bottom of case and external cover; • 1 temperature sensor to display the temperature on the Ksenia keypads and on lares 4.0 User App; • In case of power failure from KS-BUS, a 12V 2Ah lead backup battery (not included) supplies the siren, if the battery voltage drops below 9V the siren turns off;... -
Page 3: Description Of The Product
DESCRIPTION OF THE PRODUCT Dimensions 92 mm 310 mm Dimensions: 310 x 226 x 92 mm (LxHxW). Legend: [1] Screw to open the cover. code R30044.120en www.kseniasecurity.com ed. 05/2022... - Page 4 Back Legend: [1] Tamper anti-removal from the wall [2] Breakable holes for the cables passage [3] Back siren locking holes to the wall [4] Two screws to open the cover code R30044.120en www.kseniasecurity.com ed. 05/2022...
-
Page 5: Internal Cover
Internal cover TA TS TP + A B - 12V 2Ah Legend: [1] Undercover locking / opening screws. code R30044.120en www.kseniasecurity.com ed. 05/2022... -
Page 6: Inside View
Inside view + A B - 12V 2Ah Legend: [1] vox-C PCBA [2] 12V/2Ah lead battery (not included) [3] Magnetodynamic exponential speaker [4] Anti-opening tamper [5] Orange LEDs code R30044.120en www.kseniasecurity.com ed. 05/2022... -
Page 7: Installation
PCBA vox-C [1] Connection clamps to the KS-BUS of lares 4.0 [2] Connector for LED connection [3] Connector for battery and horn connection [4] TA connector TA for anti-opening and anti-removal INSTALLATION The siren has to be installed in a hardly accessible location to deter tamper attempts. The wall chosen must not have any depression or protrusion in order to avoid compromising the tamper protection function. - Page 8 4. match the holes to fix the bottom of the siren to the wall, with 6mm wall plugs and screws for wall plugs (included); 5. connect the vox connection clamps to the KS-BUS of lares 4.0, see figure below; TERMINALS DESCRIPTION KS-BUS Ksenia BUS terminals BUS supply Terminals of BUS supply 13.8V code R30044.120en www.kseniasecurity.com...
- Page 9 1. Once the installation is over, connect to the control panel through the WEB "Installer" application and open BUS PERIPHERALS menu -> SIRENS -> vox-C, the real time section will show a yellow icon because it is not registered in the system yet.
- Page 10 2. Enter the configuration option required in the same page, here below described: Maximum alarm time (min) = You can set the maximum time to the activation of the acoustic signal. When the time expires, the siren will stop even if it does not receive the reset command from the control panel.
- Page 11 LED outputs configuration From WEB "Installer" application, open SYSTEM -> OUTPUTS menu and configure the following options: • SOUND AND LEDS • SIDE LEDS Find how to program them and the description of its functionality below. • SOUND AND LEDS: When an alarm event occurs, this configuration triggers the sound (continuous or two-tones according to the configuration of the peripheral BUS) and the side LEDs flash synchronously and alternate with the flashing of the central LED, all orange.
- Page 12 • SIDE LEDS This configuration triggers the LEDs flash orange synchronously. Arming status mode = it follows the arming status of the partition (or partitions) to which it is associated. If even only one partition, among all to which the siren belongs, is armed, the output is activated and vice versa.
-
Page 13: Environmental Care
These products have been designed and made with the highest standards of quality and performance adopted by Ksenia Security. Is recommended that the installed system should be completely tested at least once a month. Test procedures depends on the system configuration. Ask to the installer for the procedures to be followed.
