Summary of Contents for IBA ibaPADU-8AI-U

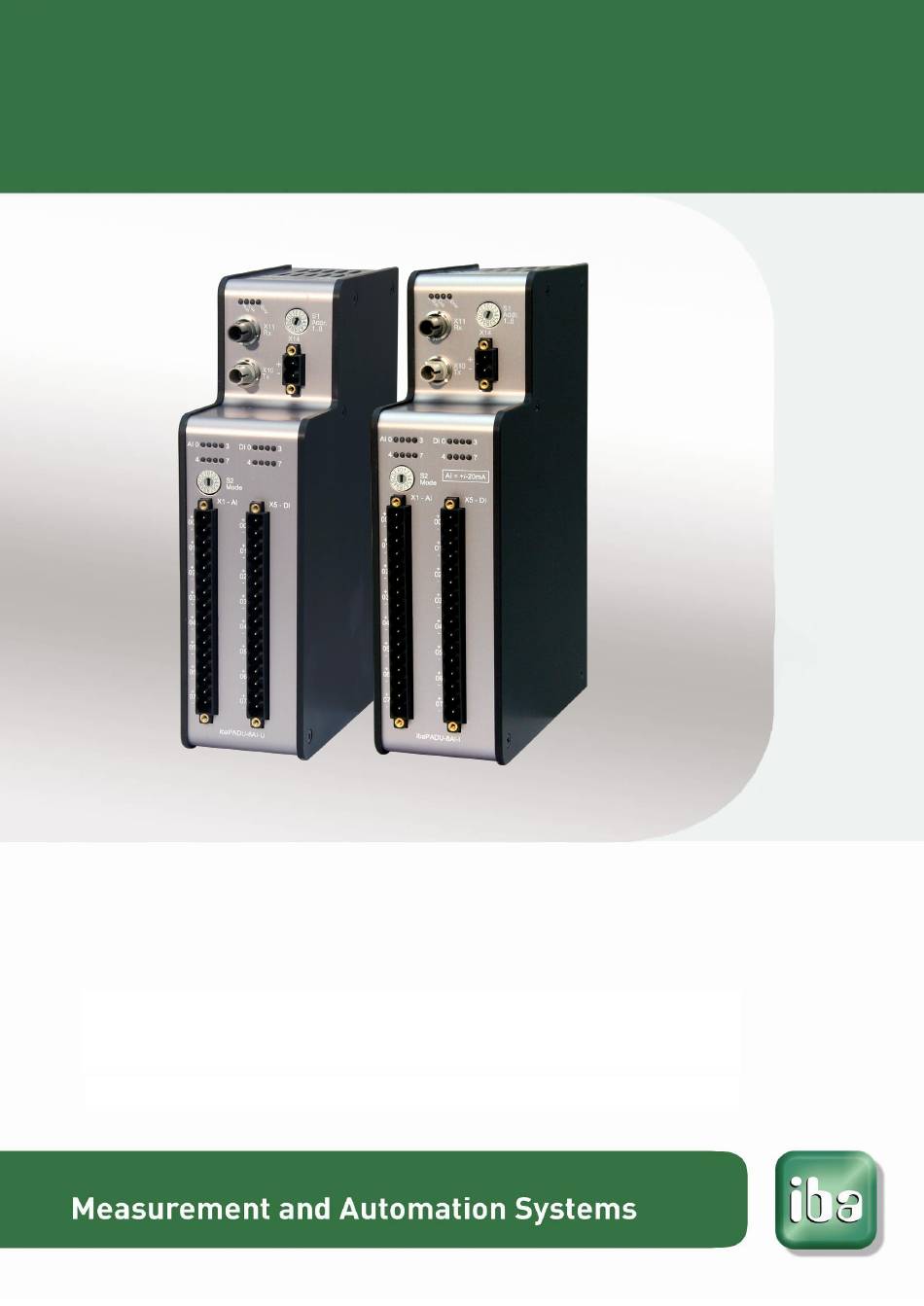

- Page 1 Manual ibaPADU-8AI-U/-8AI-I Parallel-Analog-Digital-Converter for 8 channels Manual Issue 1.4 Issue 1.4...
- Page 2 Inter- net. The current version is available for download on our web site http://www.iba-ag.com. Protection note Windows® is a label and registered trademark of the Microsoft Corporation. Other product and company names mentioned in this manual can be labels or registered trademarks of the corre- sponding owners.
-
Page 3: Table Of Contents
Manual Table of contents About this manual ..................... 5 Target group ....................5 Notations ......................5 Used symbols ....................6 Introduction ....................... 7 Scope of delivery ....................9 Safety instructions .................... 9 Designated use ....................9 Special advices ....................9 System requirements .................. - Page 4 Manual ibaPADU-8AI-U/-8AI-I Padu 8/-I – “Analog“ tab ................23 9.1.3 Padu 8 – „Digital“ tab ..................24 9.1.4 Technical Data ....................25 10.1 Dimension sheet .................... 27 Support and contact ..................28 Issue 1.4...
-
Page 5: About This Manual
Manual About this manual This manual describes the construction, the use and the operation of the devices ibaPADU-8AI-U and ibaPADU-8AI-I. Target group This manual addresses in particular the qualified professionals who are familiar with handling electrical and electronic modules as well as communication and measurement technology. -
Page 6: Used Symbols
Manual ibaPADU-8AI-U/-8AI-I Used symbols If safety instructions or other notes are used in this manual, they mean: The non-observance of this safety information may result in an imminent risk of death or severe injury: By an electric shock! Due to the improper handling of software products which are coupled to... -
Page 7: Introduction
The ibaPADU (Parallel Analog Digital Unit) device family is designed for data acquisi- tion of analog and digital signals. The new models ibaPADU-8AI-U and ibaPADU-8AI-I provide 8 digital inputs and 8 analog voltage or current inputs and replace previous de- vices. - Page 8 In brief: Replacement for the previous ibaPADU-8 devices ibaPADU-8AI-U 8 digital inputs and 8 analog voltage inputs Input level ±10 V, ±24 V or ±60 V Input impedance 100 kΩ or 1 MΩ (selectable) ...
-
Page 9: Scope Of Delivery
The device is electrical equipment. It may be used only in the following applications: Automation of industrial systems Measurement data logging and analysis Applications of iba software products (ibaPDA, ibaLogic etc.) The device is only to be applied as shown in the Technical Data chapter. Special advices... -
Page 10: System Requirements
1 free PCI/PCIe slot 512 MB RAM 4 GB free memory on the hard drive for measurement values On the iba website http://www.iba-ag.com, you find suitable industry-type and desktop-type PC systems. One of the following cards in the PC: ... -
Page 11: Mounting And Dismounting
Manual Mounting and dismounting Mounting 1. Locate the DIN rail mounting clip on the rear side of the device. Slowly push down and in so that the bottom part of the mounting clips snaps onto the bottom part of the rail and firmly fixes the device to the DIN rail. -
Page 12: Device Description
Manual ibaPADU-8AI-U/-8AI-I Device description Device view 7.1.1 Front view Operating state display Rotary switch S1 FO input (RX) X11 Power supply terminal X14 FO output (TX) X10 Status LEDs of analog channels Status LEDs of digital channels Rotary switch S2... -
Page 13: Indicating Elements
Error (red) Blinking Software error or Rotary switch S1 is set to an invalid address (0, 9…F) Hardware error Status of analog inputs of ibaPADU-8AI-U LED per Status/meaning Description (approx. values) channel Input range Input range Input range ±10 V... -
Page 14: Connections
The device requires an external DC 24 V ±10% power supply (unregulated). The oper- ating voltage should be run through the provided 2-pin Phoenix threaded coupling con- nector. If desired, you can order DIN rails or plug-in power supply units from iba. 7.3.3... - Page 15 Manual ibaPADU-8AI-U ibaPADU-8AI-I Pin assignment X1 Pin... Connection X5 Pin... Connection Analog input 00 + Digital input 00 + Analog input 00 Digital input 00 Analog input 01 + Digital input 01 + Analog input 01 ...
-
Page 16: Grounding Screw X29
Ethernet cable. The Ethernet interface is set as default to the IP address 192.168.1.1. Note Please contact iba regarding loading new firmware. You will get the required files and further information about the loading procedure. Important note In normal operation mode the Ethernet cable must not be connected. -
Page 17: Rotary Switch S2
Manual 7.4.2 Rotary switch S2 7.4.2.1 ibaPADU-8AI-U S2 is used to set the device mode (different measuring range, filters, input impedance): Mode (S2) Measuring Filter* input im- Replacement for device range pedance ±10 V 100 kΩ ibaPADU-8 ±10 V 1, 2 100 kΩ... -
Page 18: System Integration
Manual ibaPADU-8AI-U/-8AI-I System integration Homogeneous ibaPADU-8AI chain Up to 8 devices can be connected in a line topology. The outputs of the devices are to be connected with the input of the following devices until all devices are interconnected and the last device is connected to the ibaFOB card. All addresses (1...8) within a chain must be unique. -
Page 19: Ring Topology With Ibalogic-V3 (Asynchronous Mode)
Manual Ring topology with ibaLogic-V3 (Asynchronous mode) When used as replacement for previous devices ibaPADU-8AI supports also the func- tion described here. The sampling rate may be changed for the devices within one ring topology between 1.0 ms and 9.9 ms in steps of 100 s. This function can only be used with ibaLogic-V3 and with older ibaFOB cards (except ibaFOB-D). -
Page 20: Configuration
Manual ibaPADU-8AI-U/-8AI-I Configuration The description of the device configuration is based on ibaPDA-V6. Configuration in ibaPDA-V6 Set the desired device mode with the rotary switch S2 before initial operation, see also chapter 7.4.2 “Rotary switch S2”. The familiar program interface of the previous devices is retained for ibaPADU-8AI. - Page 21 3. Alternatively you can add the device manually. Right-click on the link of the ibaFOB-D card the device should be connected to. Select “Add module…” and then: - “Padu 8” for ibaPADU-8AI-U - “Padu 8-I” for ibaPADU-8AI-I. The device will be listed in the signal tree.
-
Page 22: Padu 8/-I - „General" Tab
The high and low end of the input range is displayed here and may be adjusted if needed (e. g. ibaPADU-8AI-U with input level 24 V or 60 V). The input range de- pends on the type of analog inputs (voltage or current) and the adjusted device mode (see chapter 7.4.2). -
Page 23: Padu 8/-I - "Analog" Tab
Manual Padu 8/-I – “Analog“ tab 9.1.3 Figure 7: Padu 8 – „Analog“ tab Name Assign a meaningful name to each signal and you can enter additionally two com- symbol in the field “Name”. ments when clicking on the ... -
Page 24: Padu 8 - „Digital" Tab
Manual ibaPADU-8AI-U/-8AI-I Padu 8 – „Digital“ tab 9.1.4 Figure 8: Padu 8 – „Digital“ tab Name, Active, Actual, see “Analog” tab. Issue 1.4... -
Page 25: Technical Data
Manual Technical Data Name ibaPADU-8AI-U ibaPADU-8AI-I Order no. 10.100000 10.100010 Description Input module with 8 digital Input module with 8 digital and 8 analog voltage voltage inputs and inputs 8 analog current inputs Analog inputs Number Design Galvanically isolated, single ended... - Page 26 4 LEDs for device status 8 LEDs for status of analog inputs 8 LEDs for status of digital inputs Rotary switches - ibaPADU-8AI-U S1: device address, S2: device mode - ibaPADU-8AI-I S1: device address, S2: without function Operating and environmental conditions...
-
Page 27: Dimension Sheet
Manual 10.1 Dimension sheet (Dimensions given in mm) Figure 9: Dimension sheet (Dimensions given in mm) Figure 10: Dimension sheet with cables Issue 1.4... -
Page 28: Support And Contact
Koenigswarterstr. 44 90762 Fuerth Germany Phone: +49 911 97282-0 Fax: +49 911 97282-33 Email: iba@iba-ag.com Contact: Mr. Harald Opel Regional and Worldwide For contact data of your regional iba office or representative please refer to our web site www.iba-ag.com. Issue 1.4...
