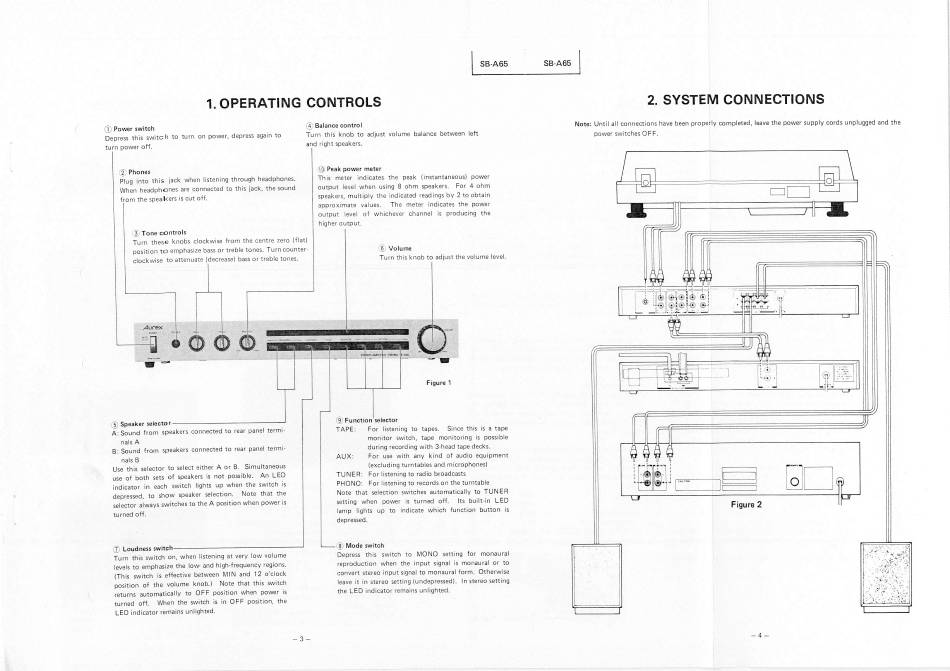

Toshiba SB-A65 Service Data page 3

NG CONTROLS
(4) Balance control
Turn this knob to adjust volume balance between left
and right speakers.
(1) Power switch
Depress
this switch
to turn
on power, depress again to
turn power off.
(0) Peak power meter
(2) Phones
—
into this jack when listening through headphones.
When headphones are connected to this jack, the sound
from the speakers is cut off.
(3) Tone controls
-oonals B
turned off.
(7) Loudness switch
approximate values. The meter indicates the power
output level of whichever channel is producing the
higher output.
(6) Volume
Figure 1
(9) Function selector
TAPE: For listening to tapes. Since this is a tape
monitor switch, tape monitoring is possible
during recording with 3-head tape decks.
AUX: For use with any kind of audio equipment
(excluding turntables and microphones)
TUNER: For listening to radio broadcasts
PHONO: For listening to records on the turntable
Note that selection switches automatically to TUNER
setting when power is turned off. Its built-in LED
lamp lights up to indicate which function button is
depressed.
(8) Mode switch
'Depress this switch to MONO setting for monaural
reproduction when the input signal is monaural or to
convert stereo input signal to monaural form. Otherwise
leave it in stereo setting (undepressed). In stereo setting
the LED indicator remains unlighted.
Turn this knob to adjust the volume level.
SB-A65
Figure 2
