Installation, Operation, and Maintenance Manual
BFRK 100
Bath Fan Retrofit Kit

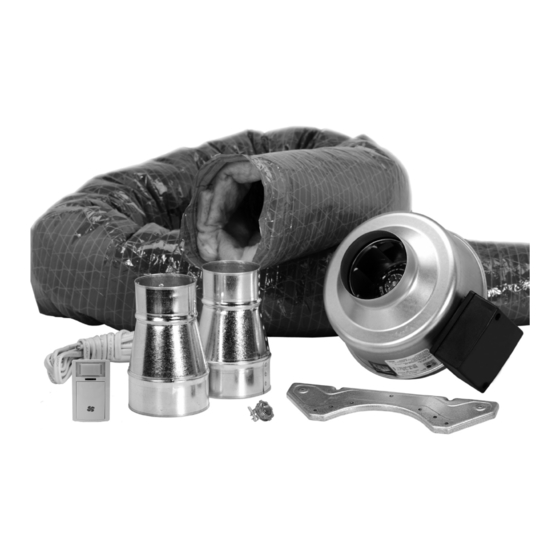

PARTS IN THE BOX
Inline Fan FG4, 1 pc
Mounting Bracket, 1 pc
DHS 05 Main Control, 1 pc
3" to 4" Adapters, 2 pcs
Wire Connectors. 2 pcs
Cable Restraint, 1 pc
8' Flexible Insulated 4" Duct, 1 pc
12' 14-2 Insulated Electrical Wire, 1 pc
Installation, Operation, and Maintenance
Manual, 1 pc
REGISTER* THIS PRODUCT TO
INCREASE YOUR PRODUCT
WARRANTY BY AN EXTRA YEAR
registration.fantech.app
Technical / Customer Support:
United States Tel.: 800.747.1762
* in USA only
Canada Tel.: 800.565.3548
Literature Item #: 450172
Rev Date: 2023-10-18
Advertisement
Related Manuals for SystemAir fantech BFRK 100
Summary of Contents for SystemAir fantech BFRK 100
- Page 1 Literature Item #: 450172 Rev Date: 2023-10-18 Installation, Operation, and Maintenance Manual BFRK 100 Bath Fan Retrofit Kit PARTS IN THE BOX Inline Fan FG4, 1 pc Mounting Bracket, 1 pc DHS 05 Main Control, 1 pc 3" to 4" Adapters, 2 pcs Wire Connectors.
- Page 2 Note Warning / Information Technical Practical tip Important information note Read and Save these instructions for future reference. Not for use with fan/light, heater/fan, or heater/fan/light combination units Warnings DO NOT CONNECT POWER SUPPLY until fan is completely installed. Make sure electrical service to the fan is locked in “Off” position 1.
-
Page 3: Installation
Installation Step 1 Switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. Step 2 In the bathroom, remove the inlet grille. Step 3 Unplug the motor and remove the motor plate. If convenient, you may want to remove the motor from the motor plate at this stage. - Page 4 Installation (Cont'd) Step 8 Using the wood screws provided, attach the mounting bracket to a support beam at the selected location. Fan mounting can be at any point along the duct and in any angle, however, vertical mounting is recommended to reduce condensation buildup in the fan. If a horizontal installation is necessary and condensation buildup may pose a problem, either wrap insulation around the fan or drill a 1/4"...
- Page 5 Notes...
- Page 6 Notes...
- Page 7 Notes...
- Page 8 Fantech reserves the right to make technical changes. For updated documentation please refer to www.fantech.net Fantech® Make a scan of the QR code above to access Fantech’s warranty in English, French, or Spanish. Includes a 5y warranty. If additional support is needed to retrieve the war- ranty, visit fantech.net;...
